Baichy Mobile Impact Crusher Plant Ships to Saudi Arabia

The Baichy wheel-type mobile impact crusher plant is designed for soft to medium-hard natural stone (e.g., limestone) and concrete recycling. It is mainly used for crushing and processing materials in highways, railways, and hydropower projects. Users can configure the plant based on raw material type, output requirements, and finished product specifications. Recently Baichy delivered 5 sets of mobile impact crusher plants to Saudi Arabia, where they are used as primary crushing units.

1. Key Technical Specifications (at a glance)

2. What This Mobile Plant Can Do and Cannot Do

This mobile impact crusher plant is suitable for processing soft to medium-hard materials such as limestone, dolomite, gypsum, concrete waste, and asphalt recycling. It is ideal for medium and fine crushing applications that require cubic-shaped output. Thanks to its wheel-type frame and optional diesel generator, the plant performs well on job sites that require frequent relocation, including road construction projects and urban demolition sites.

However, this plant is not suitable for certain conditions. It cannot be used as a primary crusher for hard rocks above 7 on the Mohs scale, such as granite or basalt. It is also not recommended for materials with moisture content exceeding 10%, as this may cause clogging in the screen and belt conveyor. Additionally, for highly abrasive materials with high silica content, the standard wear parts may wear out quickly unless upgraded.

3. How It Works (Step-by-Step)

The operation of the mobile impact crusher plant follows a simple and efficient process. First, the raw material is loaded into the vibrating feeder model ZSW9638, which ensures uniform feeding. During this stage, smaller particles fall through the gaps between the feeder bars, providing a pre-screening effect. Next, the material enters the PF1315 impact crusher, where it is crushed to medium or fine sizes. The impact crushing principle produces particles with a cubic shape, which is highly desirable for aggregate production. After crushing, the material is discharged onto the B800 vehicle-mounted belt conveyor. Finally, the conveyor transports the crushed material and can load it directly into trucks, eliminating the need for additional handling equipment and saving time on site.

4. Features and Practical Benefits

The mobile impact crusher plant offers several key features that bring practical benefits to users. First, its equipment configuration is flexible, meaning a single unit can operate independently, or it can be combined with coarse crushing equipment for larger operations. The optional diesel generator allows the plant to supply its own power, greatly improving adaptability on remote sites without grid access. Second, the plant has a high chassis, which enables it to travel on rough and harsh road environments commonly found at crushing sites. Third, the configured PF1315 impact crusher can crush stone on site and directly produce finished sand and gravel with ideal particle size. Fourth, the impact crushing principle delivers a better finished product particle shape, crushing directly to medium and fine sizes. This significantly improves the overall working efficiency of the mobile crushing station compared to jaw-based systems for suitable materials.

5. Main Machines in the Mobile Plant – Simple Introduction

Each mobile impact crusher plant shipped to Saudi Arabia includes the following key equipment:

Vibrating feeder ZSW9638

This feeder ensures uniform and continuous feeding of material into the impact crusher. It also has a built-in screening function: smaller particles fall through the gaps between its bars, reducing the load on the crusher and improving overall efficiency.

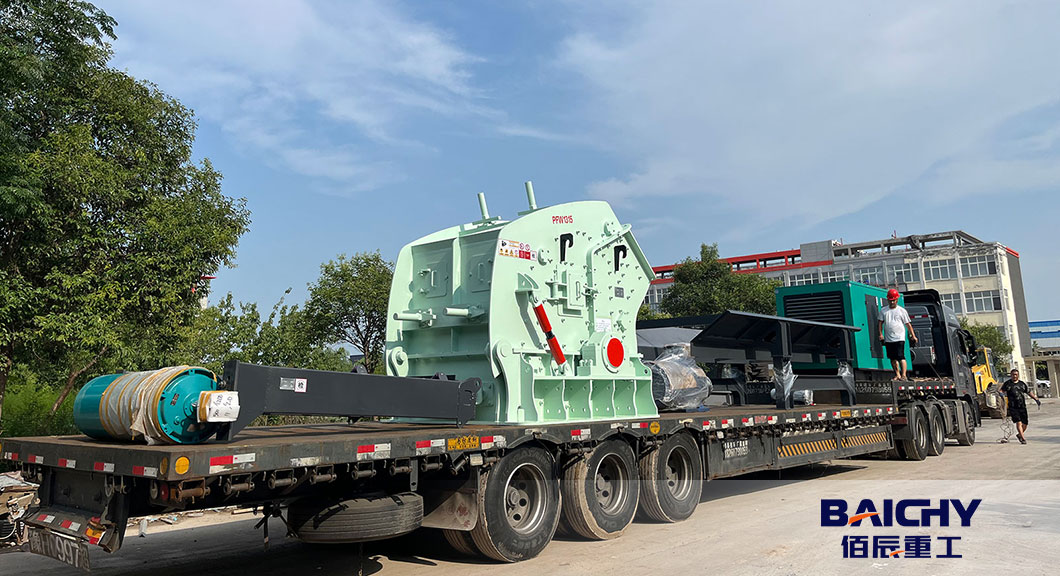

Impact crusher PF1315

This crusher is known for its large crushing ratio and ability to produce cubic-shaped particles. It is mainly used for medium and fine crushing. The discharge particle size can be adjusted, making it suitable for various specifications of finished aggregates.

Vehicle-mounted belt conveyor B800

This conveyor transports crushed material from the impact crusher to a discharge point. It can be positioned to load material directly into trucks, saving time and reducing the need for additional material handling equipment on site.

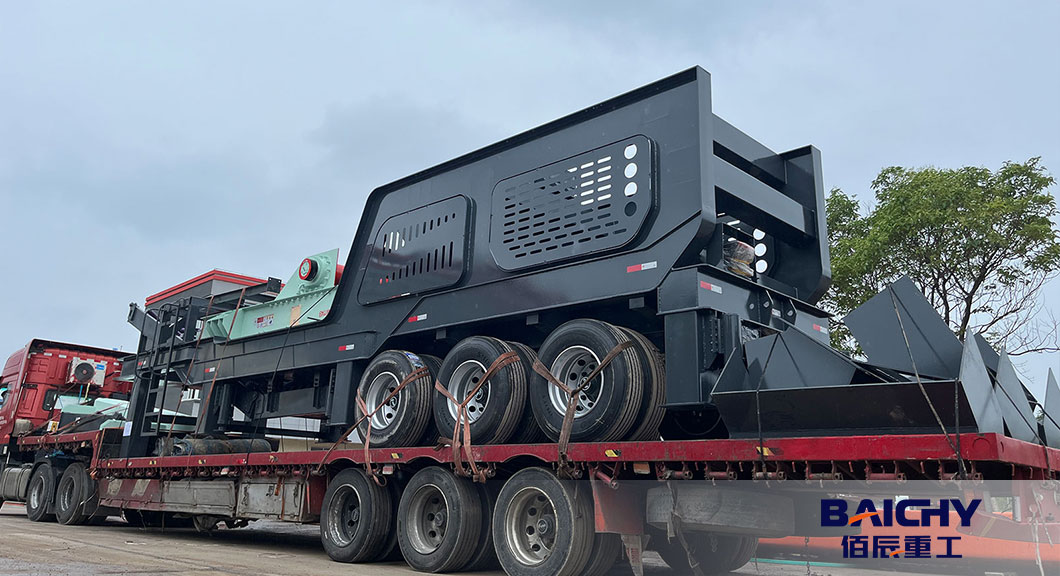

Tire-type traveling frame

The entire plant is mounted on a tire-type frame, which allows easy movement on ordinary roads. It has a small turning radius and can be quickly stationed at a new construction site. This gives the plant high equipment flexibility and saves time during relocation.

About Baichy Machinery

Baichy Machinery has a history of more than 20 years. It not only produces a full set of crushing and sand making equipment, but also provides EPC project general contracting services, including plant site selection and construction, production line design and installation, and production and operation technical training. Welcome to consult online to get your exclusive plant construction plan and price list.

Frequently Asked Questions (FAQ)

Q: Can this plant process concrete with rebar?

A: Not directly. Baichy recommends adding a magnetic separator or pre-processing to remove steel bars. Contact us for configuration advice.

Q: Can it work continuously at 45°C+ ambient temperature?

A: Yes, with the optional heavy-duty cooling system and proper generator sizing. The standard configuration requires adequate ventilation.

Q: How long is delivery to Saudi Arabia after order?

A: Based on the July 2024 shipment, typical lead time can be provided upon request. Contact Baichy for current schedules.

Q: What is the smallest output size achievable?

A: The discharge size is adjustable, generally down to 10 mm. Finer than that may require a secondary screen or VSI crusher.
