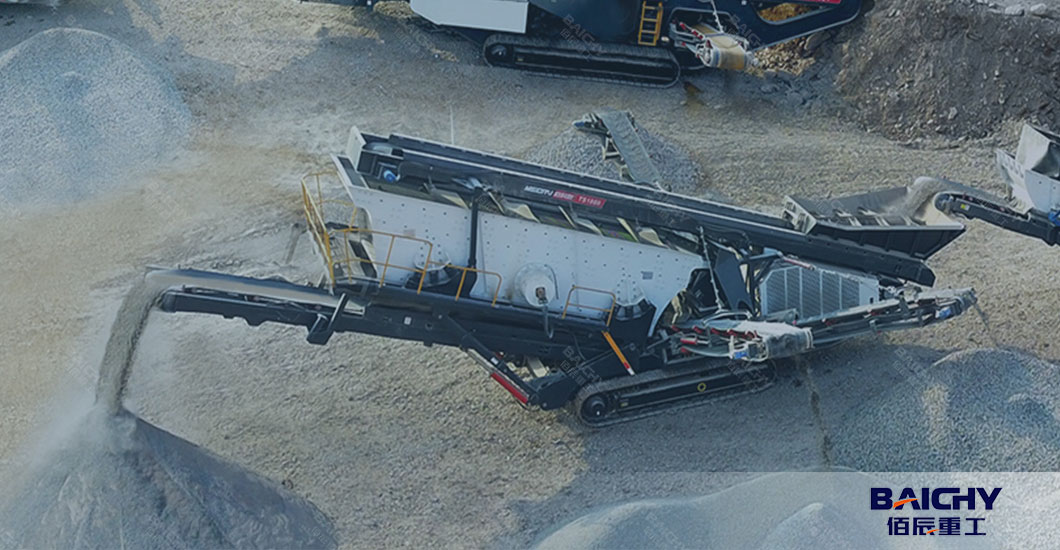

In construction, mining, and waste recycling, you need equipment that works fast, moves easily, and handles different materials. A crawler type mobile sorting plant is the perfect choice—it sorts limestone screenings, slag, mineral mixes, and crushed concrete quickly, and you can take it anywhere you need. Unlike fixed screening machines, this track-mounted system lets you move between job sites (like quarries or construction yards) without hassle, saving time and money. It’s designed to separate materials into three common sizes ( according to your requirement), so it fits most industrial needs. Whether you’re recycling old concrete or sorting mining materials, this mobile soring machine delivers reliable results with minimal setup.
Key Benefits of Crawler Mobile Sorting Line
1. Easy to Move & Set Up
This sorting line has a strong wheeled frame (up to 4m long) that’s easy to tow. You can relocate it between sites quickly, and it doesn’t need complex setup—just unfold the conveyors, connect power, and start working. The frame distributes weight evenly, so it’s stable even when processing lots of material.
2. Handles High Volumes Efficiently
It processes 50-350 tons of material per hour, making it great for big projects. The 4m³ loading hopper has tough, replaceable plates and shakes to keep material moving smoothly—no clogs, even with rough, abrasive materials. You can adjust the hopper and screen angles to get the right sort for your needs.
3. Reliable Conveyors & Safety Features
The conveyors use strong geared motors for steady performance. They come in different sizes: a 650mm-wide smooth belt for loading, 500mm-wide chevron belts for side transport (9m long), and a 1000mm-wide smooth belt for 0-8mm material (9m long). All conveyors let you adjust the angle and belt tightness. For safety, there’s a magnetic separator to remove metal (like rebar from concrete), emergency stop buttons, and alarms that sound before starting. The electrical parts are sealed (IP65) to keep out dust and rain, and portable grounding keeps operators safe.
4. Works in Any Condition
This line comes with LED lights for night work and a diesel generator with a preheater—so it runs even in cold weather. It’s built to last, and you get a 12-month warranty for peace of mind.
Success Story: Baichy Machinery in Russia’s Concrete Recycling
A client in Russia was seeking an efficient and flexible solution for screening and sorting crushed concrete, a challenging material known for its varied particle sizes and abrasive nature. Baichy Machinery supplied a wheeled mobile sorting line to a Russian construction company that needed to recycle 5,000 tons of old concrete. The goal was to turn the waste into clean aggregates (0-8mm and 8-16mm) for new roads and buildings, while removing metal.
The Baichy Machinery team provided a customized mobile sorting plant, meticulously designed to meet the client's specific requirements. The plant featured a robust loading hopper with wear-resistant plates, ensuring durability against the abrasive concrete. The mobile screening plant incorporated a high-efficiency double-deck vibrating screen, capable of accurately separating the crushed concrete into the desired fractions of 0-8mm, 8-16mm, and 16-63mm. The adjustable screen angle and conveyor inclinations provided the flexibility needed to adapt to different material compositions and output demands.
The client reported a significant increase in processing efficiency, achieving throughputs well. The quality of the sorted concrete aggregates was consistently high, leading to improved material value and reduced waste. Baichy Machinery's mobile screening plant proved to be a reliable, high-performance solution. Welcome to contact us and get best price for mobile soring machine.
People Also Frequently Asked For - FAQ
1. What are the main advantages of a crawler mobile sorting machine over a wheel-mounted one?
Answer: Crawlers offer superior mobility and stability on rough, uneven terrains like quarries due to better traction and weight distribution. They are ideal for challenging ground conditions.
2. How does a crawler mobile sorting machine handle different materials and sorting needs?
Answer: They are highly versatile, using interchangeable screen media and adjustable screen angles/conveyor speeds to sort various materials (aggregates, concrete, etc.) into specific fractions.
3. What kind of maintenance is typically required for a crawler mobile sorting machine?
Answer: Regular maintenance includes daily fluid checks, greasing, inspecting conveyor belts and screen media, and monitoring track wear. Following the manufacturer's service schedule is key.
