Turning 130 TPH of Dirty River PGS into High-Grade Sand and Aggregate

A recent client approached Baichy Machinery with a common but frustrating problem. Their quarry was rich in sand and gravel mix (PGS), but the material contained up to 20% sticky clay and淤泥. They were struggling to produce clean concrete sand, and their existing equipment kept clogging. They needed a solution that could handle 100–130 tons per hour of this dirty feed and output clean, sellable products.

The Solution: A Custom-Built, High-Scrubbing Workflow

Baichy’s engineers designed a fixed processing line focusing on high-intensity scrubbing and efficient gradation. The design philosophy was simple: remove the dirt early, crush the rock smartly, and recover every grain of sand.

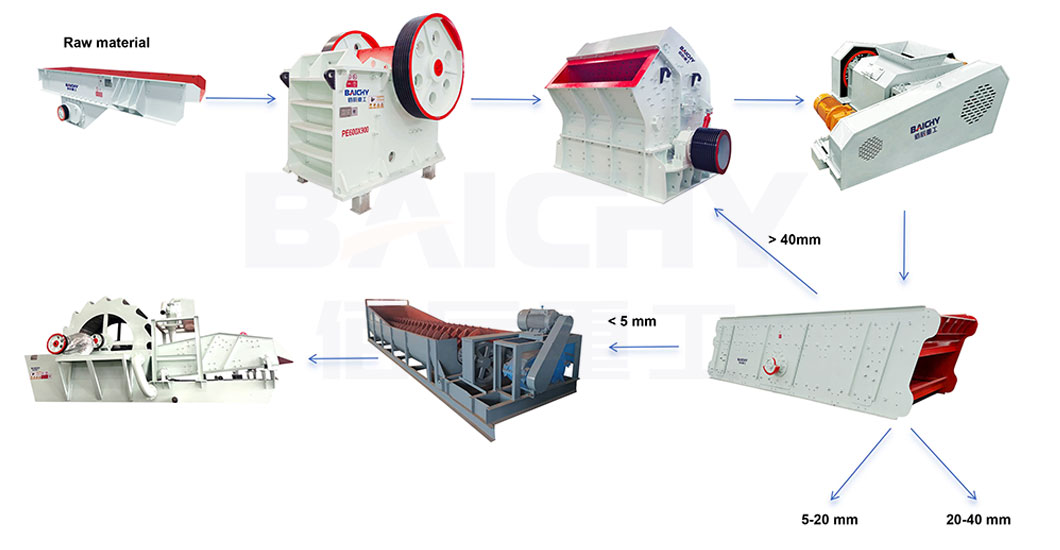

The layout consisted of eight key stages:

1. Scalping: A GZD-1100x4200 Vibrating Grizzly Feeder removed the sticky sub-60mm material immediately, protecting the crushers downstream.

2. Primary Crushing: A rugged PE-600x900 Jaw Crusher reduced the large cobbles.

3. Shaping: A PF-1214 Impact Crusher crushed the material further, ensuring the final gravel had a high-value cubic shape.

4. Sand Making: A 2PG-1010 double roller crusher milled the small stones into 0-5mm sand, keeping dust levels low.

5. Screening: A 3YK-1860 Vibrating Screen sorted the material into 0-5mm, 5-20mm, and 20-40mm fractions.

6. Intensive Washing: The 0-5mm sand and slurry entered a Log Washer. Here, the clay was vigorously broken down in a high-friction environment.

7. Final Rinsing: A Spiral Sand Washer rinsed the sand, carrying away the dirty water.

8. Recovery: A Hydrocyclone system or fine sand recycling machine was added to "mine" the waste water for any remaining fine sand, boosting overall yields.

The Result: From Waste to Wealth

The installation of the Log Washer and Fine Sand Recovery system was the game-changer.

1. High-Quality Output: The plant now produces 50-60 tons per hour of clean washed sand (0-5mm) with a fineness modulus of 1.5–2.5, perfect for local ready-mix concrete companies.

2. Clean Aggregates: It also produces 30-40 tons of clean 5-20mm and 20-40mm gravel, free from clay coatings.

3. Zero Waste: The fine sand recovery system captures an additional 10-15 tons of material daily that was previously lost to the settling pond. This directly adds to the bottom line.

Client Feedback:

"We were skeptical about processing this dirty river material, but the Baichy team designed a system that handles it perfectly. The log washer makes all the difference. We are now the only supplier in the area with truly clean sand."
