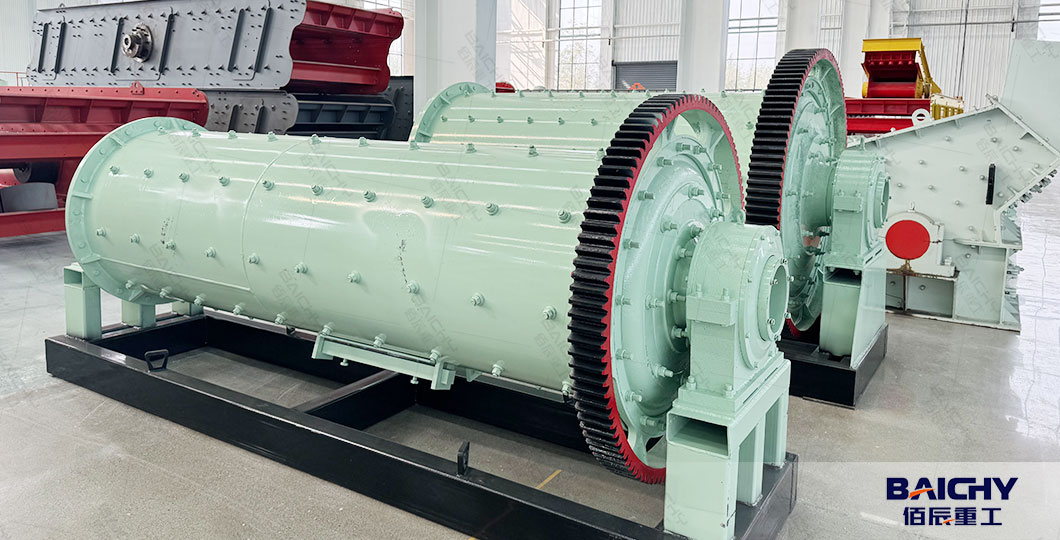

What Is Ball Mill?

A Mining Ball Mill is a crucial piece of equipment used in the mineral processing industry to grind ores and other materials into fine powders. This grinding process, known as comminution, is a key step in liberating valuable minerals from the waste rock (gangue), making it possible to separate and concentrate the desired metals.

Core Working Principle Of Ball Mill

The fundamental principle of a ball mill is simple yet effective:
1. Rotation: A hollow cylindrical shell, mounted horizontally, rotates on its axis.
2. Grinding Media: The shell is partially filled with loose grinding media, typically made of high-carbon steel or ceramic materials. These are the "balls," which give the mill its name.
3. Cascading and Cataracting: As the mill rotates, the grinding media are lifted up the rising side of the shell. Upon reaching a certain height, they cascade (tumble over each other) or cataract (fall freely) onto the material below.
4. Impact and Abrasion: The ore feed is introduced into the rotating drum. The size reduction happens through two primary mechanisms:
   ● Impact: When the balls fall from a height, they strike the ore particles with great force, breaking them.
   ● Abrasion: As the balls roll and slide against each other and the liner of the mill, they crush and grind the particles trapped between them.

The ground product, now a slurry (if wet grinding) or a fine powder (if dry grinding), exits the mill through discharge grates that prevent the grinding media from leaving but allow the processed material to pass.

Key Components Of Ball Mill

A standard mining ball mill consists of several essential parts:
1. Cylindrical Shell: The main rotating drum, often lined with replaceable wear-resistant liners to protect the shell.
2. Grinding Media: The balls, which are the primary tools for comminution. Their size and material composition are critical for efficiency.
3. Drive System: A powerful motor, gearing (like a pinion and girth gear), and bearings that rotate the shell at the required speed.
4. Feed and Discharge Ends: Hoppers and trunnions for introducing the raw ore and removing the ground product.
5.Liners: Protective plates inside the shell that also help lift the grinding media.

Types of Ball Mills

Ball mills are categorized based on their operation and discharge mechanism:
Wet-Grinding Ball Mill: This is the most common type in mining operations. Water is added to the ore feed, creating a slurry. Wet grinding is more efficient, suppresses dust, and is better suited for the subsequent flotation or leaching processes.
Dry-Grinding Ball Mill: Operates without water. It is used when the subsequent process requires a dry powder or where water is scarce. It is generally less efficient and can cause more dust.
Other common variations include:
Grate Discharge Mill: Uses a grate at the discharge end to hold back the grinding media.
Overflow Mill: The product overflows a discharge trunnion, suitable for finer grinding.

Why are Ball Mills so Important in Mining?

● Liberation: They are the primary method for reducing rock to a fine enough size that individual mineral grains can be separated from the gangue.
● High Capacity: They can process very large volumes of ore continuously.
● Reliability: Their simple design makes them robust and reliable for 24/7 operation.
● Versatility: They can handle a wide variety of ores (hard and abrasive or soft) and can achieve a very fine grind if necessary.

Key Performance Parameters

Operators control a ball mill's performance by adjusting:
1. Mill Speed: Usually a percentage of the "critical speed" (the speed at which the media centrifuge).
2. Grinding Media Size and Type: Optimized for the specific ore characteristics.
3. Mill Loading: The volume of the mill filled with media and ore.
4. Pulp Density: The solid-to-water ratio in wet grinding.

Henan Baichy Machinery Equipment Co., Ltd. is a mining machinery manufacturer integrating R&D, production and sales. Ball lmill is one of its core production equipment. It has mature technology and processes, complete models and configurations, and technical engineers can tailor production line configuration plans for you. If you are interested in the ball mill, please click on the online consultation to get solution and price now. Baichy Machinery is dedicated to serving you 24 hours a day!
