What Is A Sand Processing Plant?

A sand processing plant is a specialized facility designed to extract, crush, screen, wash, and refine raw sand or stone materials into high-quality, graded sand products suitable for various industrial applications. These plants transform natural sand (from rivers, quarries, or beaches) or crushed stone (e.g., granite, limestone) into processed sand with consistent particle size, shape, and purity, meeting strict industry standards.

Core Functions of a Sand Processing Plant

The primary goal of a sand processing plant is to produce clean, well-graded sand by removing impurities (e.g., clay, silt, organic matter) and adjusting particle size distribution. Key functions include:
- Breaking large stone or raw sand into smaller fragments (if needed).
- Separating sand into specific size fractions (e.g., fine sand: 0.15–0.3mm; medium sand: 0.3–0.6mm; coarse sand: 0.6–1.2mm).
- Sand washing machine to eliminate dust, clay, and contaminants, improving sand quality.
- Dewatering to reduce moisture content, making the sand ready for storage or transportation.

Typical Configuration of a Sand Processing Plant

A standard sand processing plant consists of several interconnected stages and equipment, tailored to raw material type and desired end products:

1. Feeding System

- Vibrating Feeder: Uniformly feeds raw materials (natural sand or crushed stone) into the processing line to ensure steady workflow and prevent equipment overload.

2. Crushing Stage (If Using Stone as Raw Material)

- Jaw Crusher (primary crushing): Breaks large stones (up to 500mm) into smaller chunks (50–100mm).

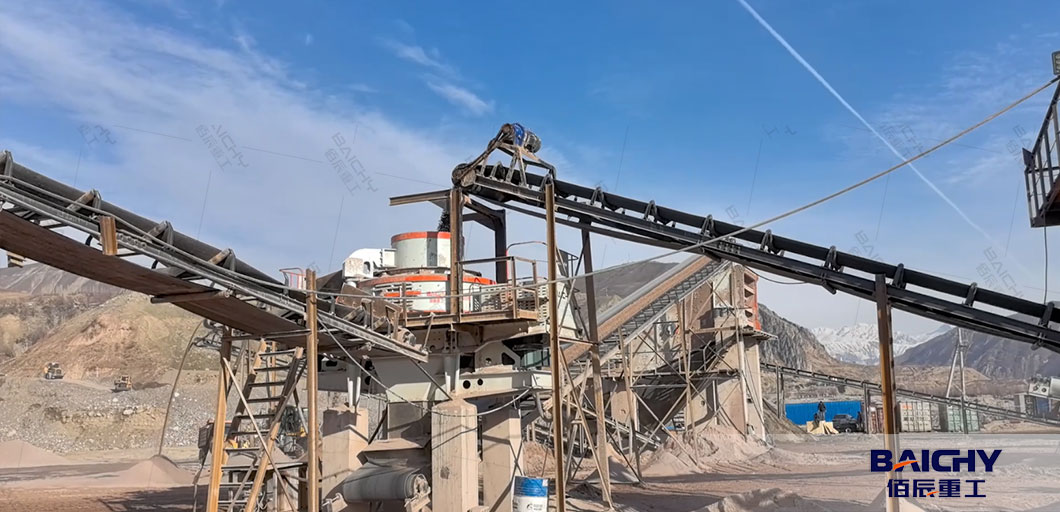

- Sand Making Machine (Vertical Shaft Impact Crusher, VSI): Converts crushed stone into sand-sized particles (0–5mm) with cubical shapes, ideal for construction.

3. Screening Stage

- Vibrating Screen: Separates sand into different size grades (e.g., 0–2mm, 2–5mm) by passing it through mesh screens. Oversized particles are recycled back to the sand making machine for reprocessing.

4. Washing Stage

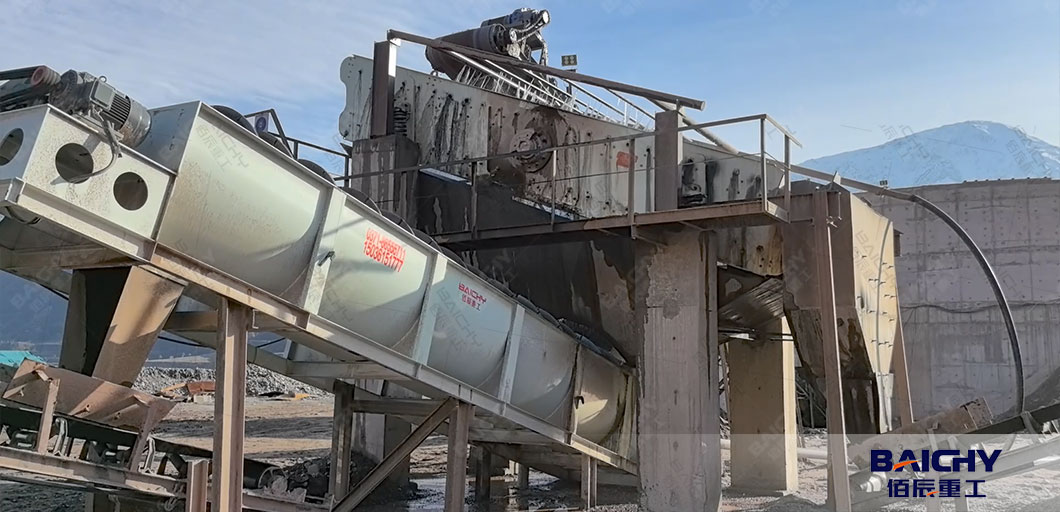

- Sand Washer: Removes impurities like clay, silt, and organic matter from sand using water. Common types include spiral washers, wheel washers, and bucket washers, which scrub and rinse the sand to improve purity.

5. Dewatering Stage

- Dewatering Screen/Vibrating Dewaterer: Reduces moisture content in washed sand (typically to 8–12%) by vibrating to separate excess water, making the sand easier to store and transport.
- Filter Press (optional): For high-purity requirements, removes residual water from fine sand using pressure filtration.

6. Conveying and Storage

- Belt Conveyors: Transport materials between processing stages (e.g., from crusher to screen, or washer to dewaterer).

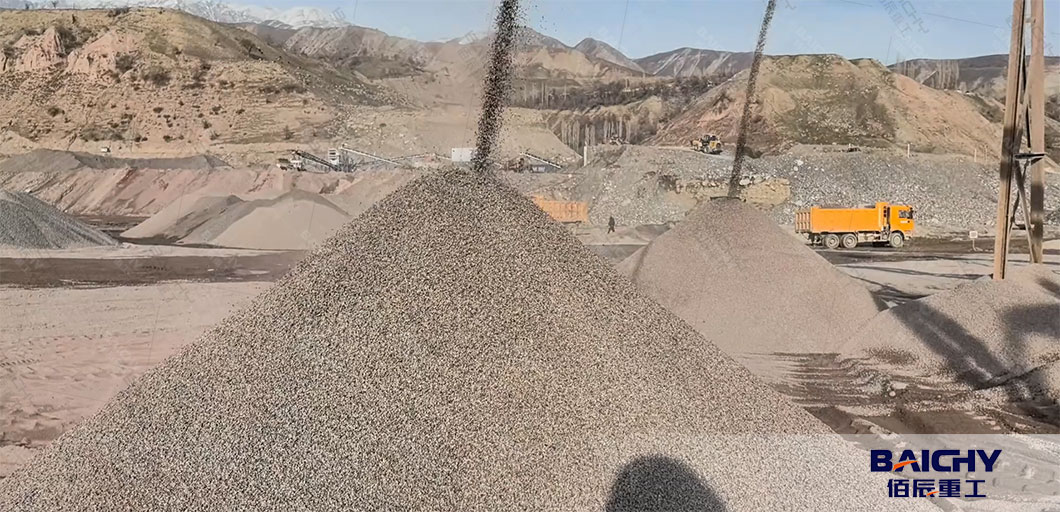

- Storage Silos/Stockpiles: Store finished sand products (e.g., concrete sand, mortar sand, or asphalt sand) for bulk distribution.

Types of Sand Processed

Why Sand Processing Plants Matter

Natural sand sources are often depleted or contain excessive impurities, making processed sand a reliable alternative. These plants ensure:
- Consistency: Uniform particle size and shape, improving the strength of concrete or asphalt.
- Purity: Reduced clay, silt, or organic matter, meeting industry standards (e.g., ASTM, BS).
- Sustainability: Efficient use of raw materials (e.g., crushing waste rock into sand) and water recycling in washing stages.

A sand processing plant transforms low-value raw sand into premium-grade material for critical industries. Whether you need a compact mobile sand making plant or a full-scale stationary facility, choosing the right setup depends on:

✔ Material type (clay content, hardness)
✔ Production goals (volume, sand specs)
✔ Budget & operational flexibility
