Raymond Roller Mill YGM95: A Comparative Analysis with Other Zeolite Powder Making Machines

Introduction to Zeolite Powder Making Machines

Zeolite, a versatile mineral with applications in agriculture, water treatment, and industrial catalysis, requires precise grinding to unleash its full potential. A variety of machines are available for this task, each with its own set of features and capabilities.

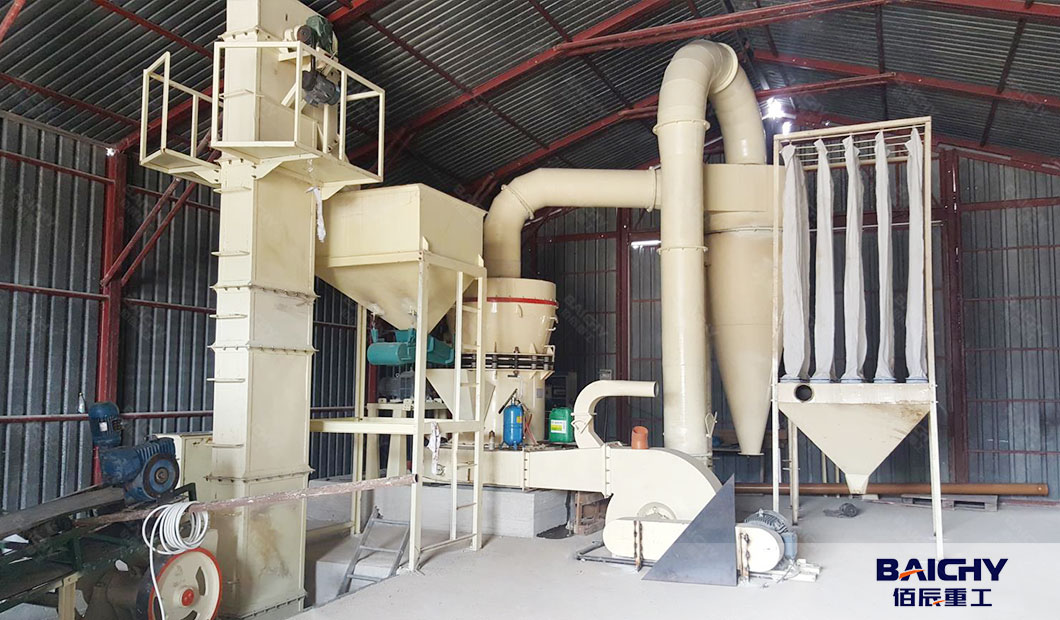

Understanding the Raymond Roller Mill YGM95

The YGM95 is a well - known model in the Raymond mill series. It's designed to grind non - metallic minerals like zeolite, which typically have a Mohs hardness of 3 - 4.
● Fineness Control: Equipped with a high - speed centrifugal classifier, it can produce zeolite powder in the range of 80 - 325 mesh (180 - 45 microns). The adjustable speed of the classifier, powered by a 7.5kW motor, ensures a consistent particle size. This is crucial for applications such as water treatment, where the pore size of the zeolite powder affects its adsorption efficiency.

● Grinding Mechanism: It uses a rotating roller that presses against a stationary grinding ring. This method, based on compression and friction, is gentle enough to preserve the porous structure of zeolite, which is essential for maintaining its unique properties.

● Output Capacity: With a 55kW main motor, the YGM95 can deliver an output of 1.5 - 4 tons per hour (TPH), making it suitable for medium - scale production.

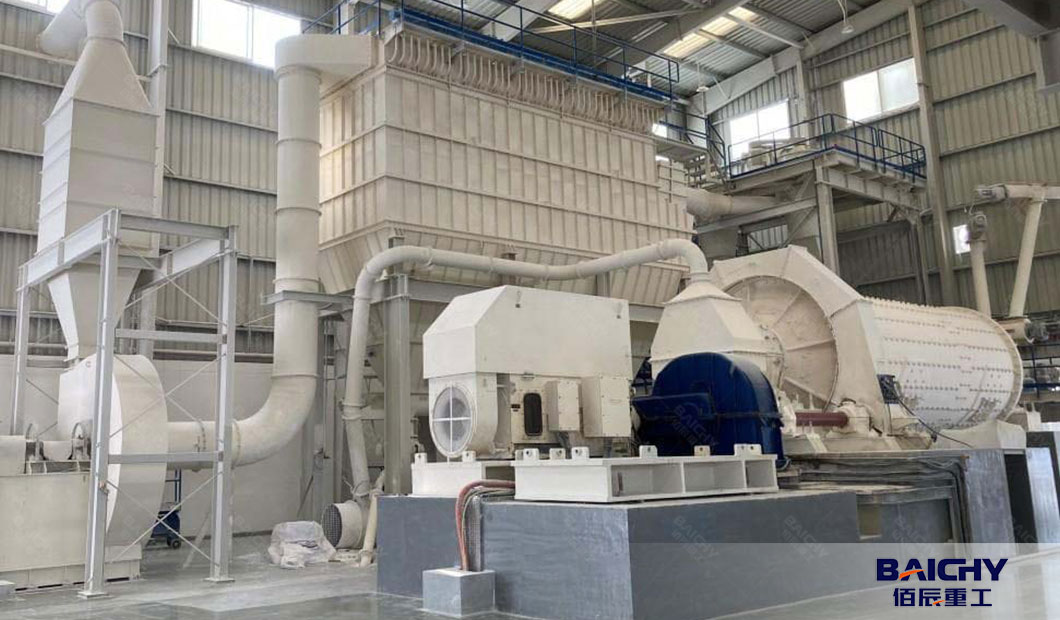

Comparing with Ball Mills

● Grinding Principle: Ball mills use rotating cylinders filled with grinding media (balls) to crush materials. In contrast, the YGM95 uses the roller - ring system. Ball mills are more suitable for extremely hard materials as the impact of the balls can break down tough substances. However, for zeolite, the YGM95's roller - ring system is gentler and better at preserving the zeolite's structure.

● Energy Consumption: Ball mills generally consume more energy due to the continuous movement of the heavy grinding media. The YGM95, on the other hand, is relatively more energy - efficient, with an approximate energy consumption of 40 - 60 kWh/ton. This can lead to significant cost savings in the long run.

● Particle Size Distribution: Ball mills may produce a wider range of particle sizes, which might require additional screening and processing to achieve the desired fineness for zeolite powder. The YGM95, with its precise classifier, can produce a more uniform particle size distribution, reducing the need for extensive post - processing.

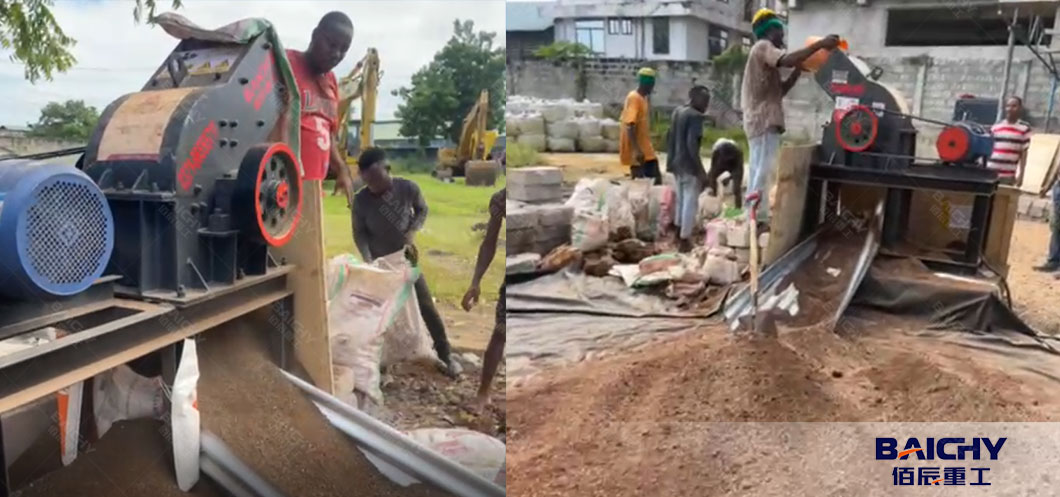

Comparison with Hammer Mills

● Crushing Action: Hammer mills use high - speed rotating hammers to break materials. This impact - based crushing can be too aggressive for zeolite, potentially damaging its porous structure. The YGM95's compression - based grinding is more suitable for maintaining the integrity of zeolite.

● Fineness Range: Hammer mills are better at producing coarser particles and may struggle to achieve the fine particle sizes (80 - 325 mesh) required for most zeolite applications. The YGM95, with its adjustable classifier, can consistently produce powder within this fine - mesh range.

● Throughput and Efficiency: While hammer mills can have high throughput for certain materials, for zeolite, the YGM95 offers a good balance of throughput (1.5 - 4 TPH) and the ability to produce high - quality, fine - sized powder. Hammer mills may require multiple passes to achieve the same fineness as the YGM95, reducing overall efficiency.

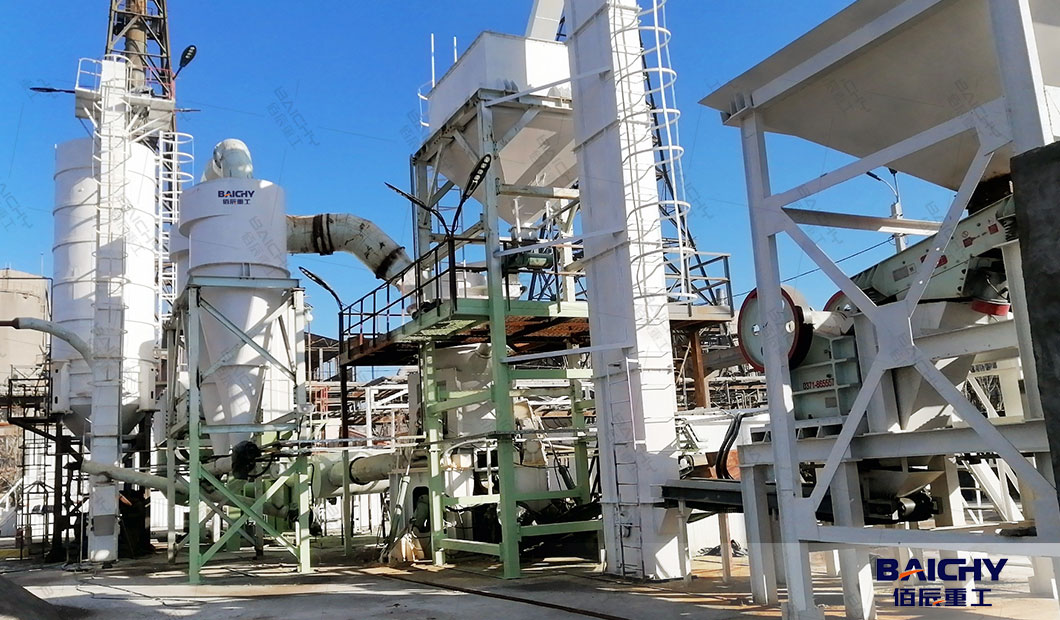

Contrasting with Vertical Roller Mills

● Design and Structure: Vertical roller mills have a different layout with vertical rollers and a flat table. The YGM95, as a horizontal - style roller mill, has a more compact design in some cases. Vertical roller mills are often larger and more complex in structure, which may require more space and higher initial investment.

● Application Specificity: Vertical roller mills are sometimes preferred for large - scale industrial applications where high throughput is crucial. However, for medium - scale zeolite powder production, the YGM95 can be a more cost - effective choice. It can achieve a good output capacity (1.5 - 4 TPH) at a relatively lower cost.

● Maintenance and Wear: The wear patterns in vertical roller mills can be different from those in the YGM95. In the YGM95, the wear parts such as rollers and rings are made of high - chromium alloy, which can last 6 - 12 months with regular use. Vertical roller mills may have different wear characteristics, and the cost and frequency of maintenance can vary accordingly.

Conclusion

The Raymond Roller Mill YGM95 offers several advantages over other zeolite powder making machines. Its ability to precisely control the fineness of the powder, gentle grinding mechanism that preserves zeolite's structure, energy - efficiency, and suitable output capacity make it a strong contender for medium - scale zeolite powder production. While other machines like ball mills, hammer mills, and vertical roller mills have their own niches, for most standard zeolite powder production requirements, the YGM95 stands out as a reliable and efficient choice. When considering which machine to invest in for zeolite powder production, factors such as the scale of production, required particle size, energy costs, and maintenance should all be carefully evaluated, and in many cases, the YGM95 will prove to be the optimal solution.
