Nickel Ore Crushing Equipment in Indonesia

Indonesia is the world’s top producer of nickel—home to 22% of global reserves, mostly in laterite nickel ore (the primary feedstock for electric vehicle batteries). As demand for EVs and stainless steel surges, Indonesian nickel mines and beneficiation plants need reliable nickel ore crushing equipment to process raw ore into uniform, grindable particles (10–50mm) for subsequent steps like leaching or smelting. Unlike generic crushers, equipment for Indonesian nickel must handle unique challenges: laterite ore’s high moisture content (20–30%), sulfide ore’s hardness (Mohs 5–6), and tropical weather conditions. This article breaks down the key nickel ore crushing equipment types, their local adaptability, real-world applications, and why choosing the right crusher is critical for Indonesian nickel operations.

Why Indonesian Nickel Mines Need Specialized Crushing Equipment?

Indonesian nickel ore has two dominant forms—each requiring tailored crushing:
1.Laterite Nickel Ore: Soft to medium-hard (Mohs 3–4), high in moisture and clay. Prone to clogging generic crushers if not designed for sticky material.

2.Sulfide Nickel Ore: Harder (Mohs 5–6), dense, and abrasive. Needs heavy-duty crushers to avoid premature wear.

Baichy Machinery produces and provides specialized nickel ore crushing equipment solves these pain points, ensuring steady production and compliance.

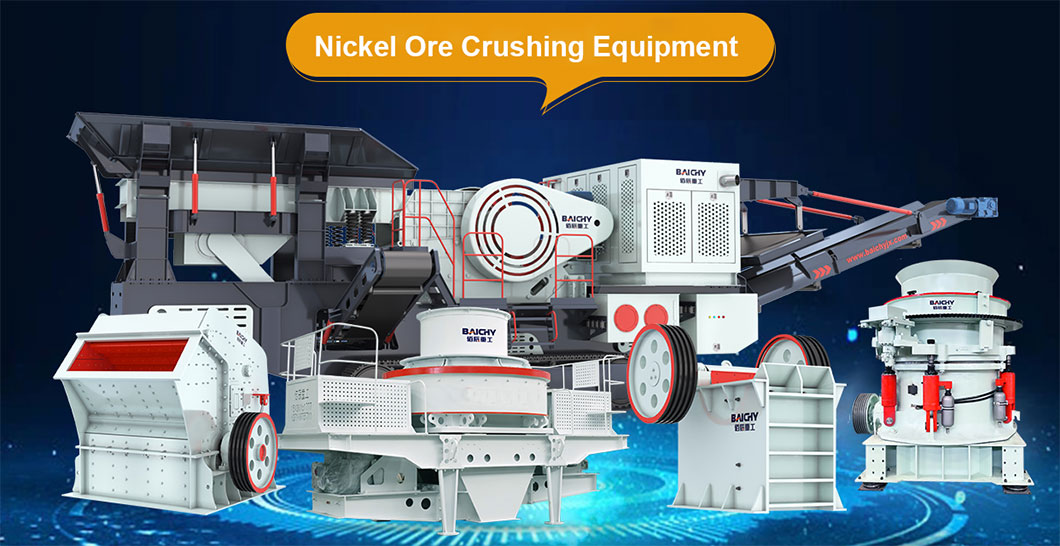

Essential Nickel Ore Crushing Equipment for Indonesian Operations

A typical nickel ore crushing circuit uses a multi-stage process to achieve the desired particle size. Here’s the equipment you’ll encounter:

1. Primary Crushing: The First Line of Defense

The goal here is to accept the large run-of-mine (ROM) ore and reduce it to a manageable size for downstream processing.

● Jaw Crushers: The workhorse of primary crushing. These robust machines use a fixed and a movable jaw to compress and break large rocks (up to ~1.5m) into smaller pieces (~150-250mm). They are excellent for hard, abrasive ores like sulphides and competent saprolite.

● Gyratory Crushers: Used for very high-capacity primary crushing stations. They are more expensive but offer greater throughput for large-scale mining operations.

2. Secondary and Tertiary Crushing: Refining the Size

This stage further reduces the ore from the primary crusher output to a finer gravel or coarse sand consistency, suitable for grinding mills.

● Cone Crushers: The most common choice for secondary and tertiary duties. They crush rock between a rotating mantle and a stationary concave bowl. Perfect for achieving a well-shaped, controlled product size. Multi-cylinder hydraulic cone crushers are particularly favored for their ability to handle hard and abrasive ores efficiently.

● Impact Crushers: These use impact force rather than compression to break rock. They can be effective for softer, less abrasive lateritic ores but may wear faster on abrasive materials. They produce a more cubical product.

3. Specialized Equipment for Sticky Lateritic Ores

The high moisture and clay content in Indonesian limonite can plug traditional crushers and screens. Special solutions are often required:

● Sizers / Roller Crushers: These use two rotating rolls with teeth to crush material. They are excellent for sticky, wet, and clayey ores as they act to shear and tear the material apart rather than just compressing it, reducing the risk of clogging.

● Drying Systems: In some cases, introducing a rotary dryer before crushing is necessary to reduce the moisture content of the ore, making it easier to handle and crush throughout the circuit.

4. Auxiliary Equipment: The Supporting Cast

No crushing circuit is complete without these critical components:

● Screens: Vibrating Grizzlies are used before the primary crusher to remove fine material and bypass it from crushing, improving efficiency. Vibrating Screens are used after crushers to classify the material into specific size fractions, sending oversize material back for further crushing (closed-circuit operation).

● Feeders: Apron Feeders are extremely robust and are used to meter and feed ROM ore from a bin or hopper into the primary crusher at a controlled rate, handling heavy and abrasive loads.

● Conveyors: The network of belt conveyors that transport material between each stage of the crushing process.

Selecting the right nickel ore crushing equipment is a strategic decision that forms the foundation of a profitable mining operation in Indonesia. There is no one-size-fits-all solution; the choice between specific models and circuit design depends on the ore characteristics (laterite vs. sulphide), moisture content, and desired capacity. Henan Baichy Machinery Equipment Co., Ltd. is a mining machinery manufacturer integrating R&D, production and sales. Stone crusher are the core production equipment. It has mature technology and processes, complete models and configurations, and technical engineers can tailor production line configuration plans for you. If you are interested in the stone crusher, please click on the online consultation to get solution and price now. Baichy Machinery is dedicated to serving you 24 hours a day!
