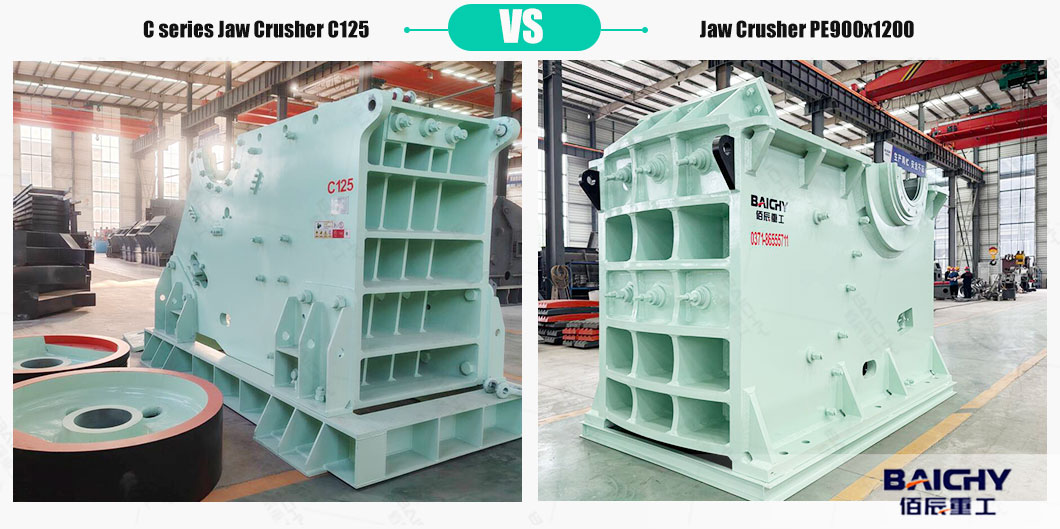

Primary Crushing Equipment Jaw Crusher C125 vs 900X1200

 Selecting the right primary jaw crusher is one of the most critical decisions when setting up a crushing plant. Two popular models in the medium-to-large capacity range are the latest technology C125 and the widely available PE900x1200. While they may seem similar on a basic spec sheet, they represent fundamentally different philosophies: one is a premium, engineered solution, and the other is a cost-effective, standard workhorse. This article provides a detailed comparison to help you determine whether the PE900x1200 or the C125 is the right investment for your specific operation.

Head-to-Head: Specification Overview

At first glance, these two crushers are close competitors:

●Jaw crusher PE900x1200: Feed opening of 900mm x 1200mm.

● jaw crusher C125: Feed opening of 950mm x 1250mm (slightly larger).

Both are designed to process hard and abrasive materials like granite, basalt, and andesite. However, the key differences lie beneath the surface.

Key Comparison Factors

1. Technology and Design Philosophy

● C125: The C125 is part of the modern C Series, which incorporates advanced engineering based on decades of research and real-world data. Its design focuses on efficiency and reliability. Features include:

Optimized Kinematics: A steep cavity angle and long, linear stroke ensure high capacity and a well-shaped end product with reduced slabbyness.

Modular Design: Allows for easier maintenance and component replacement, minimizing downtime.

Advanced Safety: Non-contact labyrinth seals and central lubrication points enhance safety and bearing life.

●  PE900x1200: This crusher follows the traditional PE series design, which is proven and simple. It is a robust machine but lacks some of the advanced engineering optimizations of the C125. Its design prioritizes simplicity and manufacturability, which contributes to its lower initial cost.

2. Capacity and Efficiency

While the feed openings are similar, the C125 often delivers a higher crushing capacity in practice. This is due to its steeper cavity and more aggressive stroke, which pulls the feed material deeper into the crushing chamber, resulting in better size reduction per cycle. The PE900x1200 is a capable machine but may not achieve the same throughput levels under identical conditions.

3. Cost: Initial Investment vs. Total Cost of Ownership (TCO)

This is the most significant differentiator.

●  PE900x1200:

Pro: Its primary advantage is a significantly lower initial purchase price. This makes it an attractive option for projects with tight capital expenditure constraints or for operations where the crusher will not see continuous, heavy use.

●  C125:

Pro: The C125 is a premium-priced crusher. However, its value is realized through a lower Total Cost of Ownership (TCO). Its superior wear part life, higher energy efficiency, and much higher reliability lead to lower operating costs per tonne over the crusher's lifetime. Reduced unplanned downtime is a major contributor to profitability.

4. Reliability and Durability

The C125 is engineered for maximum uptime in the most demanding environments. Its components, from the main frame to the bearings, are selected for extreme durability. The PE900x1200 is a sturdy machine, but its components may have a shorter service life under continuous, heavy-duty operation, potentially leading to more frequent maintenance intervals and associated downtime.

5. After-Sales Support and Parts Availability

●  C125: Backed by Metso's global network, offering comprehensive technical support, genuine wear and spare parts, and service plans. This is crucial for maximizing crusher availability.

●  PE900x1200: As one of the most common crusher sizes globally, parts are widely available from the original manufacturer and numerous third-party suppliers. This can be an advantage in terms of cost and sourcing flexibility, but quality control of third-party parts can be variable.

Which One is Right for Your Operation?

● Choose the PE900x1200 if:

Your project has a strict initial budget.

The crusher will not be used for 24/7 primary crushing.

You have good in-house maintenance capabilities and are comfortable sourcing parts from various suppliers.

● Choose the C125 if:

Uptime is your top priority. Your operation requires maximum availability and reliability.

You are processing very hard or abrasive rock (e.g., andesite, granite).

You are focused on the long-term Total Cost of Ownership and operational efficiency, not just the initial price.

You value expert technical support and a global service network.

Conclusion

The choice between the PE900x1200 and the C125 is a classic decision between upfront cost and long-term value. The PE900x1200 is a capable, budget-friendly option for certain applications. However, for a high-production quarry or mining operation in Indonesia where crushing hard rock like andesite is the core of your business, the C125 is the superior investment. Its advanced engineering, proven reliability, and lower cost per tonne will ensure your crushing plant is productive and profitable for years to come.
