Magnetic Iron Ore Mining Machine Ball Mill 1830x7000

In the magnetic iron ore beneficiation process, the primary goal is to liberate iron minerals from the gangue so that they can be efficiently recovered by magnetic separators. The Ball Mill 1830x7000 is a critical piece of equipment designed for specifically to grind magnetic iron ore into ultra-fine particles (typically 74–200 mesh) for effective magnetic separation. This robust and efficient grinding mill is engineered to handle the abrasive nature of iron ore, reducing it to a fine powder where valuable magnetite particles are freed for separation.

Introduction: The Role of Grinding in Magnetic Iron Ore Processing

Magnetic iron ore, primarily magnetite (Fe3O4), requires fine grinding to achieve liberation. The ore is typically crushed and then fed to a ball mill for further size reduction. The Ball Mill 1830x7000 is a medium-to-large mill, perfectly suited for achieving the fine grind (often to below 200 mesh) necessary for effective magnetic separation in a processing plant with a significant throughput.

Key Features of the 1830x7000 Ball Mill

This ball mill is built for durability, efficiency, and continuous operation in a demanding mining environment.

1. Robust Construction & Heavy-Duty Design:

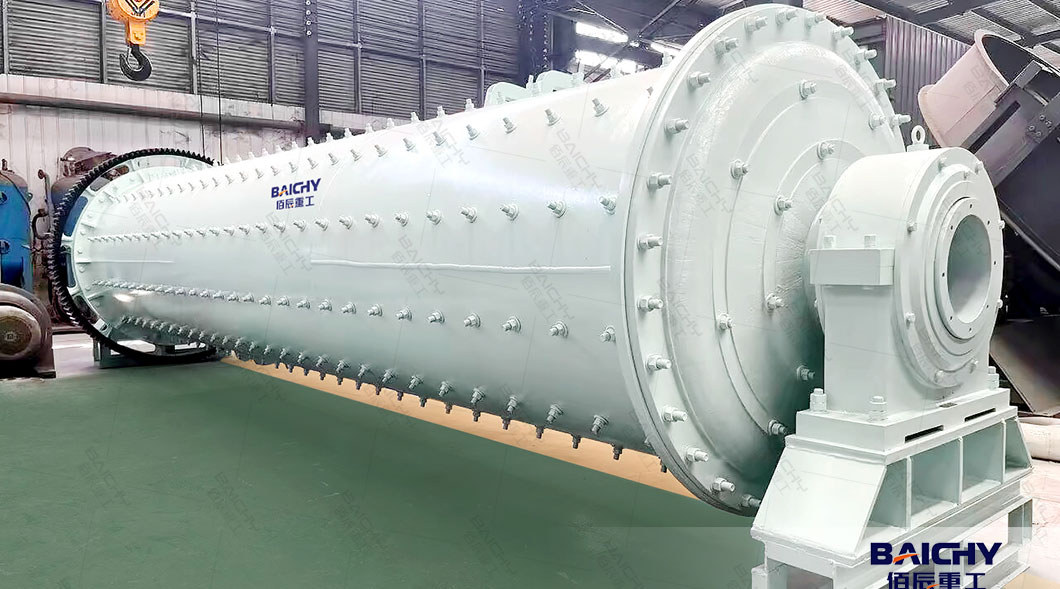

● Thick Steel Shell: The mill shell is constructed from high-quality, thick steel plates to withstand constant abrasion, heavy loads, and rotational stress, ensuring long-term structural integrity.

● Wear-Resistant Liners: The interior is fitted with replaceable manganese steel or rubber liners. These protect the shell from wear and also enhance grinding efficiency by lifting the grinding media.

2. Efficient Grinding Performance:

● Optimal Size Capacity: The 1830x7000 dimensions provide a significant volume for grinding, offering an ideal balance between processing capacity and power consumption for many mid-sized concentrators.

● Precise Grinding Media: The mill is charged with steel balls of varying diameters. This mixture ensures efficient impact and abrasion, effectively breaking down the hard iron ore to the required fineness.

3. Reliable Drive System:

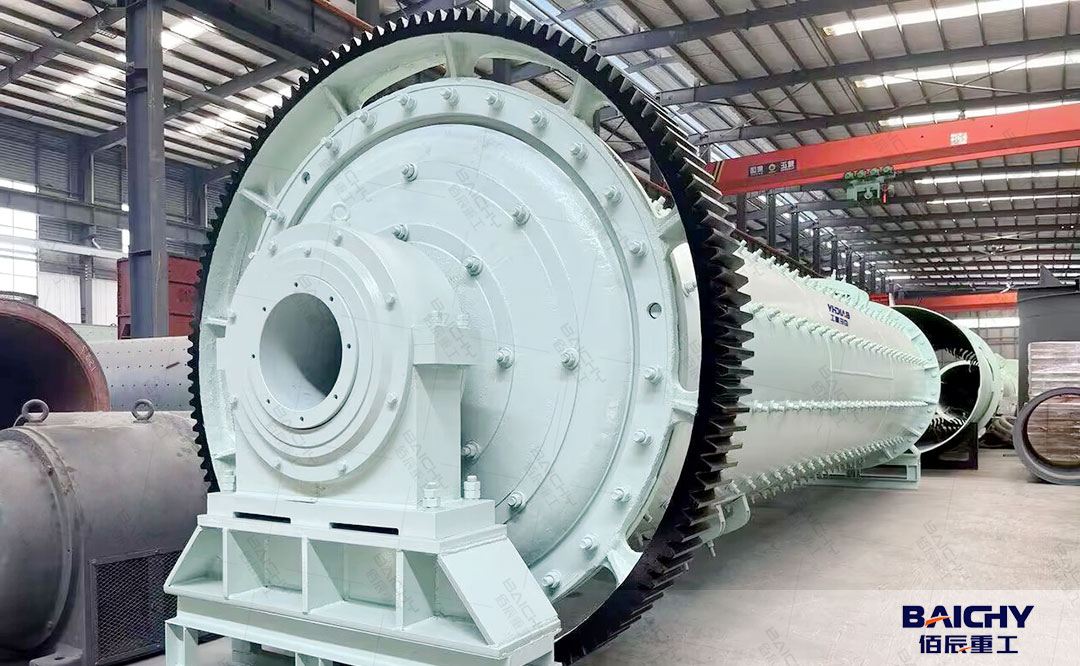

● Girth Gear & Pinion Drive: This classic and reliable drive mechanism ensures smooth, powerful, and consistent rotation of the mill cylinder. It is designed for minimal maintenance and high torque transmission.

4. Advanced Control & Safety:

● PLC Control Integration: Modern installations integrate the mill with a Plant Control System. This allows for automated control of feed rate, water addition, and monitoring of power draw, optimizing the grinding cycle and preventing overloading.

● Thermal Monitoring: Bearings are equipped with temperature sensors to provide early warning of overheating, preventing catastrophic failure and enabling predictive maintenance.

Application Case: Integrating the 1830x7000 in a Magnetic Iron Ore Plant

A major mining company in Western Australia operates a large beneficiation plant processing magnetite ore. Their goal was to increase the concentration plant's throughput and improve the final concentrate's grade to meet premium market specifications. The bottleneck was identified in their grinding circuit, which used older, less efficient equipment. The iron ore processing plant management decided to install  new 1830x7000 ball mill to replace the aging machinery. The mills were integrated into a closed-circuit system with hydrocyclones, where oversized particles from the cyclones are recirculated back to the mill for further grinding.

The Ball Mill 1830x7000 combines efficiency, durability, and flexibility to excel in magnetic iron ore processing. Its ability to liberate iron particles, save energy, and adapt to diverse scenarios—from medium mines to on-site steel mill operations—makes it a smart investment for mines aiming to maximize productivity and ore value. For operations processing 20–40 TPH of magnetic iron ore, this mill delivers reliable performance and a strong return on investment.

People Also Frequently Asked For -FAQ

1. What's the difference between sag mill and ball mill?

Ball mills use steel balls as grinding media and are suitable for fine grinding, while SAG mills use a combination of ore and a small amount of steel balls, making them ideal for coarse grinding.

2. How to calculate ball mill capacity?

The grinding mill's production capacity is generally calculated based on the newly generated powder ore of less than 0.074 mm (-200 mesh). q'm — Unit productivity calculated according to the new generation grade (0.074mm), t/(m3. h).

3. What is the maximum feed size for a ball mill?

In the cement industry, the feed size for ball mills typically ranges from 15 mm to 25 mm, depending on the type of raw material and the desired fineness of the final product.

4. How fine can a ball mill grind?

Ball mills are capable of producing extremely fine powders with particle sizes as small as 10 microns, making them ideal for applications requiring high precision.
