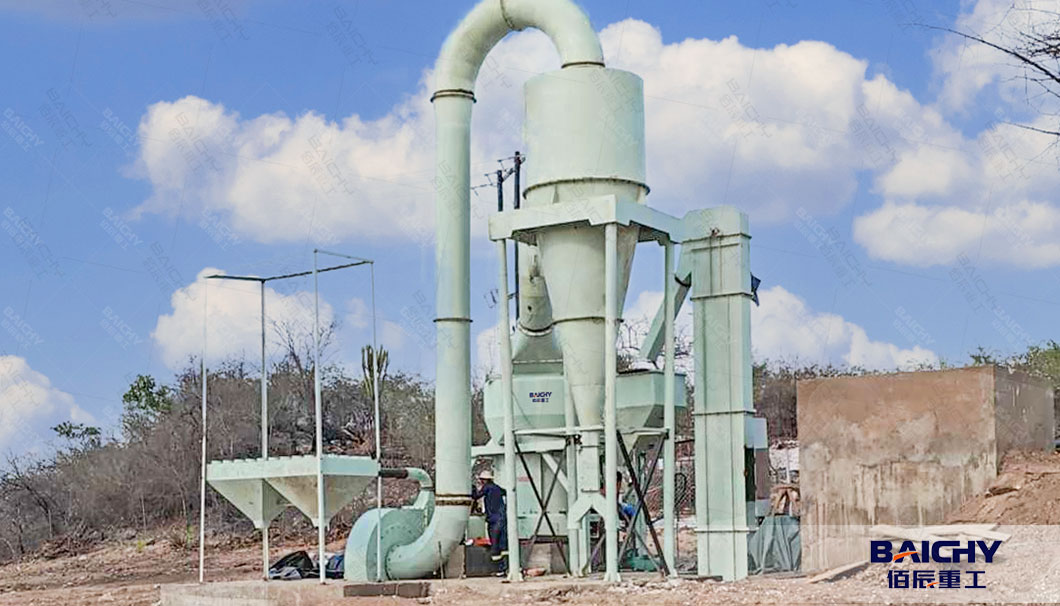

How Raymond Mill YGM130 To Ensure The Quality Of Gypsum Powder Production

The RAYMOND mill YGM130 ensures high-quality gypsum powder production through a combination of precision engineering, controlled processing mechanisms, and integrated quality-enhancing features. These design elements address critical quality metrics for gypsum powder, such as fineness consistency, purity, particle shape, and moisture content. Here’s a detailed breakdown of how it achieves this:

1. Precise Fineness Control via Classifier Technology

Fineness is a key quality indicator for gypsum powder, as different applications (e.g., plaster, drywall, cement additives) require specific particle sizes (80–325 mesh). The YGM130 integrates a high-speed centrifugal classifier that acts as a "quality gate" to ensure uniform particle size:
●  Working Mechanism: After grinding, gypsum powder is carried by airflow into the classifier. The classifier’s rotating impeller creates centrifugal force, separating particles by size:

●  Finer particles (meeting the target mesh) pass through the impeller’s gaps and are collected by the cyclone.

●  Coarser particles are rejected, fall back into the grinding chamber, and are re-ground.

●  Adjustable Precision: The classifier’s speed (controlled by a 15kW motor) is adjustable, allowing operators to fine-tune fineness. For example:

●  Lower classifier speeds produce coarser powder (80–120 mesh) for plaster.

●  Higher speeds yield finer powder (200–325 mesh) for drywall or cement additives.

This ensures minimal variation in particle size, a critical factor for consistent performance in end-use applications (e.g., even setting of plaster).

2. Controlled Grinding to Preserve Gypsum Purity

Gypsum powder quality depends on low impurity levels (e.g., clay, stones, or metal fragments from raw material). The YGM130’s grinding system minimizes contamination and preserves purity through:
●  Material-Specific Grinding Components: The mill uses high-chromium alloy grinding rollers and rings, which are resistant to wear and do not shed metal particles into the gypsum. This avoids metallic impurities that could discolor the powder or affect its chemical properties (e.g., setting time in cement).

●  Pre-Grinding Impurity Removal: While the YGM130 itself is not a crusher, it is designed to work with upstream equipment (e.g., jaw crushers and vibrating screens) that remove large impurities from raw gypsum lumps (≤30mm feed size). This prevents hard contaminants from entering the mill, reducing the risk of damage to grinding components and avoiding impurity mixing.

3. Uniform Particle Shape for Flowability

Gypsum powder used in industrial applications (e.g., drywall manufacturing) requires consistent particle shape to ensure good flowability (avoiding caking) and mixing performance. The YGM130’s grinding method promotes uniform particle morphology:
●  Roller-Ring Grinding Action: Gypsum is pulverized between rotating rollers and a stationary grinding ring via compressive force, producing irregular but consistent granular particles (rather than flaky or needle-like shapes). This shape enhances powder flow in storage and mixing processes.

●  Airflow Regulation: A blower maintains stable airflow through the mill, preventing particle agglomeration during grinding. This ensures that even fine particles (325 mesh) remain free-flowing, critical for packaging and transportation.

4. Dust Control for Purity and Safety

Dust contamination (e.g., from external debris or recycled air) can degrade gypsum powder quality. The YGM130 includes a closed-loop dust collection system to maintain purity:
●  Cyclone Collector: Captures 95% of the finished powder, ensuring minimal loss and preventing cross-contamination with unprocessed material.

●  Pulse Bag Filter: Traps fine dust particles from the exhaust air, preventing them from re-entering the grinding chamber or escaping into the environment. This not only protects powder purity but also ensures compliance with environmental regulations.

5. Stable Operation for Batch Consistency

Quality consistency across production batches is vital for industrial buyers. The YGM130 ensures stability through:
●  Robust Motor and Drive System: A 75kW main motor delivers steady power to the grinding rollers, avoiding fluctuations in grinding intensity that could cause batch-to-batch variations.

●  Load Monitoring: Optional sensors track grinding pressure and airflow, alerting operators to deviations (e.g., overloading with raw material) that could affect powder quality. This allows for real-time adjustments.

Summary

The RAYMOND mill YGM130 ensures gypsum powder quality by combining precision classification (for fineness), contaminant-resistant grinding components (for purity), controlled airflow and moisture management (for flowability), and stable operation (for batch consistency). These features make it well-suited for producing high-quality gypsum powder for construction and industrial needs, from plaster to cement additives.
