150tph Quartz Sand Making Machine VSI9526 Is Launched

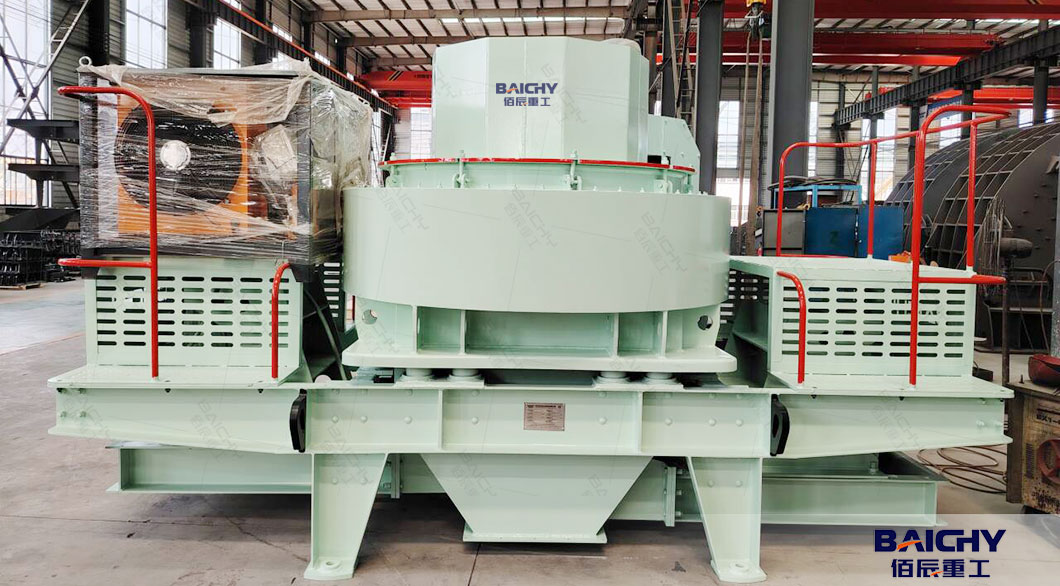

VSI9526 is a type of vertical - shaft impact sand - making machine, which can meet the production requirement of 150tph quartz sand production. It is engineered with precision and innovation. It features a robust build, capable of withstanding the rigors of continuous operation in demanding industrial environments.

1.Sand Making Machine VSI9526 Working Principle

It has two feeding methods, "center feed" and "center & side feed". The material falls vertically from the upper part of the machine into the high - speed rotating impeller. Under the action of high - speed centrifugal force, it collides with other materials, and forms eddy currents in the casing. The materials collide and rub against each other multiple times, and are finally crushed and discharged from the lower part.

2.Technical Parameters:

-Production Capacity: When the feeding method is fully central feeding, the production capacity is 150 - 190t/h, which can meet the requirement of 150tph quartz sand production. When the feeding method is side and central feeding, the production capacity is 300 - 380t/h.
- Feeding Size: The maximum feeding size of soft materials is 45mm, and that of hard materials is 40mm. Quartz belongs to hard materials, so the feeding particle size should be less than 40mm.
- Rotational Speed: The rotational speed is 1360 - 1510r/min.
- Power: It is equipped with a double - motor, and the power is 132×2kW.
- Dimensions: The dimensions are 4560×2450×2780mm.

3. High - Performance Features

1. Exceptional Production Capacity

With a designed throughput of 150 tons per hour (tph), the VSI9526 can meet the high - volume demands of large - scale quartz sand production projects. Whether it's for supplying raw materials to the glass manufacturing industry, where high - purity quartz sand is crucial, or for use in high - end construction projects, this machine ensures a consistent and ample supply of quality sand.

2. Superior Crushing and Shaping

The machine is specifically tailored for processing quartz, a hard and abrasive material. It utilizes a unique combination of high - speed rotation and impact forces to crush the quartz into fine particles. The optimized design of the crushing chamber, including the mantle and concave, ensures efficient particle - on - particle crushing. This results in a high - quality product with a desirable cubic shape, low fines content, and a narrow particle size distribution. Such characteristics are highly sought - after in industries where the quality of the end - product directly impacts performance, like in the production of high - strength concrete or precision - made glass products.

3. Energy - Efficient Operation

In an era where energy conservation is a top priority, the VSI9526 stands out. It is equipped with advanced motor technology and a well - designed transmission system that maximizes energy utilization. Compared to some traditional sand - making machines, the VSI9526 can achieve up to 30% energy savings while maintaining high production levels. This not only reduces the operational costs for businesses but also contributes to a more sustainable and environmentally friendly production process.

4. User - Friendly and Low - Maintenance Design

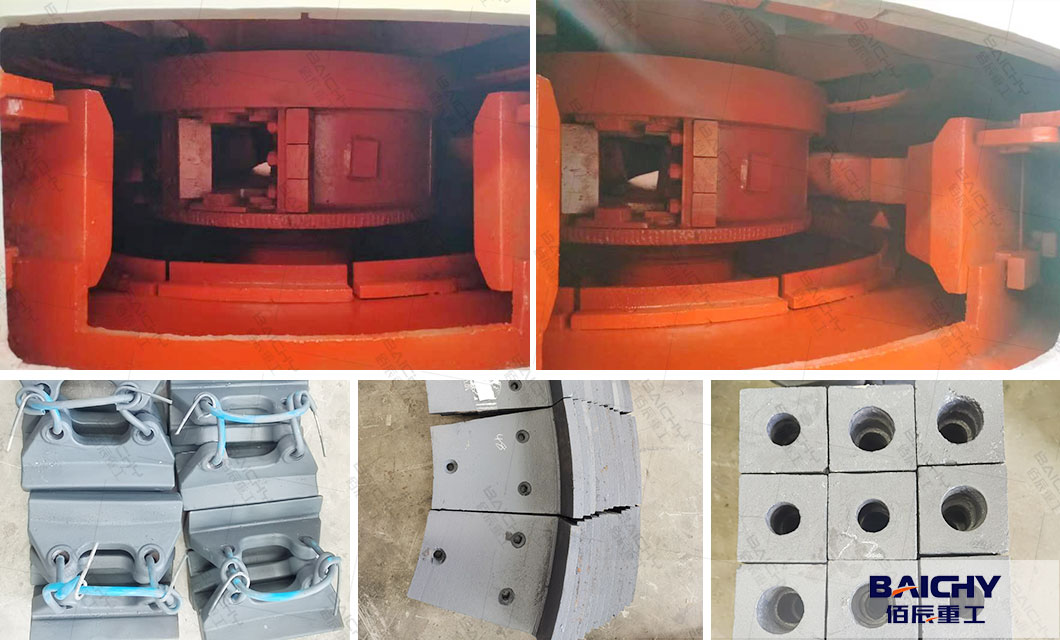

The VSI9526 is designed with the operator in mind. It features an easy - to - use control panel that allows for quick adjustments of key parameters such as rotor speed and feed rate. Additionally, the machine is engineered for minimal maintenance requirements. The use of high - quality, wear - resistant materials in critical components, like the impeller and liners, extends their service life. Moreover, the modular design of the machine facilitates easy access for inspection, cleaning, and replacement of parts, minimizing downtime and maximizing productivity.

4. Applications in Diverse Industries

The launch of the 150tph sand making machine VSI9526 opens up new possibilities for a wide range of industries.Industry Applications
Glass Manufacturing: High-purity quartz sand for optical fibers, flat panels, and glassware.
Construction: Well-graded aggregates for high-strength concrete and infrastructure projects.
Ceramics: Uniform sand for tiles, sanitary ware, and precision ceramic products.

For inquiries, contact Baichy Machinery to explore customization and after-sales support.
