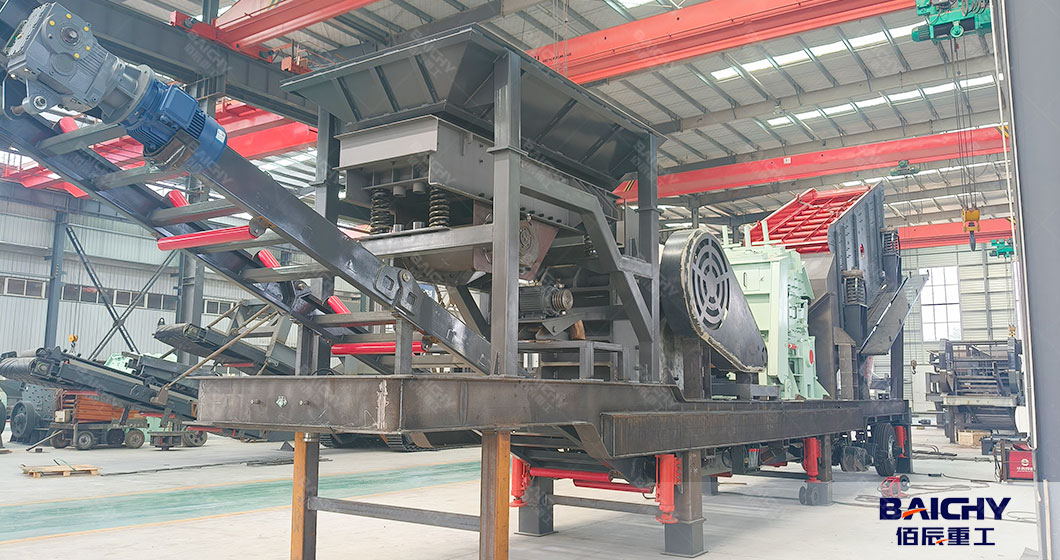

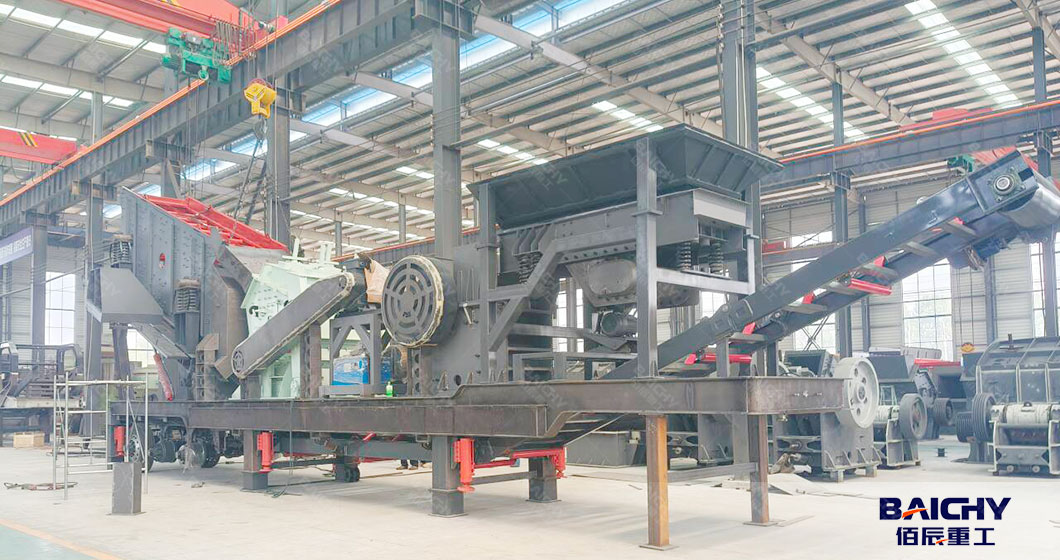

The 4-in-1 mobile crushing plant is a fully integrated, modular crushing and screening system designed for fast deployment and high productivity. Combining feeder, jaw crusher, impact crusher, and vibrating screen, this setup is perfect for quarrying, mining, construction waste recycling, and road construction projects requiring frequent relocation.






4-in-1 Mobile Crushing Plant Main Functions

The four - combination mobile station is a multi - functional powerhouse, offering several key functions:
1.Comprehensive Crushing: With its combination of different types of crushers, it can perform coarse, medium, and fine crushing operations. This enables it to handle various material hardness levels and initial sizes, ensuring that the final product meets the required specifications.



2.Efficient Screening: Equipped with high - quality screening devices, the mobile station can sort crushed materials into different size ranges. This allows for the production of multiple grades of aggregates simultaneously, increasing the flexibility and marketability of the processed materials.



3.Continuous Conveying: Integrated conveyor systems facilitate the smooth transfer of materials between different processing stages. This ensures a continuous and uninterrupted production process, minimizing downtime and maximizing productivity.



Technical Specifications

 Machine  Model  Capacity  Power
 Vibrating Feeder  ZSW8530  ≤650 t/h   11 kW
 Jaw Crusher  PE500×750  40-130 t/h  45 kW
 Impact Crusher  PE500×750  70-130 t/h  90 kW
 Vibrating Screen  3YK1848  ≤600 t/h  22 kW



Applications

1. Construction Waste Recycling

Max feed size: ≤500mm
Output: 0-5mm, 5-10mm, 10-31.5mm recycled aggregates



2. Granite Crushing

Three-stage crushing (Jaw + Cone + Sand Maker)
15-20% higher yield compared to traditional setups



3. Iron Ore On-Site Processing

Can integrate with dry magnetic separator
Achieves "crushing & sorting" in one system






4-in-1 Mobile Crushing Plant VS Traditional Crushing Plants

 Feature   4-in-1 Mobile Plant   Fixed Crushing Line
 Setup Time  1-2 days   15-30 days
 Relocation Cost  <$7,000   Requires rebuild
 Footprint   200-300 m²  2,000+ m²
 Terrain Adaptability  ≤15° slope  Needs flat ground



Buying Guide

1. Analyze Material Properties (hardness, moisture, etc.)
2. Factory Inspection (test-run before purchase)
3. Compare Energy Efficiency (low kWh/ton = lower costs)



Bichy Machinery's Service & Support

1. 24-month warranty on core components
2. Equipment rental available ($11,000-$21,000/month)
3. Technical support with 72-hour response

Henan Baichy Machinery Equipment Co., Ltd. is a mining machinery manufacturer integrating R&D, production and sales. Stone crusher is one of its core production equipment. It has mature technology and processes, complete models and configurations, and technical engineers can tailor production line configuration plans for you. If you are interested in the stone crusher, please click on the online consultation to get solution and price now. Baichy Machinery is dedicated to serving you 24 hours a day!
