Modular Crushing Plant 500Tph For Chalcopyrite Copper–Gold Project

Chalcopyrite (CuFeS₂) is the world’s most abundant copper ore, often associated with gold—making chalcopyrite copper-gold projects a high-value target for mining operations. To extract these minerals efficiently, a robust, high-capacity crushing solution is non-negotiable. A 500tph modular crushing plant stands out as the ideal choice: it combines the power to handle hard chalcopyrite ore with the flexibility of modular design, minimizing setup time, reducing costs, and ensuring seamless integration into mineral processing workflows. In this guide, we explore how to configure a highly efficient 500 TPH modular circuit specifically designed for the unique challenges of Chalcopyrite Copper-Gold ore.

The Modular (Skid-Mounted)Crushing Plant Advantage:

1.Speed: Modules are pre-assembled and wired in the factory. Installation takes 30-45 days, compared to 4-6 months for a fixed plant.
2.No Concrete Foundations: These plants sit on heavy-duty steel frames. You only need a hardened flat surface or simple strip footings, saving up to 60% on civil engineering costs.
3.Asset Liquidity: If the mine life is only 5-10 years, you can unbolt the steel structure and move it to the next project or sell it. You cannot sell a concrete hole in the ground.

The Configuration: Designing the 500 TPH Circuit

Processing 500 tons per hour of hard copper ore requires a robust Three-Stage Crushing Circuit. Using only two stages would put too much load on the secondary crusher, causing bottlenecks.
Here is the optimized layout:

Stage 1: Primary Crushing (The Beast)

● Equipment: Heavy-Duty Jaw Crusher (e.g., PE-1200x1500 or C-Series equivalent)
● Feed Size: Chalcopyrite Run-of-Mine (ROM) ore can be large (up to 800mm).
● Function: Reduces boulders to ~200-250mm.

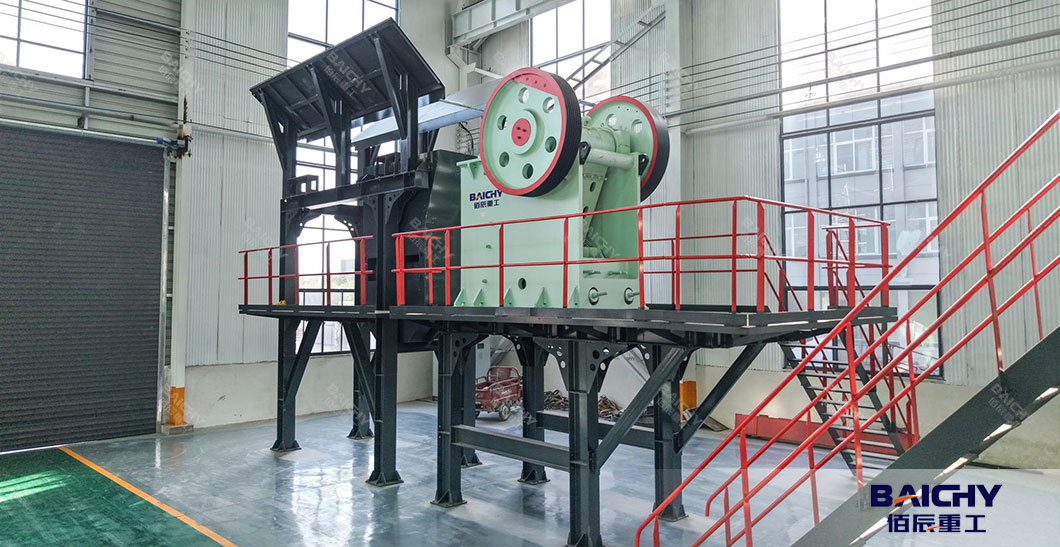

● Modular Feature: The Jaw Crusher is mounted on a steel skid with a vibrating grizzly feeder. The grizzly bars remove fines (soil/sand) before the crusher to improve efficiency.

Stage 2: Secondary Crushing (The Reduction)

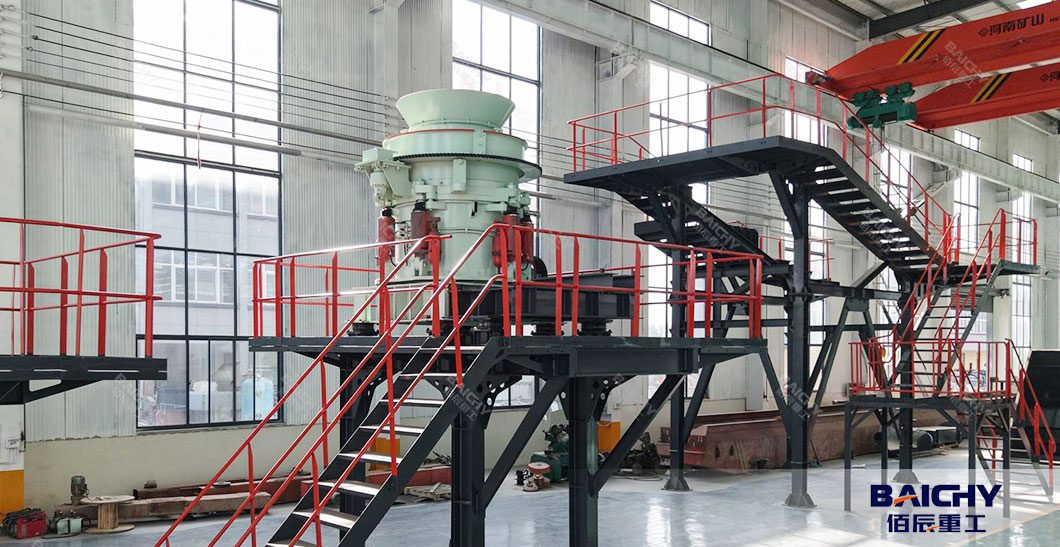

● Equipment: Single-Cylinder Hydraulic Cone Crusher(Standard Head)

● Why a Cone? Hard quartz gangue will destroy the blow bars of an Impact Crusher. Only a Cone Crusher uses "Compression" to break hard rock efficiently with low wear costs.
● Function: Reduces the 250mm stone down to ~60-80mm.
● Surge Pile: Between the Jaw and Secondary Cone, we recommend a surge pile or surge bin to ensure the Cone Crusher is "Choke Fed" (kept full) for maximum efficiency.

Stage 3: Tertiary Crushing (The Fine Tuner)

● Equipment: Multi-Cylinder Hydraulic Cone Crusher (Short Head)
● Why Multi-Cylinder? This is the modern standard for mining. Machines like the HPT or HP series use "Lamination Crushing" principles. High speed and high throw create a cubical, fine product.
● Function: Reduces ore to the final size required for the Ball Mill (0-12mm).
● Closed Circuit: The material goes to a vibrating screen. Oversized material (+12mm) is sent back to this crusher for another pass.

Key Considerations for Selecting a 500tph Modular Crushing Plant

To ensure your plant meets chalcopyrite’s unique needs, focus on these factors:

1. Crusher Type & Wear Resistance

Choose cone crushers with high-manganese steel liners (last 800–1,200 working hours for chalcopyrite).
Avoid impact crushers (unsuitable for hard, abrasive chalcopyrite—high wear rates).

2. Compatibility with Downstream Processes

Ensure crushed ore size (10–20mm) matches your ball mill’s feed requirements (critical for copper-gold liberation).
Opt for a plant with a PLC system that integrates with flotation/leaching controls.

3. Supplier Experience in Mineral Processing

Select a supplier with a track record in chalcopyrite or hard ore projects (e.g., references from copper-gold mines).
Prioritize suppliers offering turnkey services (design, supply, installation, commissioning, and training).

4. After-Sales Support

Look for 24/7 technical support (critical for remote mines).
Fast spare parts delivery (wear parts like cone liners, jaw plates should arrive within 3–7 days).

5. Environmental Compliance

Ensure the plant meets local regulations (e.g., EU REACH, Chilean environmental standards) for dust, noise, and emissions.

If you need a customized 500tph modular crushing plant proposal for your chalcopyrite project—including layout drawings, equipment quotes, and cost-benefit analysis—contact our team. We specialize in mineral processing solutions and can tailor the plant to your ore characteristics, site conditions, and downstream processing needs.

Pwople Also Frequently Asked For - FAQ

Q1: How is the plant shipped?

A: It is designed for standard 40ft containers and Flat Racks. No expensive Break Bulk shipping is required, which significantly lowers ocean freight and inland transport costs.

Q2: How long does installation take?

A: Only 30 to 45 days. Because the modules are pre-assembled and pre-wired at the factory, you save months of construction time compared to traditional concrete plants.

Q3: Can it run on Diesel Generators?

A: Yes. For a 500 TPH hard rock line, we recommend a 1200kW (1500kVA) diesel generator. This provides enough power for operation and handles the startup surge of the primary crusher.

Q4: Is the output fine enough for a Ball Mill?

A: Absolutely. The closed-circuit design guarantees 100% <10mm output. This fine feed size can increase your Ball Mill’s efficiency and throughput by 20-30%.
