What Machines Are Commonly Used To Fine Grade The Aggregate?

When it comes to producing high-quality aggregates for construction projects, fine grading is a critical step. Fine grading ensures that the particle size distribution of aggregates meets specific standards, which directly impacts the strength, durability, and workability of concrete, asphalt, and other building materials. In this blog post, we’ll explore the most commonly used machines for fine grading aggregates, their working principles, applications, and key considerations for choosing the right equipment.

1. Vibrating Screens

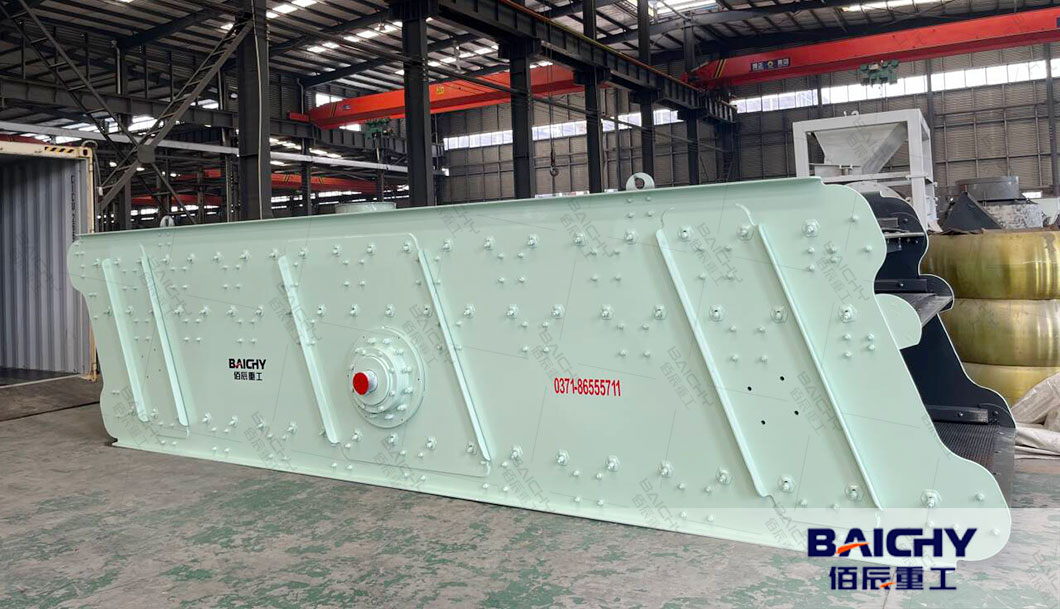

Vibrating screens are the backbone of fine grading in aggregate production. They use mechanical vibration to separate particles into different size fractions based on mesh openings.

How They Work

● Vibrating screens consist of a screen deck (a frame with replaceable mesh) and a vibration mechanism (typically an electric motor with eccentric weights). The motor generates high-frequency vibrations, causing particles on the deck to move forward and separate:
● Smaller particles pass through the mesh openings into lower decks or collection bins.
● Larger particles continue moving along the deck and are discharged as oversized material (which may be recirculated for further crushing).

Types of Vibrating Screens for Fine Grading

● Inclined Screens: The most common type, with a deck angle of 15–30 degrees. They handle high capacities and are ideal for grading aggregates into 2–4 size fractions (e.g., 0–5mm, 5–10mm, 10–20mm).
● Horizontal Screens: Operate at a 0–5 degree angle, providing longer residence time for particles. They offer superior separation efficiency for fine aggregates (e.g., sand) but have lower capacity than inclined screens.
● Multi-Deck Screens: Feature 2–4 decks stacked vertically, allowing simultaneous grading into multiple size fractions. For example, a 3-deck screen can produce 0–5mm, 5–10mm, and 10–20mm aggregates in one pass.

Key Features for Fine Grading

● Mesh Size: Fine grading requires mesh openings as small as 0.1mm (for sand) or up to 20mm (for coarse aggregates).
● Vibration Frequency: Higher frequencies (1,200–1,800 RPM) improve separation of fine particles.
● Anti-Clogging Design: Polyurethane or rubber mesh with self-cleaning properties prevents material buildup, especially for wet or sticky aggregates.

2.Cyclones: Efficient Fine Particle Separation

Cyclones are used for fine grading and separating particles based on their size and density. They are often integrated into aggregate processing plants to remove fines or classify materials.

How They Work

● Aggregates are fed into a cyclone at high velocity, creating a spiral airflow.
● Centrifugal force pushes larger particles to the cyclone wall, where they spiral downward and are discharged.
● Fine particles are carried by the air to the top and collected in a baghouse or filter.

Applications

● Removing dust from crushed stone or sand.
● Classifying fine aggregates (e.g., 0–2mm) for specialized applications like plaster or grout.

3. Trommel Screens: Versatile Grading for Wet or Sticky Aggregates

Trommel screens are cylindrical rotating screens used for grading aggregates, especially those that are wet, sticky, or contain organic matter (e.g., clay, leaves).

How They Work

● The trommel is a rotating drum with mesh openings of varying sizes.
● Aggregates are fed into the drum, and as it rotates, smaller particles pass through the mesh.
● Larger particles exit through the end of the drum.

Advantages

● Suitable for wet or sticky materials, as the rotating motion prevents clogging.
● Can handle a wide range of particle sizes, from fines to large stones.

Applications

● Grading recycled aggregates (e.g., crushed concrete, asphalt).
● Processing river gravel or sand with high moisture content.

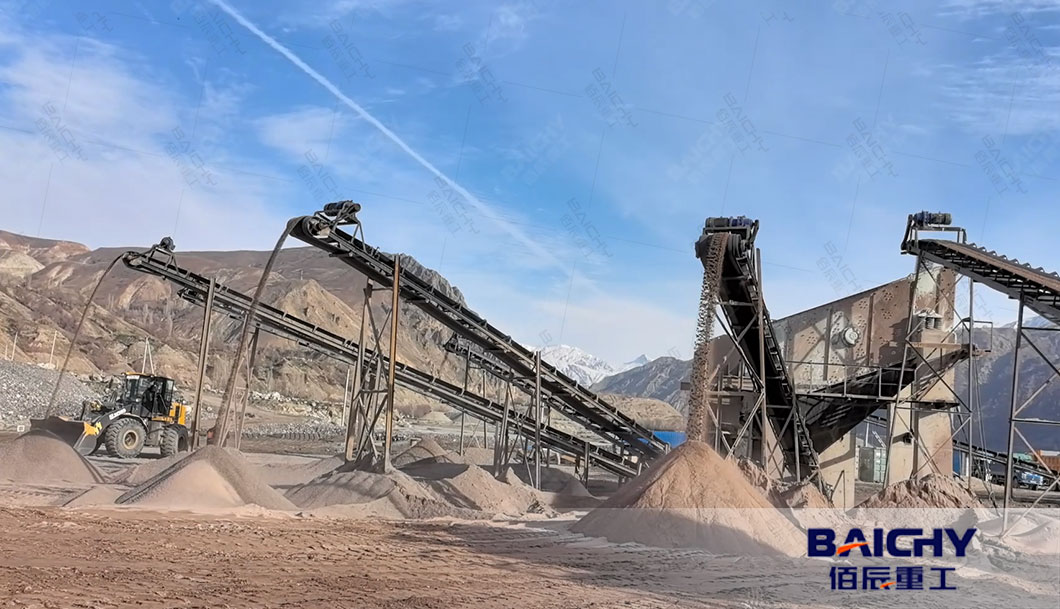

Fine grading is a vital step in aggregate production, and the choice of machine depends on the material, desired particle size, and production requirements. Vibrating screens are the most versatile and widely used, while classifiers, cyclones, trommel screens, and sieves serve specialized roles. By selecting the right equipment, you can ensure that your aggregates meet the highest quality standards for construction projects.

If you’re looking to optimize your aggregate grading process, contact our team of experts for personalized advice and solutions tailored to your needs!
