Multi-cylinder hydraulic cone crusher is a kind of high energy and high efficiency cone crusher. It is named by its external insurance structure composed of multiple groups of hydraulic cylinders.



At present, there are two kinds of common multi-cylinder hydraulic cone crusher in the domestic market. Its external structure is basically similar, but its internal structure is very different.

One type is to use the spindle fixed on the frame, eccentric sleeve around the spindle rotation, driving the moving cone swing movement structure, which is true multi-cylinder hydraulic cone crusher.

The other type is the use of spindle and moving cone one driven by eccentric sleeve spindle and moving cone together to do swing motion structure. It is from spring cone crusher changing the external insurance structure. So it is a false multi-cylinder hydraulic cone crusher.



There is also some difference between the two prices. What's the price difference? Feel free to contact us for more information. This is a hydraulic cone we just delivered yesterday, complete with hydraulic oil station, refrigeration system and so on.

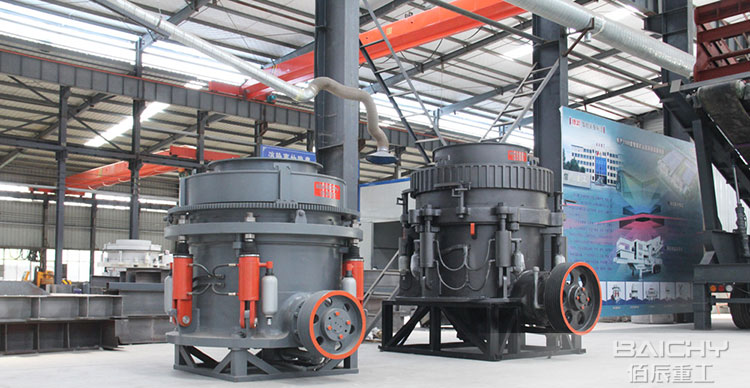

multi-cylinder hydraulic cone crusher price



Cone crusher price

The multi-cylinder hydraulic cone crusher is mainly used for secondary crushing or tertiary crushing in sand and gravel processing. The machine has advantages in crushing hard materials and fine crushing, and is widely used in the crushing of medium-hard materials such as river pebble, granite and basalt.



Based on the traditional multi-cylinder hydraulic cone crusher spindle fixed, eccentric sleeved spindle rotating structure and laminating crushing principle, Baichy has made a breakthrough optimization of the equipment structure, improving the equipment's performance and crushing capacity. The hydraulic lubrication system ensures that the equipment operates reliably and the operation control is smarter and more user-friendly.



Although the performance of HP cone crusher has been improved a lot, the price has not changed much. The cone crusher price is determined by the model purchased by the customer. Also, it could be made into mobile cone crusher plant inlcuding HPC cone crusher and YK vibrating screen. Welcome to contact us for detailed quotation and cone crusher manual.

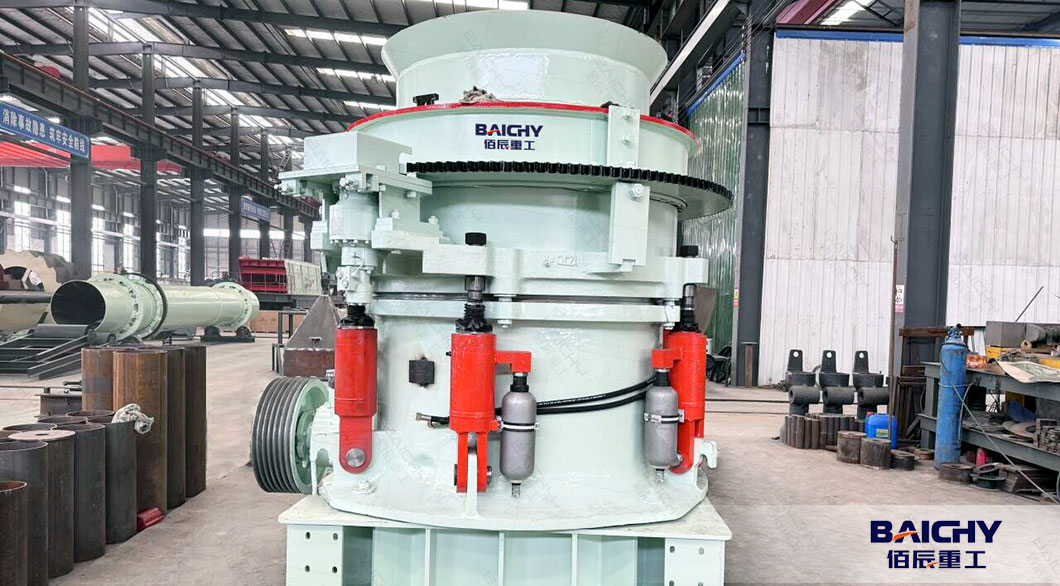

hp 200 cone crusher


HP200 cone crusher


HP200 cone crusher is small scale multi-cylinder hydraulic cone crusher. It is complete with new electrical & hydraulic control panel, lubrication system, steel framwork with anti-vibration sub-frame and new 132 kW electric motor. With 3 types of crushing cavity: coarse, medium and fine, HP200 cone crusher could used as secondary or tertiary crushing stage to get different size material. Below features could help you know more features about HP200 cone crusher machine.



HP200 cone crusher advantages:


1. Structure upgrade is more efficient. The device further optimizes the design of the transmission components and the lubrication seal structure based on the structure of the spindle fixed and the eccentric sleeve rotating around the spindle. The multi-cylinder hydraulic cone crusher has strong bearing capacity, and the installed power reaches the same size in the same type of industry, with small volume, high efficiency and low noise.


2. The amount of processing is large. The combined design of crushing stroke, crushing speed and crushing chamber type, the output of multi-cylinder hydraulic cone crusher is 35%-60% higher than that of traditional cone crusher.


3. Multi-cylinder hydraulic cone crusher is laminated and broken. The material is crushed by the principle of laminating and crushing. By optimizing the equipment and cavity type, the laminating crushing efficiency is improved, the crushing efficiency is high, the wear of the wearing parts is low, the finished grain shape is cubic, and the fine particle content is high. Improve the quality of finished products and reduce the production costs of equipment and the entire system.


4. Full hydraulic control is accurate and reliable. The equipment is hydraulically operated from clear chamber, overload protection to adjustment and locking. The multi-cylinder hydraulic cone crusher works stably and reliably, and is easy to operate. The hydraulic system structure is fully optimized and upgraded, the adjustment control is more accurate, and the automatic protection response is more sensitive.


5. The crushing ratio is high. The HP series multi-cylinder hydraulic cone crusher has a significant advantage of high crushing ratio in the case of high material hardness and small particle size requirements.



HP200 cone crusher price



HP200 cone crusher disadvantages:



Except above advantages, HP200 cone crusher uses a labyrinth sealing structure, which can play a dust-proof effect, but if user has little experience or a manufacturer with poor manufacturing technology, the labyrinth sealing will also allow dust to enter. Stones with a lot of dust may make it difficult to adjust the discharge port. So it is important to choose a good brand manufacturer.



And another disadvantages of cone crushers is that they can only accommodate raw material up to a certain size. The material you feed into the machine must be pre-dimensioned to the crusher. Most cone crushers have a feed opening size of 5-14", so material that's larger than the maximum size allowable will need a first stage of crushing before they can be fed into a cone crusher.

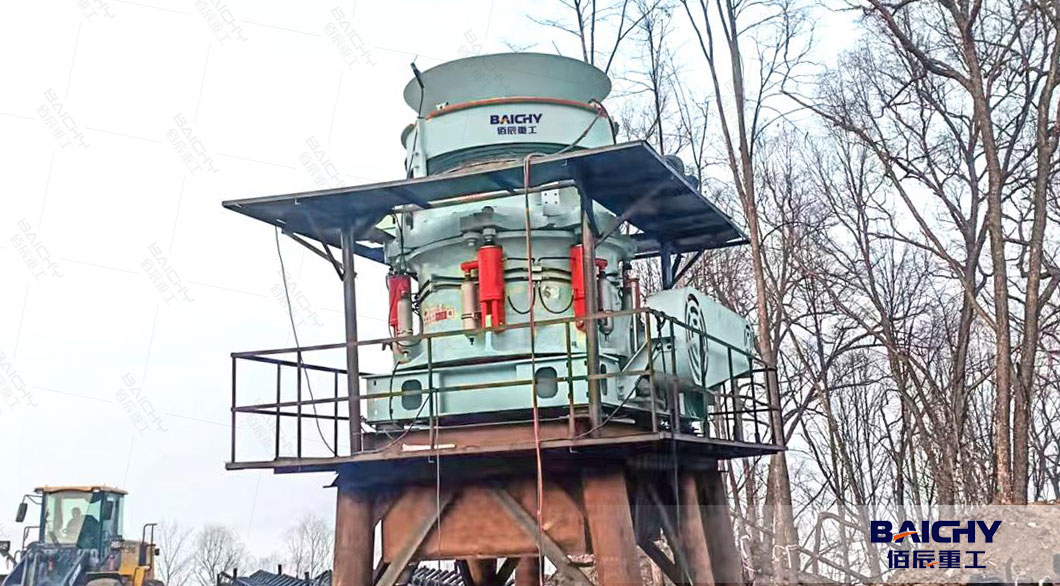

HP cone crusher in stone crushing plant 150-200tph



The stone crusher plant is used for producing sand, rock and stone for construction, highway, railway and other applications. Baichy Machinery,with 40 years of experience in the stone crushing production line, is skilled in the production line process design and has a high-cost performance. We have many stone crusher plant cases with various capacity. Take a 150tph stone crusher plant for instance. The raw material is hard granite. And the final products are mainly used in highway construction, which has very high requirement about the aggregates shapes and stone dust content. We suggest to choose below crusher equpment list
1.vibrating feeder
2. jaw crusher
3.impact crusher,
4.HPC cone crusher
5.Vibrating screen
6.Belt conveyors

After install and debugging, the cone crusher plant runs well and we get great praise from Client.



How much is HP200 hydraulic cone crusher price1



Similar to jaw crushers, cone crushers are another compression crusher that aggregate, concrete, mining, natural gas extraction and coal industries use. HPC cone crusher is most advanced cone crusher by robust design and high performance with integrated crushing speed, stroke and crushing chamber perfectly. Hydraulic and lubrication systems are double-safety controlled make cone crusher more safe and easy to maintenance. But it needs professional engineer to debug and routine maintenance. Finally, HPC cone crusher could to get high quality aggregates and save cost comprehensive crushing efficiency, invest cost, wearing parts, maintenance and other considerations. Baichy Machinery could provide detailed cone crusher price list and professional advice for stone crusher plant invest.



Frequently Asked Questions: About cone crusher



How do you calculate cone crusher capacity?

To find the capacity of a cone crusher, it is recommended to use the actual power draw, crusher throughput, and Ore Specific Gravity.



What is HP cone crusher?

Hydraulic cone crusher is a medium and fine crushing machine. It adopts hydraulic system to adjust the discharge opening and is used to protect the cone crusher from overload.



What is hydraulic cone crusher?

A hydraulic cone crusher is a type of cone crusher that uses a hydraulic system to adjust the size of the discharge opening and to safely and efficiently clear the crushing chamber of any uncrushed material.



What is the product size of cone crusher?

These crushers are always operated under choke feed conditions. The feed size is less than 50 mm and therefore the product size is usually less than 6–9 mm. From: https://www.sciencedirect.com/
