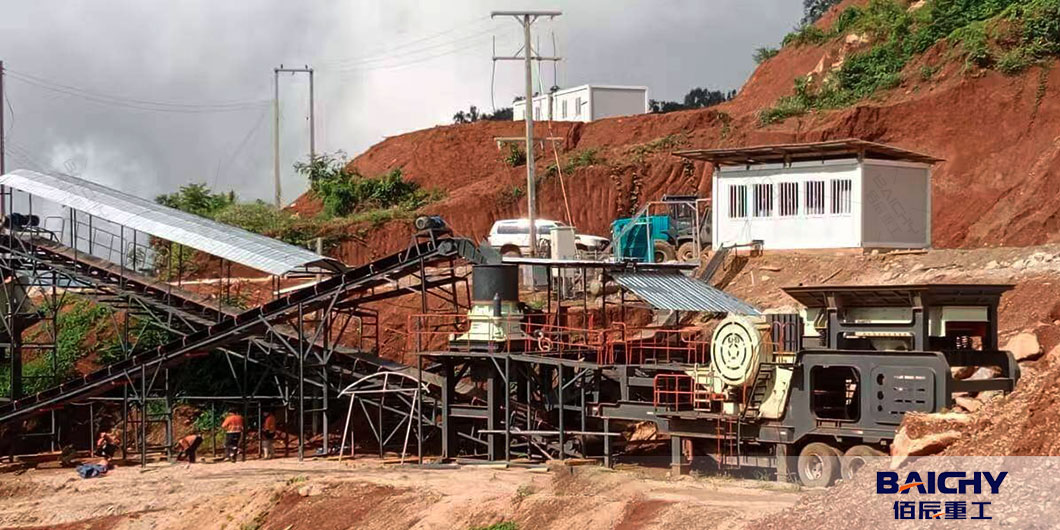

For mining and construction projects across Laos, a reliable and high-capacity aggregate production solution is essential. Baichy Machinery supplid a complete stone crushing and screening plant to Laos. This 300tph stone crushing plant is engineered to process medium-hard rock, such as limestone, granite, and basalt, which are abundant in Laos. It is designed for continuous, high-volume production of high-quality aggregates, including standard sizes for concrete and asphalt mixes.
Core Equipment Configuration

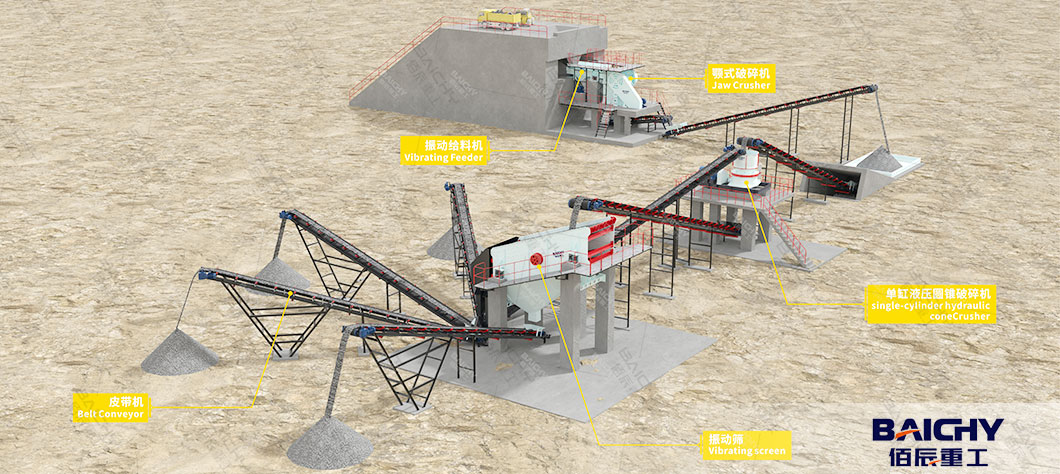

A well-designed crushing circuit is crucial for efficiency and product shape. A typical 300tph plant for the Laotian market features a logical two-stage crushing and screening process:
1. Primary Crushing Station: Jaw Crusher
•Model: A large, robust C series jaw crusher C110
•Function: This is the workhorse of the plant, responsible for the initial size reduction of the large raw rock (0-800mm). It takes the dumped material from the excavator and crushes it down to a manageable size of approximately 0-200mm.
•Why it's chosen: Its strong, simple design allows it to handle the variable and often abrasive nature of Laotian rock with high reliability and low maintenance.
2. Secondary Crushing Station: Cone Crusher
•Model: A high-performance hydraulic single-cylinder cone crusher CH440
•Function: It receives the crushed material from the primary jaw crusher for further reduction. The cone crusher is critical for producing a well-graded, cubical product. It crushes the 200mm rock down to intermediate sizes (around 0-60mm).
•Why it's chosen: The hydraulic adjustment and clearing functions protect the machine from uncrushable debris and allow for easy control over the final product size and shape.
3. Screening system: vibrating screen
4-Deck Vibrating Screen (4YK 2460): Separates aggregates into 4 grades (0–5mm, 5–10mm, 10–20mm, 20–50mm) to match Laos’ construction needs.
4. Supporting Equipment:
A complete plant also includes vibrating feeders to regulate material flow, vibelt conveyors to connect each stage, and an electric control system for centralized, easy operation.
Key Features & Advantages
•High Capacity & Efficiency: The optimized matching of each crusher ensures smooth material flow with minimal bottlenecks, achieving a steady 300tph output to meet tight project deadlines.
•Excellent Product Quality: The two-stage process, culminating with the hydraulic cone crusher, ensures final aggregates are well-shaped, clean, and meet strict international standards for construction materials.
•Strong Adaptability & Reliability: The selected equipment is built to handle the specific characteristics of rock in Southeast Asia. Rugged construction minimizes breakdowns and is suitable for long-term, intensive operation.
•Modular & Semi-Fixed Design: Many plants use a semi-fixed design with concrete foundations, offering greater stability and production volume than fully mobile plants while remaining more flexible and lower-cost than a fully fixed installation.
•Intelligent Control System: The plant can be operated from a central control room, monitoring the entire production line. This improves safety and allows for quick response to any operational issues.
This well-configured 300tph stone crusher plant is a strategic decision for major development projects in Laos. By combining a robust jaw crusher, an efficient cone crusher with screening, this setup delivers the high volume and consistent quality of aggregates needed to build Laos's future infrastructure reliably and profitably. Henan Baichy Machinery Equipment Co., Ltd. is a mining machinery manufacturer integrating R&D, production and sales. Stone crusher is one of its core production equipment. It has mature technology and processes, complete models and configurations, and technical engineers can tailor production line configuration plans for you. If you are interested in the stone crusher, please click on the online consultation to get solution and price now. Baichy Machinery is dedicated to serving you 24 hours a day!
