Central America – June, 2026 –Henan Baichy Machinery’s professional service team visited a valued client in Central America to provide on-site consultation and technical support. The stone crushing plant project involves crushing river pebbles, hard rocks, and basalt to produce high-quality aggregates for construction purposes.The Baichy service team traveled directly to the customer’s aggregate production site to conduct a comprehensive equipment inspection and provide professional technical recommendations, reaffirming the company‘s unwavering commitment to after-sales support across international markets. The production line has been operating consistently for two years and is running with excellent stability, delivering high-quality sand and aggregates for local construction and infrastructure projects. The customer expressed high satisfaction with both the equipment performance and Baichy’s responsive service capabilities.
A Robust and Efficient Production Line Configuration

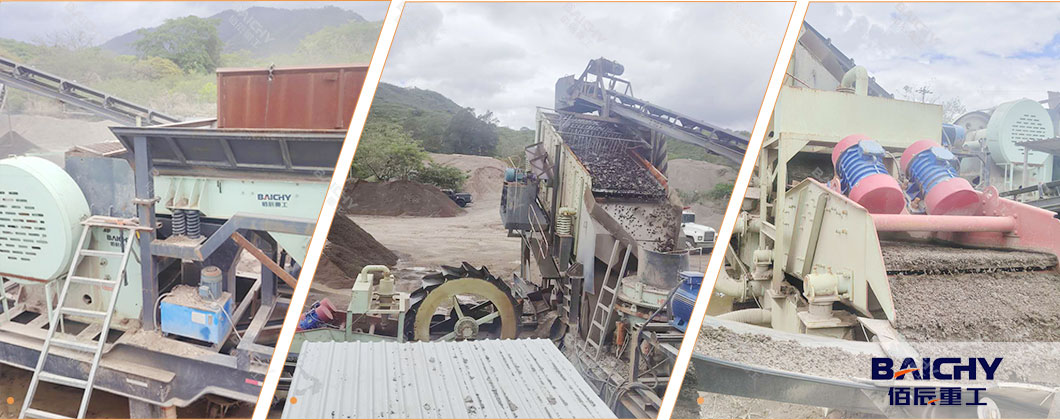

The customer’s aggregate production line features a well-engineered configuration designed to handle hard, abrasive materials while maintaining consistent output and product quality. The complete system consists of:
● Primary Crushing: PE600×900 Jaw Crusher – A medium-sized coarse crushing crusher with a 600×900mm feed opening and maximum feed particle size of 500mm. This jaw crusher features a deep crushing cavity, no dead zone, and a large feeding capacity. Its robust cast steel frame and high-manganese steel jaw plates offer exceptional resistance to wear and tear from continuous crushing. The processing capacity of the PE-600×900 ranges from 90-180 tons/hour, making it suitable for primary crushing of various hard rocks such as granite, basalt, and limestone.
● Secondary Crushing: HP200 Multi-Cylinder Hydraulic Cone Crusher – Designed for medium and fine crushing, this hydraulic cone crusher utilizes a hydraulic system to automatically adjust the discharge opening and protect the crusher from overload damage. The shape design of the crushing chamber is more scientific, while the hydraulic and lubrication systems incorporate double-safety controls. HP200 is typically equipped with a 160KW motor and features multiple cavity types (coarse, medium, fine, and ultra-fine). The unique layered crushing principle ensures that material is not only compressed between the moving and fixed cones but also undergoes multiple impacts and grinding within the crushing chamber, delivering superior product shape and gradation.
● Screening Unit: 4YK1848 Vibrating Screen – A four-layer high-efficiency vibrating screen responsible for precise classification of crushed materials, ensuring that finished aggregates meet the required specifications for construction applications.
● Washing & Dewatering Unit: XSD2610-1225 Integrated Sand Washing, Dewatering, and Recovery Machine – This integrated unit combines sand washing, dewatering, fine sand recovery, classification, and wastewater treatment functions into a single streamlined system. The wheel sand washing machine is artificial sand wet processing’s necessary equipment, effectively removing impurities (clay, dust) from artificial sand (0-5mm) and natural sand while achieving a <0.075mm particle retention rate below 3%. With a unique wheel structure and water circulation system, the XSD2610 combines high cleaning efficiency (98%+) with low water consumption. The integrated design achieves a “one-stop” solution for cleaning, dewatering, grading, and fine sand recovery, providing users with comprehensive value upgrades through simplified investment, improved efficiency, and green production.
Two Years of Reliable Operation on Hard Rock Materials

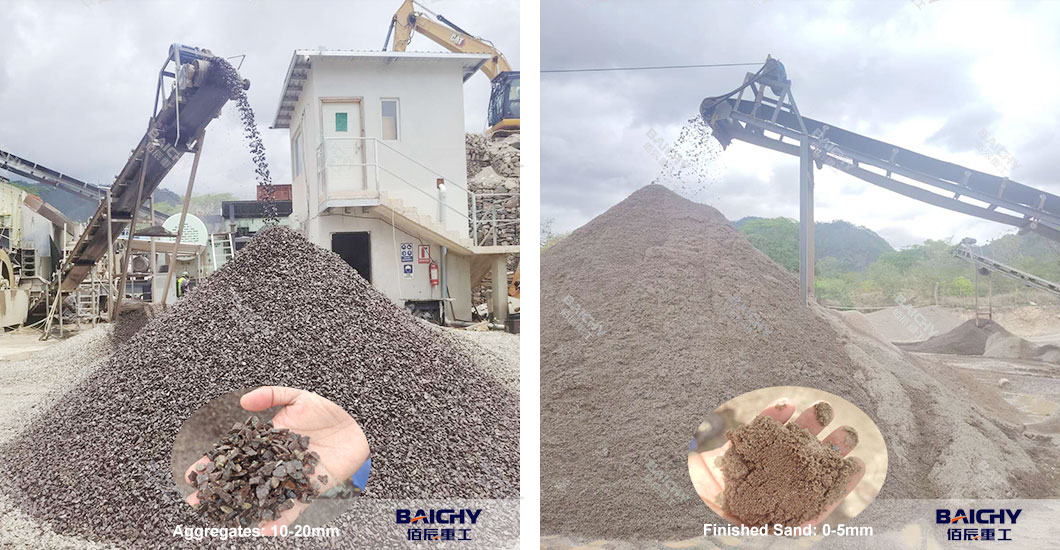

The production line processes river pebbles, mountain rocks, and basalt, producing sand and aggregates at an output of approximately 70 cubic meters per hour. Basalt, known for its high compressive strength and abrasiveness, presents significant challenges for crushing equipment. The combination of the PE600×900 jaw crusher for primary crushing and the HP200 multi-cylinder hydraulic cone crusher for secondary crushing has proven to be an optimal solution for hard rock applications, effectively handling high crushing ratios while maintaining consistent product quality.
During the site inspection, Baichy’s technical engineers conducted a comprehensive evaluation of the entire production line, including:
● Equipment operating status and vibration analysis
● Wear parts inspection (jaw plates, cone mantle & concave, screen media)
● Screening efficiency assessment
● Sand washing and dewatering performance verification
● Preventive maintenance schedule review
● Production process optimization recommendations
Baichy team confirmed that all equipment remains in excellent working condition, with no significant performance degradation after two years of continuous operation. The customer reported that the production line consistently meets or exceeds daily production targets, with high-quality finished aggregates being supplied to local concrete batching plants and road construction projects.
Customer Satisfaction Driving Long-Term Partnership
“We are very satisfied with Baichy’s equipment quality and technical service,” the customer stated during the visit. “The crushing line has been running stably for two years with minimal downtime. When we have technical questions, Baichy’s team responds promptly. Their engineers traveling all the way to our site to inspect and advise us shows that they truly care about their customers’ success.”
The customer emphasized that the HP200 cone crusher’s hydraulic protection system has proven particularly valuable, preventing damage from occasional uncrushable materials and significantly extending the service life of wear parts. The thin oil lubrication system design of the multi-cylinder hydraulic cone crusher improves lubrication performance and prolongs equipment service life
Baichy’s Commitment to Global After-Sales Service
Baichy Machinery, established in 2003, has evolved into a high-tech enterprise integrating R&D, design, manufacturing, sales, and after-sales service. The company holds ISO9001 and CE international certifications, with manufacturing bases spanning over 300,000 square meters and a team of more than 500 staff, including over 130 senior technicians.
Baichy’s after-sales service philosophy extends far beyond equipment delivery. The company provides a comprehensive support system including:
● On-site installation guidance and equipment commissioning
● Operator training programs
● Preventive maintenance scheduling and wear parts management
● Technical troubleshooting and remote support
● Production optimization consulting
Regular customer visits such as this Central American trip allow Baichy engineers to understand real operating conditions and provide targeted solutions that help customers achieve higher productivity and lower operating costs. As demonstrated in recent successful service missions to Mexico and Africa, Baichy’s global service capability ensures that customers receive responsive support regardless of geographic distance. Welcome to contatct us get customized stone crusher plant solution for you.
