Small Scale CIP Gold Processing Plant in Philippines

Background of Small Scale CIP Gold Processing Plant

A gold mining customer in the Philippines was looking for an efficient solution to recover valuable gold from existing mine tailings. Although the tailings had already undergone previous processing, a certain amount of fine gold remained in the material. Based on the customer's requirements, Baichy designed a 1TPH small scale Carbon-in-Pulp (CIP) gold processing plant to reprocess the gold-bearing tailings. The project focuses on improving gold recovery efficiency through fine grinding, cyanide leaching and activated carbon adsorption technology.The raw material is gold mine tailings with a feeding size of 30-250 mesh, and the plant is designed for stable operation with a processing capacity of 1 ton per hour.

Gold Ore Tailings CIP Processing Flow

1. Tailings Screening and Feeding

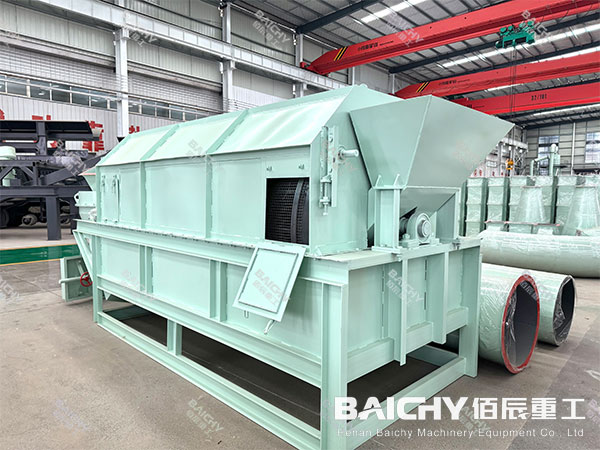

The gold tailings are first fed into the drum screen for separation and classification. The drum screen removes oversized particles and impurities, ensuring that suitable material enters the following grinding process. This step helps improve the stability of the whole production line and protects the downstream equipment from unnecessary wear.

2. Grinding System with Ball Mill

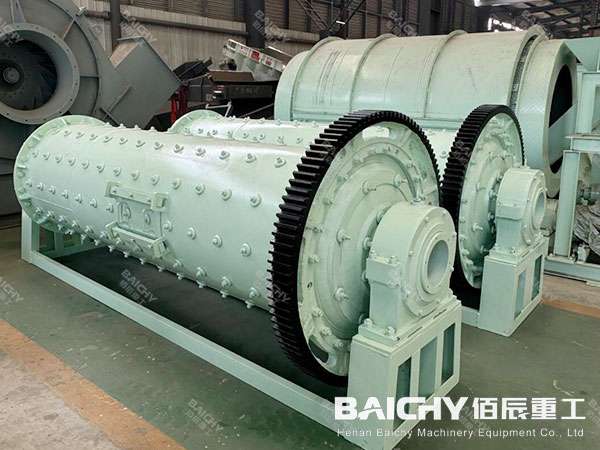

After screening, the material enters the 900×1800 ball mill for further grinding. Although the tailings have relatively fine particle size, grinding is still necessary to improve gold liberation. The ball mill reduces the particle size and releases more gold particles from the mineral structure, creating better conditions for the leaching process. The optimized grinding process helps increase gold recovery and ensures stable slurry quality.

3. Slurry Mixing and Leaching Process

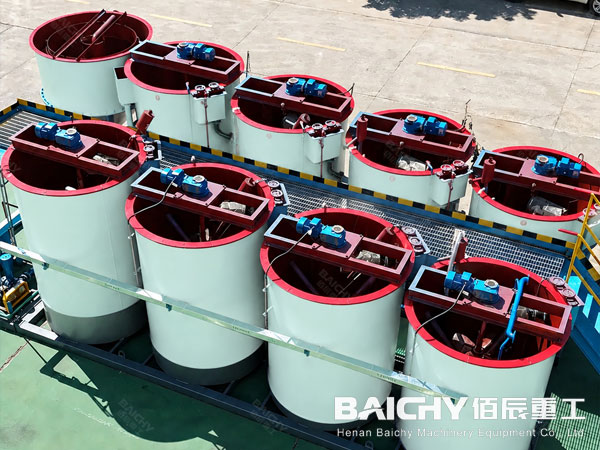

The ground ore slurry is transferred to the mixing tank, where the slurry concentration and chemical conditions are adjusted before entering the leaching system. The slurry then flows into the leaching tanks, where gold reacts with the leaching solution and dissolves into the liquid phase. The multi-stage leaching design provides sufficient retention time, allowing more gold to be extracted from the tailings.

4. Carbon Adsorption and Gold Recovery

After leaching, the slurry enters the adsorption tanks. Activated carbon is added into the adsorption system to capture dissolved gold from the solution. This CIP process improves gold recovery efficiency and is widely applied in gold processing plants. The loaded carbon is then sent to the carbon recovery system, where gold is separated from the carbon for further recovery.

5. Filtration and Tailings Treatment

After gold recovery, the remaining slurry is processed through the filter system. The filter separates solid and liquid components, helping recycle process water and reduce tailings discharge volume. The slurry transfer throughout the plant is supported by reliable pumps, ensuring smooth material transportation between different processing stages.

Main Equipment of the 1TPH CIP Gold Plant

The complete small-scale gold CIP plant includes:

1. Drum Screen – Tailings screening and size classification
2. 900×1800 Ball Mill – Fine grinding and gold liberation
3. Mixing Tank – Slurry preparation and conditioning
4. Leaching Tanks – Gold dissolution process
5. Adsorption Tanks – Gold recovery by activated carbon
6. Carbon Recovery System – Loaded carbon treatment
7. Filter – Solid-liquid separation
8. Slurry Pumps – Material transportation between process stages

Advantages of Baichy Small Scale CIP Gold Plant

1. Compact Design for Small Mining Operations

The 1TPH CIP gold processing plant features a compact structure and reasonable equipment configuration, making it suitable for small-scale gold mining projects and tailings recovery applications.

2. Efficient Tailings Reprocessing Solution

Instead of discarding existing mine tailings, this plant provides an economical way to recover remaining gold resources and improve the value of previously processed materials.

3. Complete Gold Recovery Process

Baichy provides a complete solution covering screening, grinding, leaching, adsorption and gold recovery. The integrated design simplifies plant operation and improves production stability.

4. Customized Equipment Configuration

According to different ore conditions, capacity requirements and investment budgets, Baichy can customize gold processing solutions to meet specific customer needs.

The Philippines 1TPH small scale CIP gold processing plant successfully provides an effective solution for recovering gold from mine tailings. Through the combination of fine grinding, CIP leaching technology and carbon adsorption, the plant helps maximize gold recovery while maintaining simple operation and manageable investment costs.

Crushing Solutions Design

Baichy Machinery can customize a crushing plant for you based on the specific conditions of your project: such as the construction site, hardness of the raw materials, output, output size, budget, etc.

On-site Installation & Training

Our team provides on-site installation and thorough training to ensure safe operation of the crushing plant.

Quality Control & Global Delivery

Rigorous quality checks ensure compliance with standards, and we handle worldwide delivery to your location.

After-Sales Support

Baichy Machinery provides you with spare parts supply, project transformation, investment return analysis, etc.

Crushing Solutions Design

On-site Installation & Training

Quality Control & Global Delivery

After-Sales Support

Frequently Asked Questions (FAQs)

Find answers to the most common questions about Baichy Machinery. If you can’t find what you’re looking for here, please contact us.

1.What type of material can this small CIP gold plant process?

This plant is designed for processing gold mine tailings. The raw material size in this project is approximately 30-250 mesh, making it suitable for tailings recovery applications.

2.What is the capacity of this Philippines gold CIP plant?

The designed processing capacity is 1 ton per hour (1TPH), which is suitable for small-scale gold recovery projects.

3.Why use CIP technology for gold tailings recovery?

CIP technology uses activated carbon to recover dissolved gold from leaching solution. It is effective for recovering fine gold that is difficult to recover through traditional methods.

4.Can Baichy provide complete small gold processing plants?

Yes. Baichy can provide complete gold processing solutions, including process design, equipment manufacturing, installation guidance and technical support according to customer requirements.
