Optimizing Performance: A Step-by-Step Guide to the Jaw Crusher C96

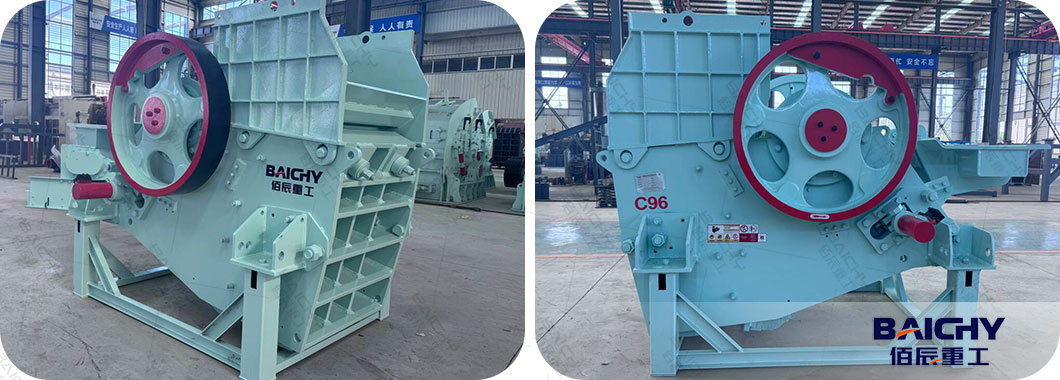

The european  jaw crusher C96 is a primary - crushing equipment. To optimize its performance, you can refer to the following step - by - step guide:

1. Reasonable Equipment Selection:

According to the properties of the material to be crushed, such as hardness, humidity, and particle size, as well as the production scale, select the appropriate model. The C96 jaw crusher is suitable for primary crushing of various hard rocks. Ensure that the selected equipment can meet the actual production needs to lay the foundation for optimizing performance.

2. Uniform Feeding:

Use a vibrating feeder or other feeding equipment to achieve uniform and continuous feeding. The material should be evenly distributed along the inlet of the feeder to fill the crushing chamber, which can reduce the idle time of the equipment and improve work efficiency. At the same time, prevent iron blocks from entering the crushing chamber to avoid damage to components such as jaw plates.

3. Control of Feed Particle Size:

The particle size of the feed should not exceed the maximum feed particle size requirement of the C96 jaw crusher. Generally, the maximum particle size of the ore should be 75 - 100mm smaller than the feed inlet of the jaw crusher to prevent equipment blockage and ensure smooth crushing.

4. Prevention of Bridging:

Strictly control the blasting grid to avoid the generation of over - sized materials. Train the truck loader operator to separate over - sized materials at the pit. The primary crushing plant operator should observe the material flow and control the speed and direction of the stones by adjusting the feeder speed.

5. Selection of Jaw Die Profile:

According to the characteristics of the material, such as crushability, abrasiveness, and flakiness, select the appropriate fixed and movable jaw die profiles. For materials with low crushability, a smaller nip angle is required; for highly abrasive materials, thicker and heavier jaw dies should be selected; for flaky rocks, toothed jaw dies are more suitable.

6. Setting of Discharge Opening:

The discharge opening is the distance between the two jaw plates at the lower end of the crushing chamber. Adjust it within a reasonable range according to the production requirements. A too - small discharge opening may cause blockage and excessive energy consumption, while a too - large discharge opening will increase the load of the secondary crushing. The opening of the discharge opening is adjusted by increasing or decreasing the adjusting shims behind the swing rod seat plate. After adjustment, the tension spring should not be over - compressed.

7. Monitoring of Jaw Plate Wear:

Regularly check the wear condition of the jaw plates. When the bottom of the movable jaw plate is worn by 1/3 and the bottom of the fixed jaw plate is worn by 2/3, the two jaw plates can be inverted; when the upper and lower parts of the movable jaw plate are worn by 1/3 and the middle part is worn by half, and the upper and lower parts of the fixed jaw plate are worn by 2/3, the two jaw plates can be exchanged; when the upper and lower parts of the two jaw plates are completely worn, they should be replaced in time.

8. High - quality Lubrication:

The bearing boxes of the machine base and the eccentric shaft bearings installed on the movable jaw are the only parts that need lubrication for the C96 jaw crusher. There are grease nozzles on the four bearings for adding grease. Before adding grease, clean the grease nozzles and the grease gun to prevent dust from entering the bearing boxes. Ensure the quality and quantity of the lubricating oil, and regularly check the operation of the oil pump and clean the filter.

9. Regular Maintenance and Inspection:

Develop a regular maintenance plan, and check the wear condition of each component of the equipment, including jaw plates, bearings, flywheels, etc. in a timely manner. Replace the worn - out parts to ensure the normal operation of the equipment. At the same time, check whether there are loose parts and abnormal noises in the equipment, and deal with them in time. You can also use sensors to monitor the operating status of the equipment and adopt fault prediction technology to discover and solve problems in time.

10. Optimization of Equipment Structure:

The C96 jaw crusher can be optimized in structure, such as adopting a deep V - shaped crushing chamber, which can optimize the crank - four - bar mechanism, and cooperate with a suitable rotation speed and centrifugal force to enhance the feeding capacity, improve the crushing efficiency, and reduce the unit energy consumption. Optimizing the design of the movable jaw suspension and transmission can increase the effective torque transmission, reduce the mechanical friction resistance, and improve the transmission efficiency.
