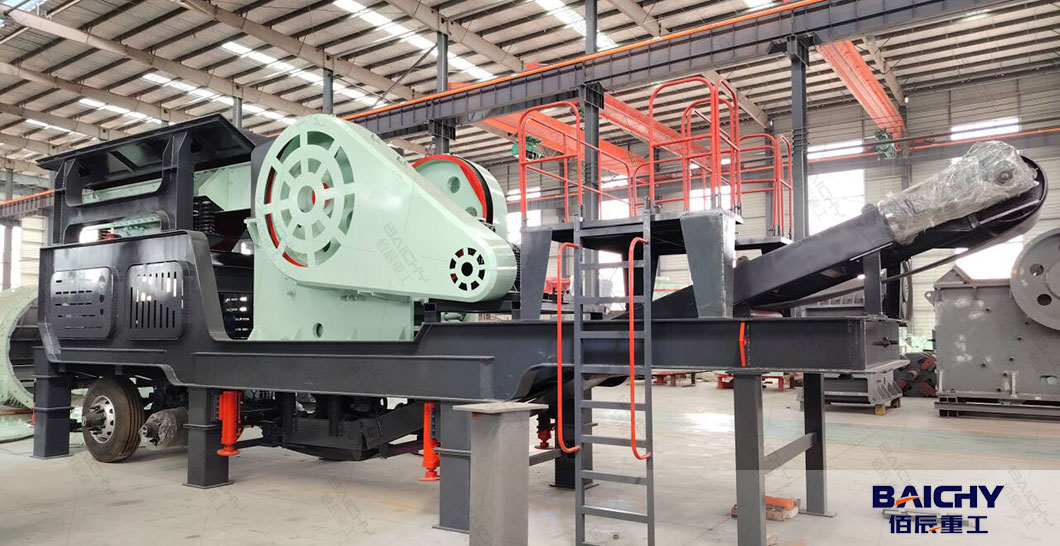

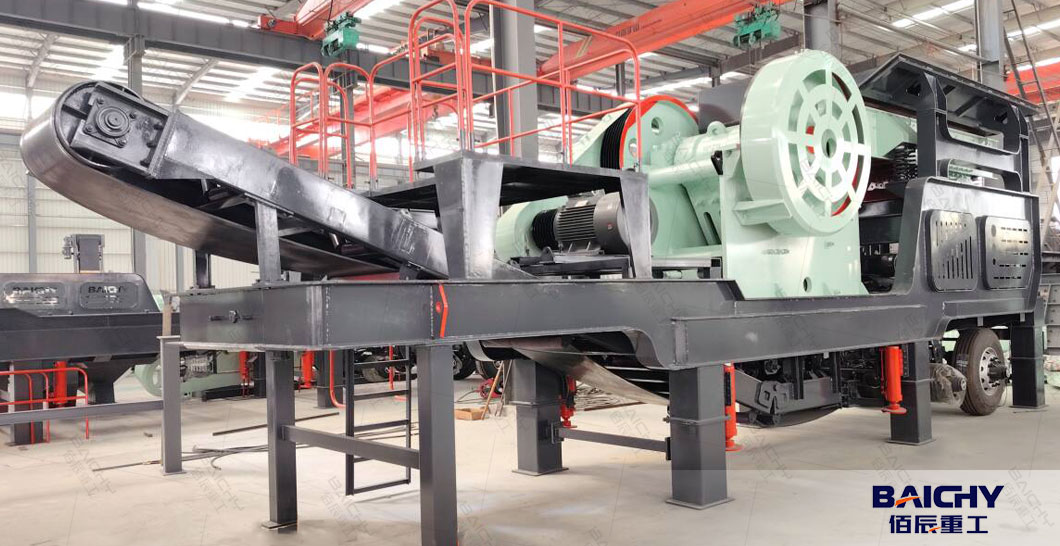

Mobile Jaw Crushers For Aggregate Production

In the dynamic world of aggregate production, mobile jaw crushers offera unrivaled flexibility, efficiency, and power. These robust machines are designed to handle the toughest materials, making them an essential asset for various applications, from large - scale quarrying operations to small - scale construction projects.

Understanding Mobile Jaw Crushers

1.The Basics of Jaw Crushers
At the heart of every mobile jaw crusher is the tried - and - true jaw - crushing mechanism. This system consists of two jaws: a fixed jaw and a movable jaw. The material is fed into a V - shaped chamber, where it is gradually crushed as it moves towards the narrower opening at the bottom. The size of the final product is determined by the closed - side setting (CSS), which is the minimum distance between the two jaws at the bottom of the crushing chamber.

2.Mobility: A Key Advantage
What sets mobile jaw crushers apart from their stationary counterparts is their mobility. Equipped with either wheeled or tracked chassis, these crushers can be easily transported to different job sites. Wheeled mobile jaw crushers, on the other hand, are more suitable for sites with better - maintained access roads and require quick relocation between multiple urban or suburban job locations. This mobility not only reduces the need for transporting large volumes of raw materials to a central processing plant but also allows for on - site processing, which can significantly cut down on production costs.

Applications in Aggregate Production

1.Quarrying Operations
In quarrying, mobile jaw crushers are often the first line of action. They are used to break down large boulders of rock, such as granite, limestone, or basalt, into smaller, more manageable pieces. This initial crushing stage is crucial as it prepares the material for further processing in secondary and tertiary crushers.

2.Construction and Demolition Recycling
The construction and demolition (C&D) recycling industry has seen a significant boost with the use of mobile jaw crushers. These crushers can process a wide range of C&D waste materials, including concrete, asphalt, and bricks. Mobile jaw crushers can be deployed directly at the demolition site, where they can quickly and efficiently break down the waste materials. The recycled aggregates can then be used on - site or sold to other construction companies, providing a cost - effective and sustainable solution.

3.Road Building
For road - building projects, mobile jaw crushers play a vital role in producing the necessary aggregates. The crushed rock and gravel are used for various aspects of road construction, such as the base layer, sub - base layer, and even for asphalt production. Mobile jaw crushers can be moved along the road - building route, allowing for on - the - go production of aggregates. This is especially beneficial for remote or large - scale road projects, where transporting pre - produced aggregates over long distances can be costly. The ability to adjust the CSS on - the - fly means that the crushers can produce aggregates of different sizes to meet the specific requirements of each road - building application.

Key Features and Benefits of Mobile Jaw Crushers

1.High - Capacity Crushing
Mobile jaw crushers are engineered to deliver high - capacity crushing performance. Many models are capable of processing up to several hundred tons of material per hour. For example, some of the larger - sized mobile jaw crushers can handle 300 - 400 tons per hour (TPH), making them suitable for large - scale aggregate production operations. Their robust construction, including heavy - duty jaws and powerful motors, enables them to crush even the hardest materials with ease.

2.Flexibility in Operation
These crushers offer unparalleled flexibility. They can be easily adjusted to produce different sizes of aggregates by changing the CSS. Additionally, many mobile jaw crushers come with features such as variable - speed drives, which allow operators to control the speed of the crushing process according to the type and hardness of the material being processed. Some models also have the option to be equipped with additional screening or conveying equipment, creating a complete mobile crushing and screening plant. This flexibility makes mobile jaw crushers adaptable to a wide range of aggregate production needs.

3.Low Operating Costs
Despite their high - performance capabilities, mobile jaw crushers are designed to be cost - effective. Their mobility reduces transportation costs, as mentioned earlier. In addition, they are often engineered with energy - efficient motors and components, which helps to lower power consumption. Maintenance costs are also relatively low, thanks to their simple and robust design. Many mobile jaw crushers are equipped with quick - change components, such as jaw plates, which can be replaced easily, minimizing downtime.

4.Ease of Setup and Operation
Setting up a mobile jaw crusher is a relatively straightforward process. Most models are designed for quick deployment, with some track - mounted crushers able to be operational within 30 minutes of arriving at the job site. The control systems on these crushers are user - friendly, often featuring intuitive interfaces that allow operators to start, stop, and adjust the crusher settings with ease. Some advanced models even come with remote - control capabilities, enabling operators to manage the crushing process from a safe distance.

Mobile jaw crushers offer the perfect balance of power and portability for modern aggregate production needs. With their quick setup, efficient operation, and versatility, they have become essential equipment for contractors and quarry operators worldwide. Looking for the ideal mobile jaw crusher for your aggregate production? Contact our experts today for personalized recommendations!
