Main Components Of A Customized Mobile Tracked Jaw Crusher

Baichy Machinery can provide customized solutions for mobile tracked jaw crushers. We specializes in tailoring solutions to meet specific customer requirements. Its comprehensive services include plant design, timely supply of key equipment and spare parts, as well as free installation guidance and project test runs.

For mobile jaw crushers, Baichy can customize them according to customers' needs, such as the appearance and configuration of the equipment. The wide adjustment range of the discharging port of Baichy's jaw crushers can also meet different production demands. In addition, tracked or crawler type mobile crusher plant of Baichy Machinery is highly flexible and customizable, which can quickly adapt to different working environments and needs, providing a strong guarantee for customized solutions

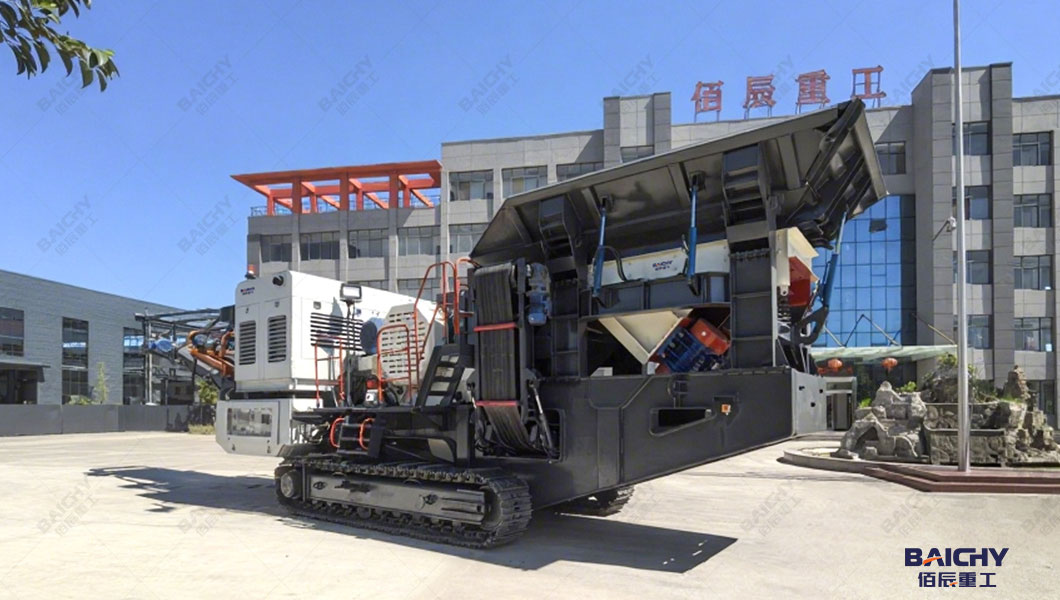

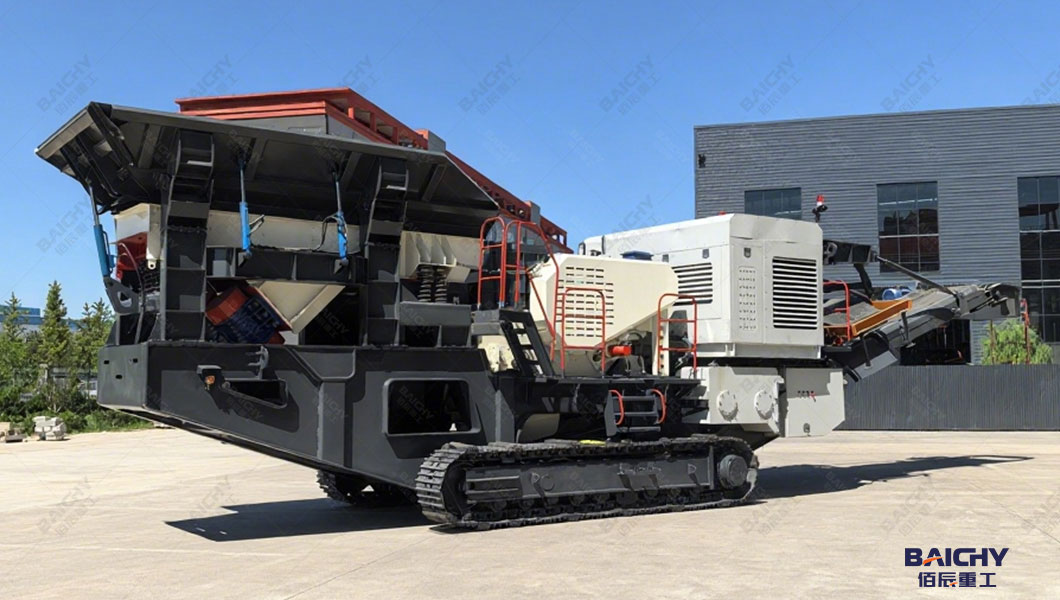

A customized mobile tracked jaw crusher usually consists of the following main components:

1. Jaw Crusher Host:

Jaw crusher is the core part for crushing materials. It could be mounted PE jaw crusher or C series jaw crusher. It includes components such as the frame, jaw plates, eccentric shaft, toggle plate, and flywheel. The frame supports all components and needs to have sufficient rigidity and strength. The jaw plates, including the fixed jaw plate and the movable jaw plate, are used to crush materials. The eccentric shaft drives the movable jaw plate to move back and forth, and the toggle plate transmits power and serves as a safety device. The flywheel stores energy to make the crusher run more smoothly.

2. Feeding Unit:

It generally includes a receiving hopper and a feeder. The receiving hopper is used to temporarily store materials, and some have hydraulically foldable side plates and are made of high - wear - resistant steel plates. The feeder, such as a vibrating feeder or a plate feeder, can continuously feed materials to the crusher at a uniform speed. Some vibrating feeders can also effectively screen out fine materials and impurities.

3. Conveyor System:

It is used to transport the crushed materials. It mainly includes a main conveyor and sometimes a side conveyor. The conveyor belt needs to have anti - tearing and anti - impact properties. At the head roller, there are often high - strength scrapers, and some also have water - spraying dust - removal devices.

4. Tracked Mobile Chassis:

It is the moving part of the equipment, usually using a hydraulically driven or motor - driven tracked walking system, which can adapt to complex terrains and realize rapid site transfer. The tracks are sturdy and durable, and are often bolt - locked with adjustable two - speed settings.

5. Power Unit:

It provides power for the entire equipment, which can be a diesel generator set or an external power supply system. Diesel engines are often from well - known brands to ensure reliable power output.

6. Hydraulic Control System:

It is used to control various actions of the equipment, such as adjusting the discharge port of the jaw crusher, the movement of the tracked chassis, and the folding of the receiving hopper. The hydraulic system includes components such as hydraulic pumps, cylinders, and valves.

7. Electrical Control System:

It is responsible for the operation and control of the equipment, including starting, stopping, and adjusting the speed of each component. It usually includes a control cabinet, touch - screen, sensors, and other components, with functions such as dust - proof, moisture - proof, and over - voltage protection.

8. Frame:

It is the overall support structure of the equipment, usually a fully welded beam - column structure, which has the characteristics of uniform weight distribution, ensuring excellent driving performance and being easy to maintain and clean.

9. Optional Components:

Such as a dust suppression system, which can be a water - spraying system installed on the conveyor to reduce dust emissions; a magnet, which is used to remove metal impurities in the materials; and a hydraulic oil cooler, which is used to cool the hydraulic oil to ensure the normal operation of the hydraulic system in high - temperature environments.


If you have any questions about crawler type mobile jaw crushers, please click on the online customer service and get your exclusive mobile crusher plant solution.
