Baichy Ball Mill 1500x3000 Shipped to Zambia: Efficient Gold Ore Processing Solution

Baichy Machinery has successfully completed the shipment of a 1500x3000 ball mill to Zambia. This high-performance ball mill is designed for grinding various ores and materials, supporting Zambia’s mining sector—particularly in copper, cobalt, and gold processing. The shipment underscores Baichy’s commitment to delivering reliable solutions for small to medium-scale mining operations in Africa.

1.Ball Mill 1500x300 Technical Specifications

Model: BMQ 1500×3000
Cylinder Size: Φ1500mm×3000mm
Effective Volume: 5.2 m³
Motor Power： 75 kW
Rotation Speed： 29.7 r/min
Loading balls weight: 7.5 ton
Feeding Size： ≤25 mm
Discharging Size： 0.074–0.89 mm
Capacity： 2–5 t/h
Weight： 19.5 tons

2. Working Principle and Design Advantages

2.1 Grinding Mechanism

The 1500x3000 ball mill operates on the principle of impact and attrition:
- Material Feeding: gold ores are fed into the cylinder via a spiral feeder.
- Grinding Process: Steel balls inside the rotating cylinder strike and grind the material against the liner plates.
- Discharge: Ground material is discharged through a hollow shaft, with optional classifiers to control fineness.

2.2 Key Design Features

- High Grinding Efficiency: The ratio of cylinder length to diameter (2:1) optimizes the grinding zone, reducing energy consumption by 15% compared to traditional models.
- Wear-Resistant Liners: Made of high-manganese steel, liners withstand abrasive materials and have a service life of 8000+ hours.
- Integrated Lubrication System: Automatic oiling reduces bearing wear and maintenance frequency.

3.Service from Baichy Machinery

3-1 Logistics and Installation

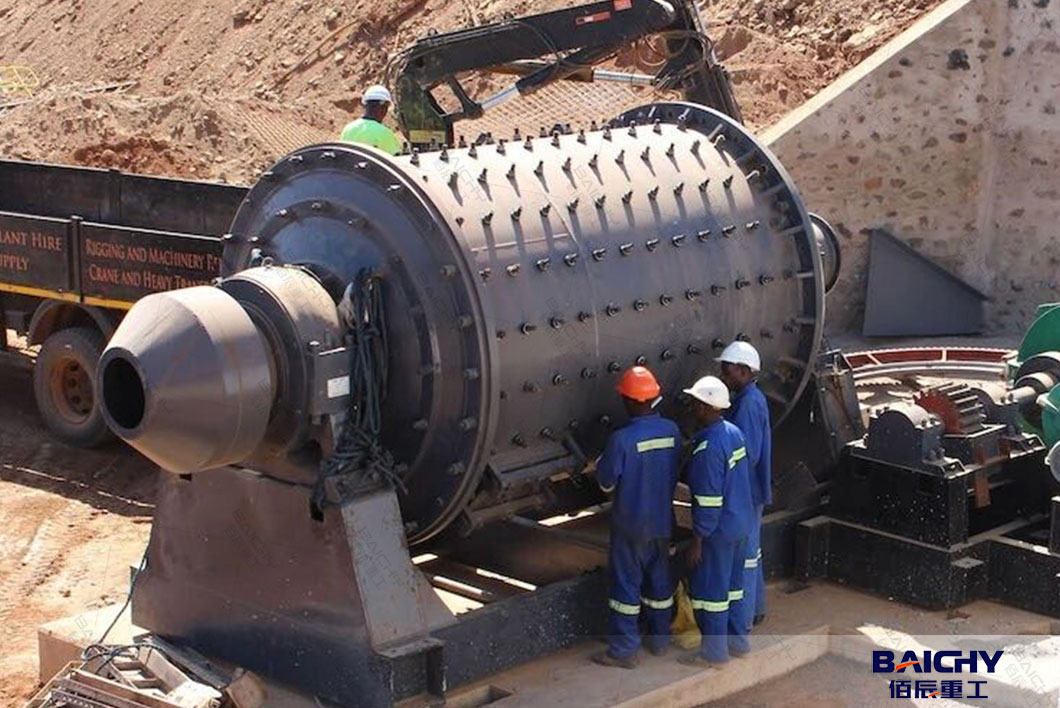

- Transportation: The ball mill was disassembled for container shipping, with components labeled for easy reassembly.
- On-Site Support: Baichy’s technical team provided:
- 3D layout planning for Zambia’s mine site.
- Installation guidance for foundations and electrical systems.
- Operator training on safety and maintenance.

3.2 Spare Parts and Service

- Spare Parts Kit: Included steel balls (7.5 tons), liner plates, and seal rings for 12 months of operation.
- Remote Support: 24/7 technical assistance via video conferencing for troubleshooting.

Conclusion

Baichy’s 1500x3000 ball mill shipment to Zambia exemplifies how efficient, affordable grinding solutions can empower Africa’s mining sector. By combining high-performance technology with localized support, Baichy helps Zambian miners enhance productivity, reduce costs, and contribute to the country’s economic growth. For similar mineral processing needs, contact Baichy Machinery for customized solutions tailored to your operation.
