Aggregate Processing: Key Equipment, Processes & Trusted Solutions for Construction

Aggregates—the sand, gravel, and crushed stone that form the literal bedrock of our society—are all around us. They form the foundation of roads, bridges, buildings, and railways. For anyone in construction, quarrying, or recycling, understanding aggregate processing—from extraction to finished product—is critical to delivering quality, efficiency, and profitability. This blog breaks down the essentials in simple, professional terms.

What Are Aggregates Exactly?

The Portland Cement Association (PCA) defines aggregates as “inert granular materials” like sand, gravel, or crushed stone. They’re classified by size:
- Fine aggregates: Particles smaller than 5mm (e.g., sand, silt).
- Coarse aggregates: Particles larger than 5mm (e.g., gravel, crushed stone, slag).

Their primary role? Providing stability and strength to composite materials like concrete and asphalt. Without high-quality aggregates, infrastructure projects would lack durability and structural integrity.

The Core Aggregate Processing Workflow

Every aggregate production plant follows a similar sequence of steps—adapted to raw materials (e.g., limestone, granite, construction waste) and desired end products. Here’s how it works:

1. Extraction (The First Step)

Aggregates are sourced from natural quarries or recycled from demolition sites (e.g., crushed concrete). Heavy earthmoving equipment does the heavy lifting:
- Excavators (crawler or wheeled): Dig out raw materials from quarries or demolition sites.
- Loaders: Transport extracted materials to the processing plant’s feeding system.

2. Feeding: Steady Flow = Consistent Production

A vibrating feeder regulates the flow of raw materials into crushers and screens. This prevents jams, protects downstream equipment, and ensures an even production pace—critical for avoiding bottlenecks.

3. Crushing: Reducing Size in Stages

Most raw materials are too large for direct use, so crushing happens in 1–3 stages to achieve the right particle size:

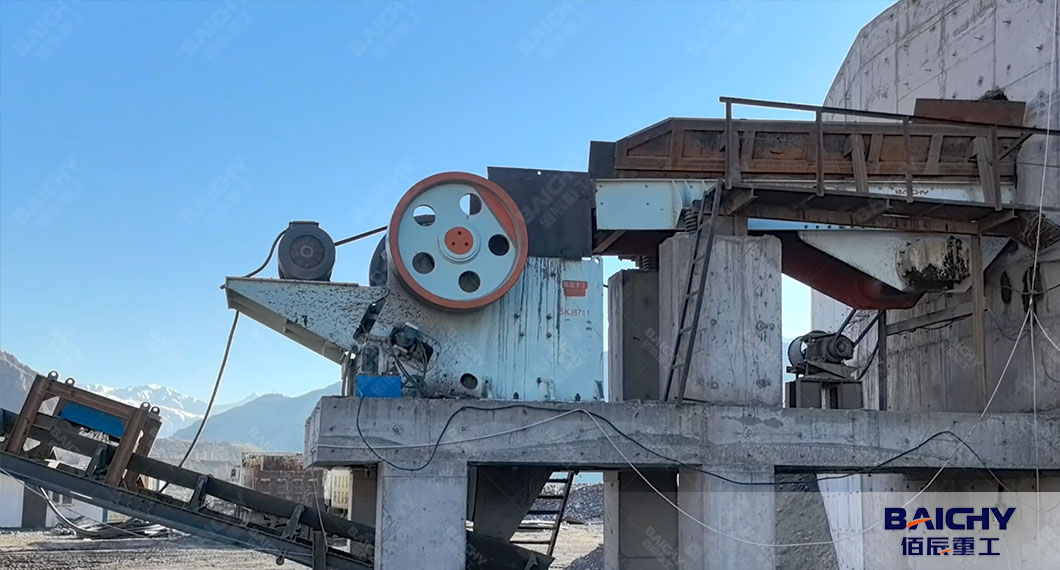

- Primary crushing: Uses jaw crushers (or gyratory crushers for large-scale operations) to break down 500mm+ rocks into 100–150mm chunks. Jaw crushers are ideal for hard, large rocks like granite.
- Secondary/tertiary crushing: Refines the material further. Cone crushers (for hard rocks) or impact crushers (for brittle materials like limestone or concrete) produce cubic-shaped particles—perfect for concrete and asphalt. Some plants add a fourth “quaternary” stage for ultra-fine aggregates.

4. Screening: Sorting by Size

After crushing, vibrating screens (the most common type) separate aggregates into graded sizes (e.g., 0–5mm, 5–10mm, 10–20mm). Oversized particles are sent back to crushers for reprocessing, while correctly sized materials move to the next step. Rotary screens or trommel screens are used for specific material characteristics.

5. Washing (Optional but Critical for Quality)

Wash plants remove dirt, silt, and impurities from aggregates—ensuring they meet industry standards (e.g., for concrete or road base). Equipment like sand washers, classifiers, and cyclones cleans the material and improves its usability. Washing also reduces on-site dust, helping plants comply with environmental regulations.

6. Conveying & Stockpiling

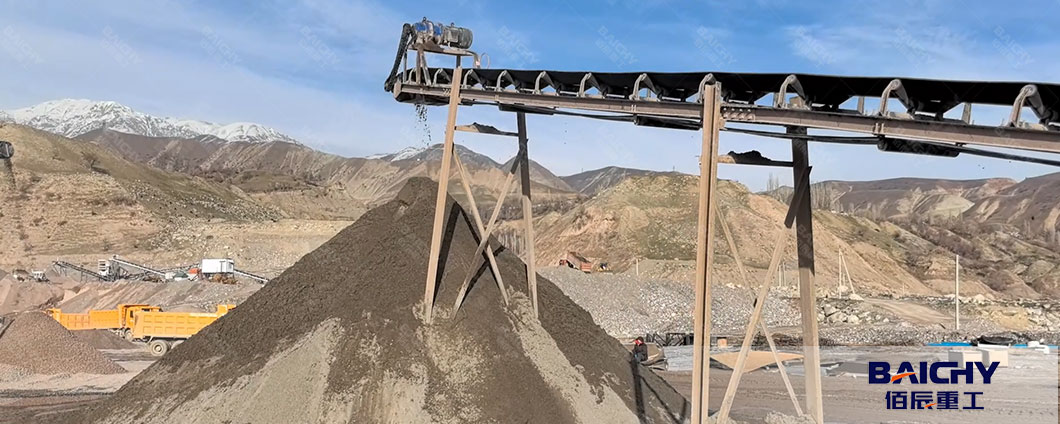

Belt conveyors (or screw conveyors, bucket elevators for vertical transport) move materials between processing stages. Stackers then build organized stockpiles of finished aggregates, ready for delivery or on-site use.

Why Aggregate Processing Matters (Beyond Concrete)

Aggregate production is vital to global infrastructure growth. As populations expand, demand for roads, bridges, and buildings increases—driving the need for efficient, sustainable aggregate plants. Recycled aggregates (from construction waste) are also growing in popularity, offering an eco-friendly alternative to natural quarries.

A well-designed plant with quality equipment delivers three key benefits:

● Consistent quality: Graded, clean aggregates improve the performance of end products.
● Cost efficiency: Reduced energy use, minimal waste, and less downtime lower operational costs.
● Compliance: Dust control, washing, and emissions reduction help meet environmental regulations.

Final Thoughts: Invest in Reliability

Aggregate processing is a foundational part of construction—there’s no cutting corners on equipment or expertise. Whether you’re building a new plant, upgrading existing systems, or recycling construction waste, partnering with a trusted supplier ensures your operation runs safely, smoothly, and profitably.

If you need help selecting equipment, designing a custom plant, or troubleshooting your current setup—reach out to a reputable aggregate solutions provider, such as Baichy Machinery. We will work with you to meet your specific goals, from raw material to finished product.
