5 Stand-out Features Of Impact Crusher Machine You Should Know

Impact crushers are essential in mining, construction, and recycling for their ability to produce high-quality aggregates with precision. Unlike traditional compression-based crushers, they use high-speed impact to break materials, offering unique advantages. Here are five standout features that make them a preferred choice across industries:

1. High-Quality Cubical Aggregates

- How It Works: Impact crushers use horizontal shafts with rotating blow bars to hurl materials against fixed impact plates or aprons. This impact-based crushing creates minimal fines and produces uniformly shaped, cubical particles.
- Why It Matters:
- Ideal for applications requiring strong, interlocking aggregates (e.g., concrete, asphalt, and road base materials).
- Reduces the need for tertiary crushing stages, saving time and energy.
- Example: In concrete production, cubical aggregates enhance structural strength by minimizing voids compared to angular particles from jaw crushers.

2. Adjustable Particle Size Control

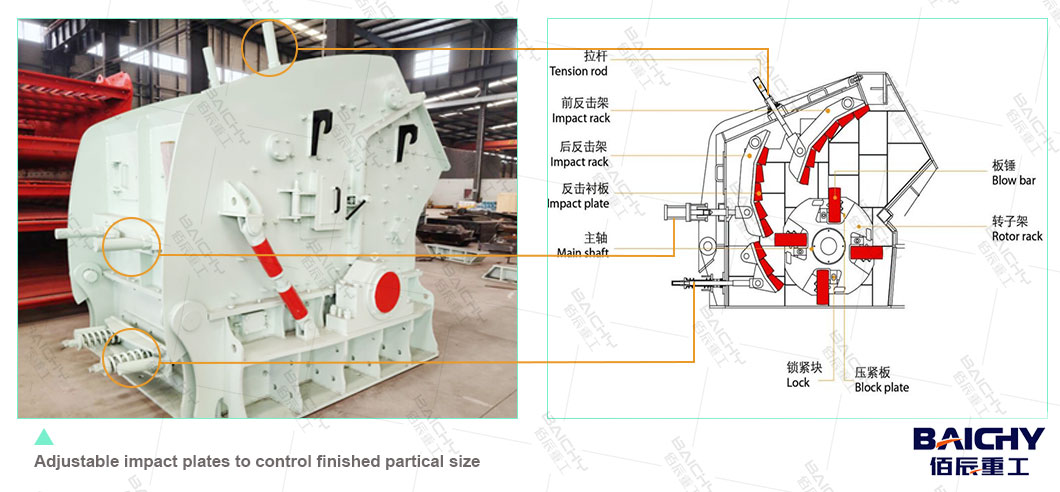

- Flexible Discharge Settings: Most impact crushers feature adjustable impact plates or aprons that let operators modify the distance between the rotor and impact surface.
- Precision Crushing:
- Fine-tune output sizes from coarse (40 mm) to very fine (5 mm) without changing major components.
- Suitable for multi-stage crushing systems or standalone operations.
- Application: Recycling plants can easily switch between producing road base (20–40 mm) and recycled sand (<5 mm) by adjusting settings on the fly.

3. High Reduction Ratio for Efficient Processing

- Single-Pass Crushing: Impact crushers achieve a reduction ratio of up to 30:1, meaning they can break 300 mm rocks into 10 mm particles in one pass.
- Cost Savings:
- Eliminates the need for secondary or tertiary crushers in some applications, reducing equipment and maintenance costs.
- Higher throughput (up to 500 TPH in large models) improves productivity for medium-hard materials like limestone, dolomite, and gypsum.
- Comparation: Cone crushers typically have a lower reduction ratio (8:1–10:1), requiring more stages for the same output.

4. Versatility for Diverse Materials

- Material Range: Effective for soft to medium-hard materials (抗压强度 < 250 MPa), including:
- Limestone, sandstone, and coal.
- Recycled concrete, asphalt, and brick.
- Not for Hard Rocks: Less suitable for extremely hard materials (e.g., granite, basalt), where cone crushers excel due to their compression-based design.
- Recycling Edge: Impact crushers can handle mixed materials (e.g., concrete with rebar) thanks to their open rotor design, which reduces clogging risks.

5. Low Maintenance & Easy Operation

- Quick Component Replacement:
- Blow bars and impact plates are accessible from the front or top, allowing fast replacement without disassembling the entire crusher.
- Many models use hydraulic adjustment systems to simplify maintenance tasks.
- Reduced Downtime:
- Wear parts are made from high-chromium steel or manganese steel for longevity (e.g., blow bars last 500–1,000 hours in standard applications).
- Automated lubrication systems (optional) minimize bearing wear and extend service intervals.
- User-Friendly Controls: Modern impact crushers integrate with PLC systems for real-time monitoring of rotor speed, feed rate, and temperature.

When to Choose an Impact Crusher

- Applications:
- Aggregate production for construction (concrete, asphalt).
- Recycling C&D waste into reusable materials.
- Mining soft ores (e.g., coal, phosphate).
- Avoid For:
- Hard rock mining (use cone/jaw crushers instead).
- High-abrasive materials (e.g., quartzite), which accelerate wear on impact plates.

Impact crushers stand out for their ability to produce superior aggregate shape, offer adjustable precision, and simplify maintenance—making them a staple in recycling and medium-hard material processing. By understanding these features, you can optimize crushing efficiency, reduce costs, and meet strict quality standards in your operations. Whether for a small recycling plant or a large quarry, an impact crusher’s versatility and performance make it a valuable asset.
