Jaw Crusher

Jaw Crusher

Jaw crusher is a kind of stone crusher machine which is widely used as primary or secondary crusher in stone crushing plant. The purpose is to reduce hard stone material to a small size that it can be transported by conveyors to the next crushing stages.

  • 100-1200mmFeed Size
  • 5.5-280KWMotor Power
  • 5-700t/hProcessing capacity

What is jaw crusher?

Jaw crusher is a stone crushing equipment with high production capacity, large crushing ratio, and high crushing efficiency. It is mainly used for primary and secondary crushing of hard or medium-hard stones. It can process all kinds of ores with compressive strength not higher than 320MPa to medium particle size at one time. It is often combined with cone crusher, impact crusher, sand making machine, etc. to form a complete set of sand and gravel production plant. PE jaw crusher is widely used in mining, metallurgy, chemical industry, building materials, electric power, water conservancy, transportation and other fields.
jaw crusher equipment primary jaw crusher

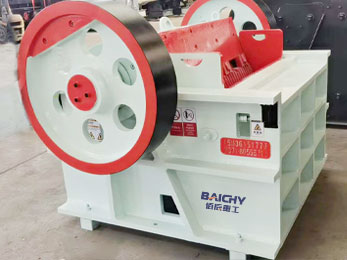

PE jaw crusher
jaw crusher equipment primary jaw crusher

How to choose jaw crusher machine?

1.Model: Jaw crusher model depends on the size of the feeding port. Choosing suitable model is the main factor that buyers need to consider in the initial stage. The size of the model determines the production capacity range of stone crusher.

2.Feed port size: raw material size determines the size of jaw crusher feeding port. The larger the crushed material, the larger the size of jaw crusher feeding port. Large size stones need to choose a large-sized feed port to meet the production needs, and at the same time avoid troubles caused by inappropriate models.

3.Processing capacity: The processing capacity of jaw crushing machine is a key factor to purchase stone crusher. The output per hour is one of the reference factors. It determines the scale of stone production plant.

4.Motor power: The motor power is determined in combination with the overall size of stone crushers. If the equipment is large and the motor power is too small, it will definitely not be able to carry it. Choosing a reasonable electric power will help improve the production efficiency of jaw crusher.

In addition to meeting your own production needs, the appearance and configuration of stone crushing equipment, you also need to investigate and understand the production strength of stone crusher manufacturer. Henan Baichy Machinery Equipment Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The hot jaw crushers manufactured by our company can be further divided into four types: PE jaw crusher, PEX fine jaw crusher, C-series jaw crusher , SKJ jaw crusher and mobile jaw crusher.


Get Price List
  • High Quality

    Heavy-duty designed jaws crusher frame. High manganese steel castings jaw plate can be reversed to extend life and save cost. Gasket adjusting device is reliable and convenient.

  • Customized Design

    Baichy jaw crusher machine could be made in mobile type crushing plant, or stationary primary crushing machine in mining and quarry plant.

  • Good Performance

    Deep crushing chamber is to improve feeding and output capacity. Baichy jaw crusher is developed to crush hard stones in maximum productivity at the lowest operating costs. Wide adjustment range of discharging port meets different demands.

Product features

Baichy jaw crusher is for sale in Indonesia, Philiphines, Malaysia, Kenya, South Afica, Peru, Chile, Australia, Uzbekistan etc. It could be customized to mobile jaw crusher too.

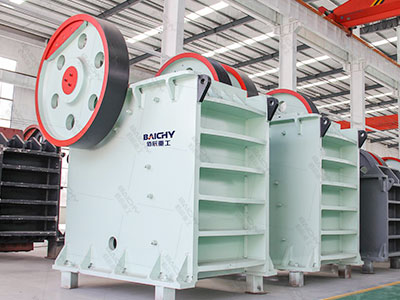

  • jaw crusher for sale

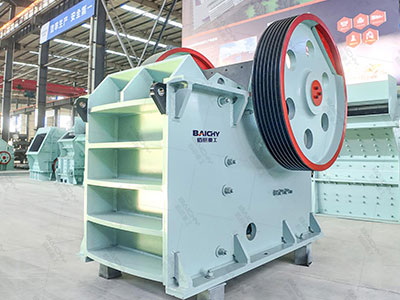

  • mining jaw crusher

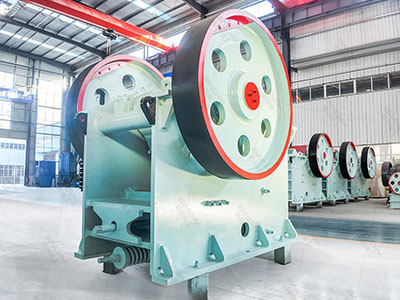

  • jaw crusher 500x750

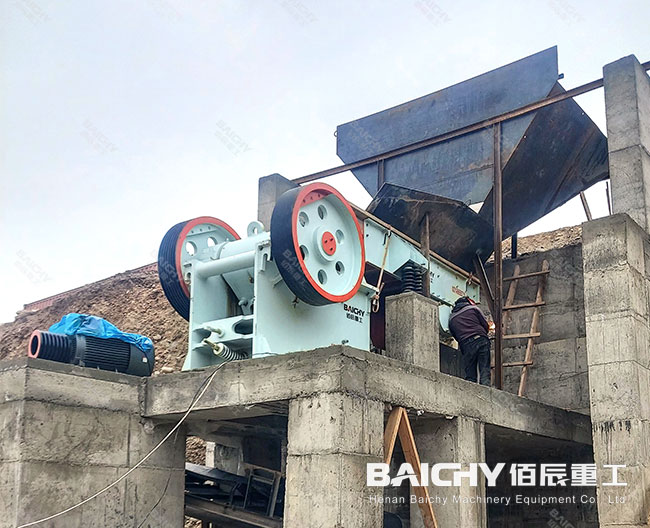

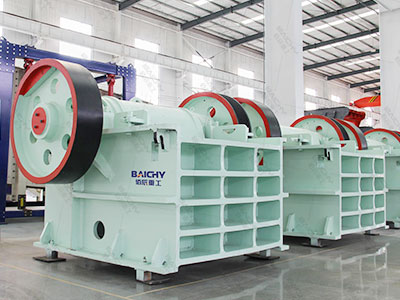

  • PE jaw crusher price

Working principle

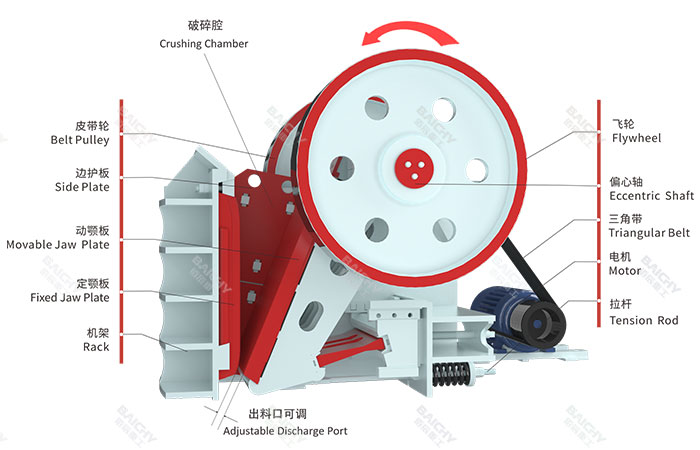

How Does A Jaw Crusher Work?

Jaw Crusher machine uses compressive force to break hard stone material, such as granite, basalt, limestone, gold ore,boulders etc. There two vertical manganese jaw plates create a V-shaped cavity called crushing chamber, where the top of the crushing chamber is larger than the bottom.

The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces.As the moving jaw moves away from the fixed jaw, the crushed material is discharged from discharge opening at the bottom.

The required rock size is determined by the gap between the jaws.

stone jaw crusher

Specification

PE series jaw crusher





Model

Feeder Opening

Size(mm)

Max. Feeding

Size (mm)

Outlet adjusting

Size(mm)

Capacity

(t/h)

Motor Power

(kw)

Overall Dimension

(mm)

PE250x400 250x400 210 25-60 5-20 15 1215x1240x1210
PE400x600 400x600 350 40-90 15-60 30 1700x1750x1680
PE500x750 500x750 425 50-100 40-130 45 2150x1900x1950
PE600x900 600x900 500 60-125 90-180 55 2500x2010x2350
PE750x1060 750x1060 630 60-150 110-380 110 2630x2310x3110
PE900x1200 900x1200 750 95-165 220-450 132 3720x2850x3250
PE1000x1200 1000x1200 850 200-300 280-560 160 3820x2850x3250
PE1200x1500 1200x1500 1020 150-300 400-800 220 4590×3342×3553
PE1500x1800 1500x1800 1200 210-360 520-1100 280 5100x4700x4300







PEX series jaw crusher





Model

Feeder Opening

Size(mm)

Max. Feeding

Size (mm)

Outlet adjusting

Size(mm)

Capacity

(t/h)

Motor Power

(kw)

Overall Dimension

(mm)

PEX150x750 150x750 120 10-40 5-16 15 1310x1118x1145
PEX250x750 250x750 210 15-50 15-30 22 1440x1751x1515
PEX250x1000 250x1000 210 15-60 15-52 30 1730x1950x1400
PEX250x1200 250x1200 210 15-60 20-60 37 1730x2150x1400
PEX300x1300 300x1300 250 25-60 30-105 55 2000x2320x1730

*The output will vary according to different materials, feed particle size and other factors
