A jaw crusher is one of the most commonly used primary crushing machines in mining, quarrying and aggregate production. It reduces large rocks into smaller sizes by using compressive force between a fixed jaw plate and a moving jaw plate.
Although jaw crushers have a simple working principle, they consist of several important components that work together to ensure stable crushing performance. Understanding the main parts of a jaw crusher helps operators improve equipment efficiency, reduce downtime and select the correct spare parts.
This guide explains the key jaw crusher components, their functions, common wear problems and maintenance considerations.

A typical jaw crusher consists of several major components, including:
- Jaw plates
- Moving jaw assembly
- Fixed jaw plate
- Toggle plate
- Eccentric shaft
- Pitman
- Flywheel
- Bearings
- Crusher frame
- Discharge opening adjustment system
Each component plays an important role in the crushing process. Some parts are structural components, while others are wear parts that need regular inspection and replacement.
A jaw crusher structure can be divided into three main systems:
1. Crushing system
Includes fixed jaw plate and moving jaw plate, which directly contact and crush the material.
2. Driving system
Includes eccentric shaft, flywheel and bearings, which provide the movement required for crushing.
3. Supporting and adjustment system
Includes frame, toggle plate and discharge opening adjustment components.

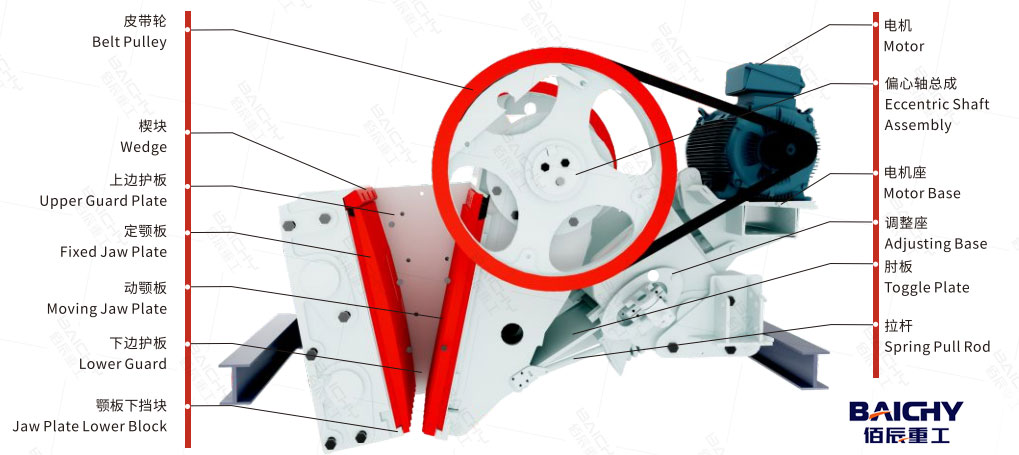

A clear jaw crusher parts diagram helps operators understand the location and function of each component.
Function of Jaw Plates
Jaw plates are the most important wear parts of a jaw crusher. They directly contact the feed material and create the crushing force through repeated compression.
A jaw crusher usually includes:
- Fixed jaw plate
- Moving jaw plate
The fixed jaw plate remains stationary, while the moving jaw plate moves back and forth through the eccentric shaft mechanism.
Wear Characteristics
Because jaw plates directly crush abrasive materials such as granite, basalt, iron ore and limestone, they experience the highest wear rate among jaw crusher components.
Signs that jaw plates need replacement include:
- Reduced crushing capacity
- Increased product size
- Uneven wear pattern
- Higher energy consumption
Choosing the correct jaw plate material and profile can significantly improve service life.
Function of Toggle Plate
The toggle plate is located between the moving jaw assembly and the crusher frame. It has two main functions:
1. Transfer crushing force from the driving mechanism to the moving jaw.
2. Protect the crusher from overload damage.
When uncrushable materials enter the crushing chamber, the toggle plate can act as a safety device by breaking before more expensive components are damaged.
Maintenance Tips
Operators should regularly check:
- Toggle plate wear
- Contact surface condition
- Lubrication condition
A damaged toggle plate can affect crushing efficiency and equipment safety.
Function of Eccentric Shaft
The eccentric shaft is the main driving component of a jaw crusher.
When the motor rotates the shaft, the eccentric movement causes the moving jaw to swing and crush materials between the jaw plates.
The eccentric shaft must withstand:
- High impact loads
- Continuous vibration
- Heavy crushing pressure
Proper lubrication and bearing maintenance are important for extending shaft service life.
Function of Pitman
The pitman is the main moving part connected to the eccentric shaft. It transfers the rotational movement of the shaft into the reciprocating movement of the moving jaw.
A strong pitman design ensures:
- Stable crushing operation
- High mechanical strength
- Reliable performance under heavy loads
In mining applications, the pitman must withstand thousands of crushing cycles every day.
Function of Flywheel
The flywheel stores rotational energy generated by the motor and helps maintain smooth operation.
Its main advantages include:
- Reducing vibration
- Balancing crushing force
- Improving energy efficiency
A properly balanced flywheel contributes to stable jaw crusher performance.
Function of Bearings
Bearings support the rotating components, especially the eccentric shaft.
High-quality bearings help:
- Reduce friction
- Improve operating stability
- Extend equipment service life
Bearing problems are usually caused by:
- Insufficient lubrication
- Excessive load
- Dust contamination
- Improper installation
Regular inspection is necessary for reliable operation.
Function of Crusher Frame
The crusher frame is the main supporting structure of a jaw crusher.
It holds all major components together and absorbs the crushing force generated during operation.
A strong frame design improves:
- Equipment durability
- Structural stability
- Long-term reliability
For heavy-duty mining applications, the frame must be designed to withstand continuous impact loads.

Uneven jaw plate wear is one of the most common problems during jaw crusher operation. It usually occurs when materials are not evenly distributed across the crushing chamber, causing some areas of the jaw plate to experience more pressure and friction than others. Feeding oversized rocks, incorrect feeding methods, improper crusher installation, or unsuitable jaw plate profiles can accelerate uneven wear.
Uneven wear reduces the effective crushing area, decreases production capacity and may result in inconsistent final product sizes. To solve this problem, operators should ensure uniform feeding, avoid material accumulation on one side of the crushing chamber, regularly inspect jaw plate conditions and adjust or replace the plates when necessary. Selecting the correct jaw plate design based on material hardness and application conditions can also improve wear resistance and extend service life.
Excessive vibration is another common issue that affects jaw crusher components and overall equipment stability. While some vibration is normal during crushing, abnormal or increased vibration may indicate problems with key parts such as bearings, flywheel, foundation bolts or the eccentric shaft assembly.
Common causes include loose mechanical connections, damaged bearings, improper installation, unbalanced rotating parts or uneven material feeding. Continuous vibration can accelerate wear of internal components, reduce crushing efficiency and potentially lead to unexpected equipment downtime.
To reduce excessive vibration, operators should regularly check bolts and foundation connections, maintain proper lubrication of bearings, inspect the eccentric shaft and ensure the crusher is installed on a stable foundation. Early detection of vibration problems helps prevent more serious mechanical failures and extends the service life of jaw crusher parts.
Reduced crushing capacity usually indicates that jaw crusher components are not operating at their optimal condition. The most common causes include worn jaw plates, incorrect discharge opening settings, insufficient feeding conditions or material blockage inside the crushing chamber.
When jaw plates become excessively worn, the contact area between the crushing surfaces decreases, resulting in lower crushing efficiency and larger product size. In addition, improper adjustment of the discharge opening can affect both output capacity and product gradation.
To maintain stable production, operators should regularly inspect wear parts, adjust the discharge opening according to production requirements and remove any material blockage in time. Replacing worn jaw plates before they significantly affect performance and maintaining proper feeding conditions can help improve crushing efficiency and reduce operating costs.
Proper jaw crusher maintenance can significantly reduce operating costs.
Recommended practices include:
- Regular Inspection
Check wear parts, lubrication system and mechanical connections regularly.
- Correct Feeding
Avoid feeding oversized rocks or uneven material flow, which can accelerate component wear.
- Timely Replacement
Replace worn jaw plates and other spare parts before they affect the performance of the entire crusher.
- Use Suitable Spare Parts
Different materials require different jaw plate designs. Selecting suitable spare parts improves crushing efficiency and reduces replacement frequency.
When selecting jaw crusher spare parts, consider:
- Material Characteristics
Hard and abrasive materials require wear-resistant jaw plates.
- Crusher Model
Spare parts must match the specific jaw crusher model and dimensions.
- Operating Conditions
Mining, quarry and aggregate applications may require different wear solutions.
- Manufacturer Experience
A professional crusher manufacturer can provide suitable recommendations based on material properties and production requirements.
With years of experience in crushing and screening equipment manufacturing, Baichy provides jaw crusher solutions for mining, quarrying and aggregate industries.
Baichy focuses on:
- Reliable Equipment Design
Jaw crushers are designed for stable performance under demanding working conditions.
- Complete Spare Parts Support
A full range of jaw crusher spare parts helps customers maintain continuous production.
- Application-Based Solutions
Equipment selection is based on material properties, capacity requirements and final product size.
- Technical Support
Professional guidance helps customers improve crushing efficiency and reduce operating costs.

1. What are the most important parts of a jaw crusher?
The most important parts include jaw plates, eccentric shaft, toggle plate, pitman, flywheel, bearings and crusher frame.
2. Which jaw crusher parts wear out fastest?
Jaw plates usually wear out fastest because they directly crush abrasive materials.
3. How often should jaw crusher plates be replaced?
Replacement frequency depends on material hardness, feeding size, operating hours and crushing conditions.
4. What causes jaw crusher parts failure?
Common causes include improper maintenance, insufficient lubrication, overload operation and incorrect spare parts selection.
5. Are jaw crusher spare parts interchangeable?
No. Spare parts must match the crusher model and design specifications to ensure proper performance.
