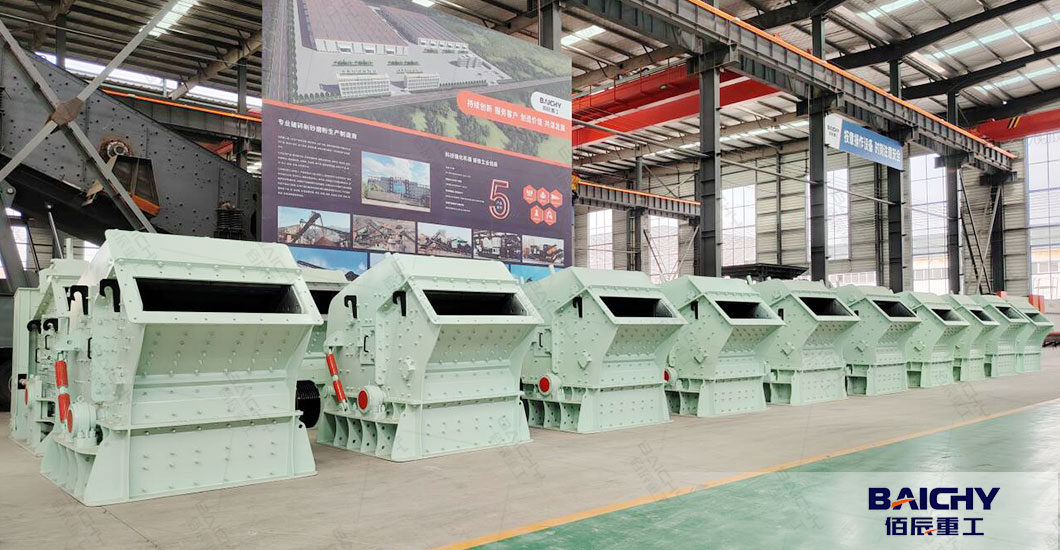

Comparing the 3 Best Alternatives to Impact Crushers

Impact crushers are widely used for producing uniform, cubical-shaped aggregates, but they may not always be the best choice due to high wear costs, excessive fines production, or energy consumption. Depending on your material type and production goals, these three alternatives could offer better efficiency, lower operating costs, and longer lifespan. There are several alternative crushers that also offer unique advantages. Here, we compare the three best alternatives to impact crushers: jaw crushers, cone crushers, and roll crushers.

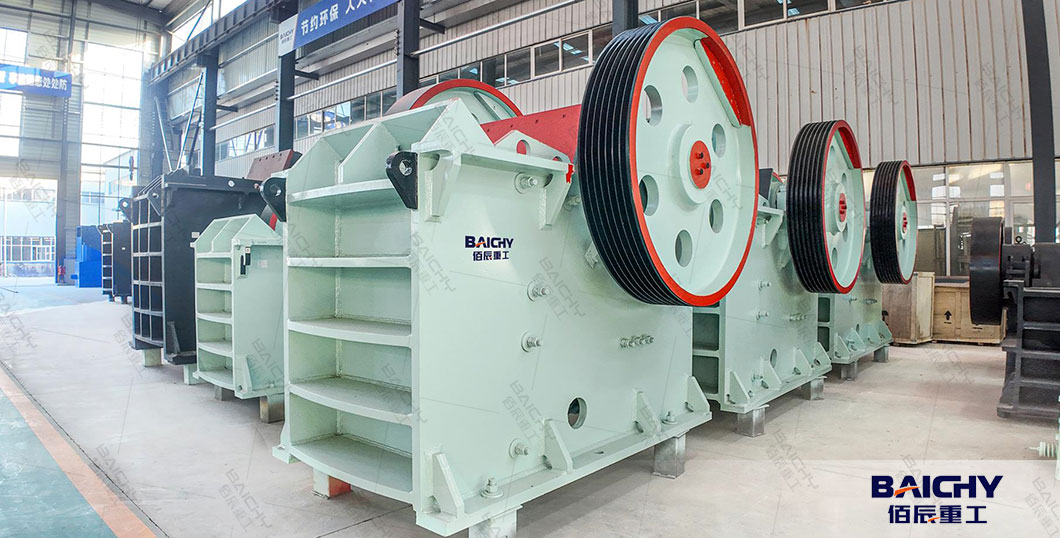

Jaw Crushers

Working Principle: Jaw crushers use a compressive force to break materials. They have a fixed jaw and a movable jaw that work together to squeeze the material between them, reducing it in size.

Advantages: They are known for their high crushing ratio and ability to handle large - sized materials. Jaw crushers are also very durable and require relatively low maintenance. They are suitable for primary crushing in various applications, including mining, quarrying, and construction.

Disadvantages: The particle shape of the output may not be as good as that of impact crushers, often producing more angular and less cubical particles. They also have a lower production capacity compared to some other crushers for the same power consumption.

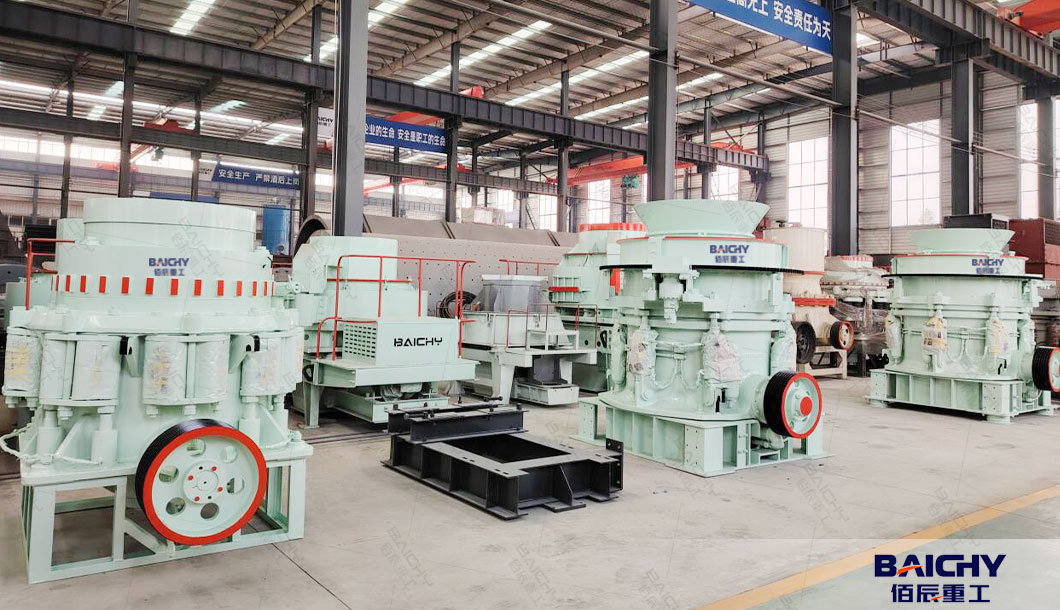

Cone Crushers

Working Principle: Cone crushers operate by using a conical crushing chamber. The material is fed into the top of the chamber and is crushed between the mantle (a movable conical part) and the concave (a fixed conical part) as it moves downward.

Advantages: They are excellent for producing fine - grained materials with a more uniform particle size distribution. Cone crushers are highly efficient in secondary and tertiary crushing stages and can handle hard and abrasive materials well. They also have a relatively high production capacity and a stable operation.

Disadvantages: The initial cost of cone crushers is relatively high. They require more complex maintenance and adjustment compared to jaw crushers, and the replacement of wear - parts can be expensive.

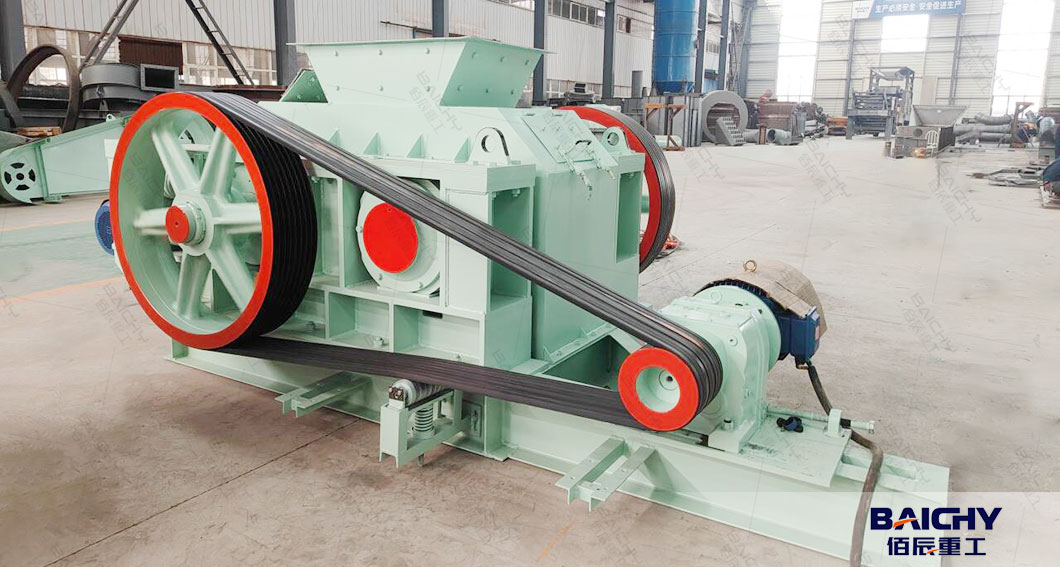

Double Roller Crushers

Working Principle: Double Roll crushers consist of two or more rolls that rotate towards each other. The material is fed into the gap between the rolls and is crushed by the combined action of compression and shear forces.

Advantages: They are gentle on the material, which is beneficial for applications where the integrity of the material needs to be maintained to some extent, such as in the processing of coal or soft ores. Roll crushers can produce a relatively high - quality product with a low - dust output. They are also relatively simple in structure and easy to operate.

Disadvantages: They have a lower crushing ratio compared to impact crushers and other alternatives. Roll crushers are not suitable for processing hard and brittle materials, as the rolls can wear out quickly. Their production capacity is also relatively limited.

Which Alternative Should You Choose?

For hard, abrasive rock? → Cone Crusher
For high-quality sand production? → Jaw + VSI
For energy savings in coarse crushing? → HPGR

Impact crushers remain a strong choice for soft to medium-hard materials, but if your operation struggles with high wear costs, excessive fines, or energy inefficiency, these alternatives could be more cost-effective. In summary, the choice between these alternative crushers and impact crushers depends on various factors such as the type of material to be processed, the required particle size and shape, the production capacity, and the budget. Each of these crushers has its own strengths and weaknesses, and understanding them can help in making an informed decision for a specific crushing application.
