How Big of a Rock Can a Jaw Crusher Crush: A Complete Guide​

If you are feeding a jaw crusher, the most critical question is: “How big of a rock can this machine actually handle?” Putting a rock that is too large into the crusher chamber is the fastest way to cause a "bridge" (blockage), damage the jaws, or stall the operation entirely. In this guide, we will synthesize industry best practices, manufacturer data, and the 80% Rule to give you a definitive answer. Whether you are using a small mobile crusher or a massive primary station, you will learn exactly how to match rock size to your machine.

The Short Answer: The 80% Rule

In the crushing industry, the maximum allowable rock size is not just about the physical opening; it is about operational safety and throughput.

The Industry Standard: A jaw crusher can crush rocks that are 80% of the width of its feed opening (gape).

This 20% safety margin is essential. It provides the necessary clearance for the rock to enter the crushing chamber without getting stuck or damaging the fixed and moving jaw dies.

The Detailed Breakdown: Size vs. Capacity

Not all jaw crushers are created equal. The maximum feed size varies drastically depending on whether the machine is designed for primary, secondary, or small-scale applications.

Here is a Size Chart based on real-world equipment specifications (combining data from Baichy, Superior Industries):

3 Rules for Sizing a Jaw Crusher

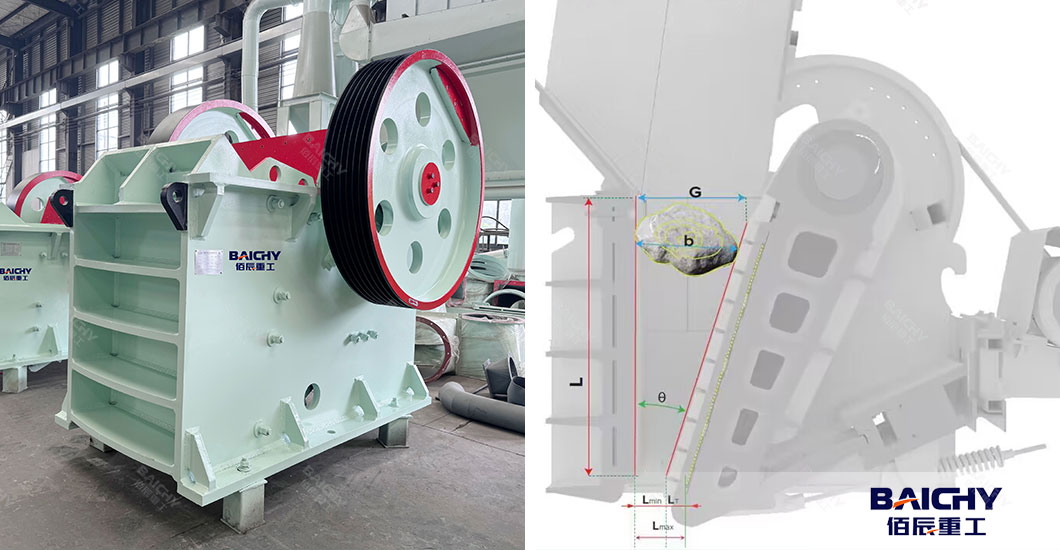

Rule #1: Measure the "Gape," not the "Set"

The Gape is the distance between the jaw dies at the top (feed opening). The Closed Side Setting (CSS) is the gap at the bottom (output size). The maximum rock size is a function of the TOP opening, not the bottom discharge. Do not confuse the two.

Rule #2: Harder Rocks = Smaller Feed

   ● Soft Rock (Limestone/Sandstone): You can push towards the 85% limit of the opening.

   ● Hard Rock (Granite/Basalt/Iron Ore): Stick strictly to 80% or even 75% . Harder rocks require more energy to crush and are more likely to cause "spalling" or damage if they are too tight.

Rule #3: Account for "Bridging"

If a rock perfectly fits the width of the opening, it will likely get stuck. This is called "bridging." It creates a vacuum below, halts production, and requires dangerous downtime to clear. The 80% rule is mathematically designed to prevent bridging.

What Happens if the Rock is Too Big?

If you ignore these guidelines and feed a rock that is 95% of the crusher’s opening, three things happen:

   ●  Mechanical Stalling: The rock gets jammed between the jaws. The flywheel cannot generate enough momentum to break it, and the crusher seizes.

   ● Jaw Plate Fracture: The extreme force concentrates on the smallest surface area, cracking the manganese steel jaw dies.

   ● Belt Slippage/Burning: The drive belts slip on the sheaves, generating extreme heat and often snapping or burning.

Here is a refere

So, How big of a rock can a jaw crusher crush?

   ● The mathematical answer is: (Feed Opening Width) x 0.80 = Max Rock Size.

   ● The practical answer is: It depends on the rock type. Always measure your largest rock dimension before feeding. If you are looking to process material larger than 40 inches (1000mm) regularly, you need a heavy-duty Primary Jaw designed for that specific task.

   ● Pro Tip: Before buying or renting a crusher, always ask the manufacturer for the specific "Maximum Feed Opening" and subtract 20% to find your safe operating range.

This is a reference date showing the corresponding jaw crusher models suitable for different stone sizes.

People Also Frequently Asked For - FAQ

Q: Can a jaw crusher crush asphalt?

A: Yes, but carefully. Asphalt is sticky and soft. If the rock (or chunk of asphalt) is too large, it will not fracture like stone; it will compress into a "puck" and block the crusher. Stick to the 80% rule, but consider pre-screening fines.

Q: Can it crush reinforced concrete?

A: Yes. Jaw crushers are excellent for concrete. However, rebar (metal) can puncture the side of the crusher if the pieces are too big. Ensure the concrete chunk is small enough to pass through the opening without rebar protruding.

Q: Can a Jaw Crusher Handle a 1-Meter Rock?

A: Yes.  Most standard large jaw crushers (like the PE-1200×1500 series) can handle rocks up to 1020mm (1.02 meters) .
If the rock measures 1.5 meters (1500mm) , a standard jaw crusher will likely choke. Only specialized extra-large jaw crushers or Gyratory crushers operate efficiently at that size. You would likely need a hydraulic hammer to break it down first.
