Baichy C116 Jaw Crusher Stone Rock Crushing Machine

C116 jaw crusher is a commonly used crushing equipment, which is widely applied in the aggregate production, mining operations, recycling and other fields. The following is a detailed introduction:

Main Parameters

It has a feed opening size of 1150×760mm, and can accept feed particles with a size of ≤610mm. The discharge particle size ranges from 70mm to 200mm. With a motor power of 132kw, it operates at a speed of 260 rpm, and has a production capacity of 165 -400t/h, with the equipment weighing 19.24 tons.

Structural Features:

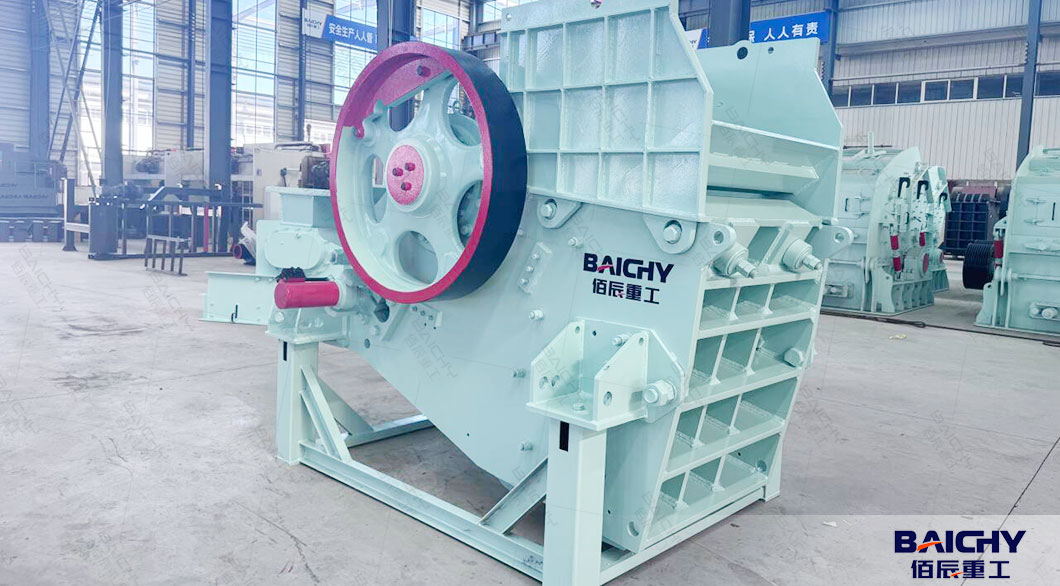

It usually adopts a pinned and bolted, non - welded frame construction. This structure can provide excellent fatigue strength. The frame components are cast from an in - house developed alloy, and some also have a honeycomb structure, which is stronger and more durable.

The moving jaw assembly is made of high - quality steel castings, and the integral cast - steel bearing seat ensures the reliability and durability of the equipment operation. The motor base is integrated with the main machine, which is simple to install and saves space.

Working Principle:

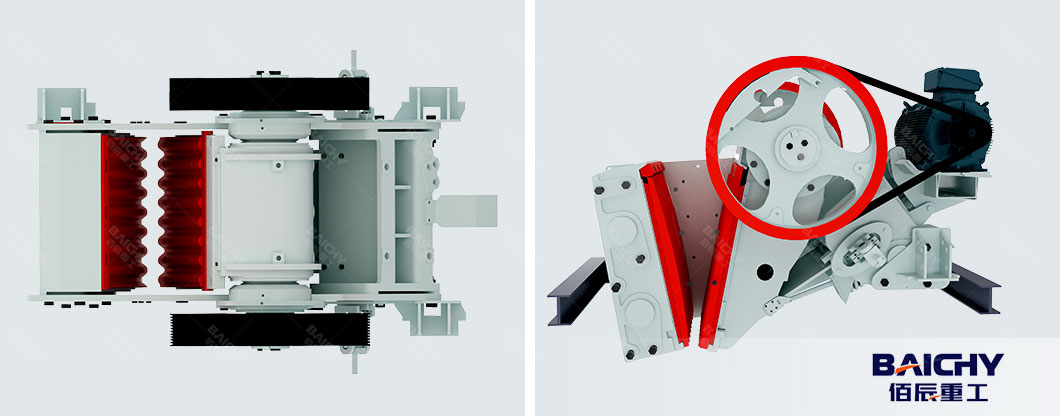

The jaw crusher motor drives the belt and pulley, and makes the movable jaw move back and forth and up and down through the eccentric shaft. The top of the crushing cavity is larger than the bottom. The moving jaw moves against the fixed jaw, and the material fed from the top of the cavity is compressed between the two jaws and crushed into smaller pieces. When the moving jaw moves away from the fixed jaw, the crushed material is discharged from the bottom discharge port.

Performance Advantages

1.High Production Efficiency: It has an aggressive pitman motion and a long stroke at the bottom of the cavity. The larger feed opening increases material intake, and the steeper nip angle reduces wear on jaw dies and speeds up material flow, resulting in high production capacity and a large crushing ratio.

2.Good Product Particle Size: The unique “V” - shaped symmetrical crushing cavity structure can make the material utilization rate of the jaw plate higher, and the crushed product particle size is more uniform. Moreover, the discharge opening can be adjusted hydraulically, and different particle size requirements can be met by adjusting the size of the discharge opening.

3.Reliable Operation: The optional Active Setting Control (ASC) system can automatically adjust the crusher settings to make uncrushable objects exit the cavity, preventing blockages and protecting the crusher from overload.

4.Convenient Maintenance: Based on long - term experience and customer - site testing, its critical wear - prone areas are well - protected. Components and parts that need to be replaced are easy to access, and the maintenance is convenient, which can minimize downtime.

Application Scenarios:

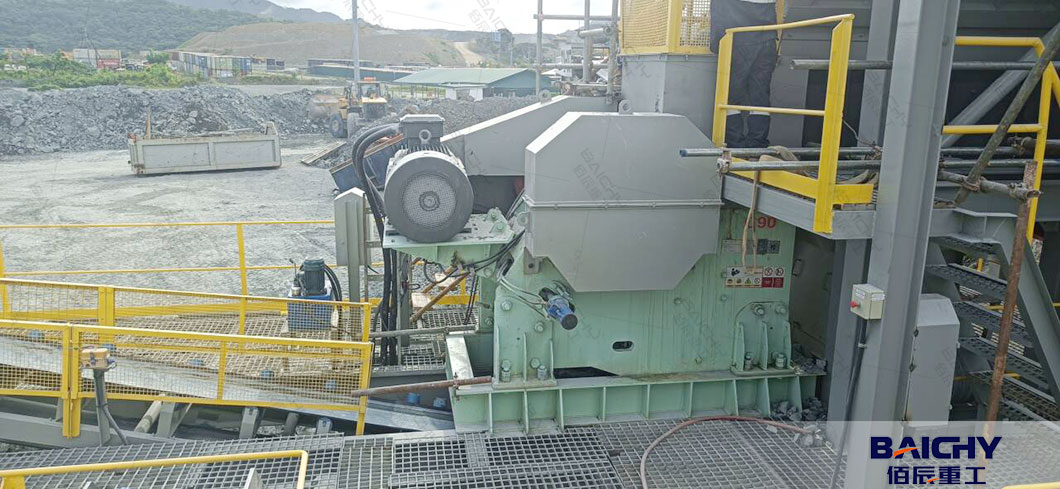

It is suitable for various harsh crushing applications, including surface and underground operations, and can be used as a primary crusher for the hardest rocks and recycled materials. In addition to stationary types, many models are also available in mobile or portable versions, which are suitable for aggregate and cement production, tunnel crushing, mining and recycling and other scenarios.

Baichy C - series jaw crusher can be customized according to specific needs.

Many C - series jaw crushers adopt a modular design, which provides a good foundation for customization. There are also optional integrated motor bases, which can directly install the crusher drive motor at the rear of the crusher. In addition, optional feeding chutes can ensure continuous feeding of the crusher, and there are also optional flywheel and drive device guards, maintenance platforms, etc.

Baichy Machinery can also customize the size, material, etc. of key components such as jaw plates according to customer needs to adapt to different crushing materials and working conditions. Some can also adjust the cavity type and running parameters of the crusher through simulation software to meet the specific requirements of users for production capacity, particle size, et. Welcome to get the specific solution and price for you.
