What Equipment Is Used To Separate Sand?

In industrial and construction settings, separating sand from other materials or grading it into specific particle sizes requires specialized equipment. The choice of machinery depends on factors like throughput, desired precision, material properties (e.g., moisture content), and whether separation is part of a larger process (e.g., mining, recycling, or aggregate production). Below is an overview of key equipment used for sand separation:

1. Screening Equipment: The Foundation of Sand Separation

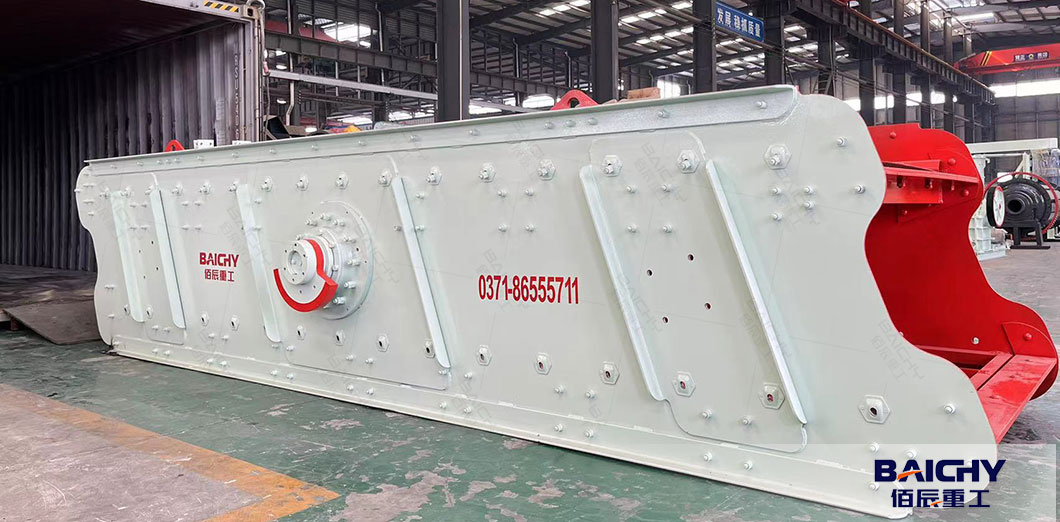

1.1 Vibrating Screens

- How They Work: Use vibratory motion to stratify particles, allowing smaller sand grains to pass through mesh screens while larger materials are retained.
- Types:
- Inclined Screens: Operate at 15–30° angles, ideal for high-capacity primary screening (e.g., 500+ TPH).
- Horizontal Screens: Feature multiple decks (up to 4) for precise grading into 3–4 sand fractions (e.g., 0–2 mm, 2–5 mm).
- High-Frequency Screens: Use rapid vibrations (1,500–7,000 RPM) to separate fine sands (<0.5 mm), common in mining and wastewater treatment.
- Applications: Separating sand from gravel, rocks, or debris in quarries, and classifying sand for concrete, glass, or foundry use.

1.2 Trommel Screens

- Design: Rotating cylindrical drums with perforated screens that separate sand as material tumbles inside.
- Advantages: Gentle handling reduces particle degradation; effective for wet or sticky materials (e.g., beach sand).
- Limitations: Lower precision than vibrating screens; best for coarse separations (e.g., >5 mm).

1.3 Grizzly Screens

- Structure: Parallel bars or steel plates with fixed gaps to remove oversized rocks (>50 mm) before finer screening.
- Role: Pre-screening in sand plants to protect downstream equipment (e.g., crushers, conveyors).

2. Washing and Classification Equipment

2.1 Sand Classifiers (Hydrocyclones)

- Working Principle: Use centrifugal force to separate sand by particle size and density. Larger particles settle to the bottom (underflow), while fines and water exit the top (overflow).
- Applications:
- Removing silt and clay (<0.075 mm) from sand for concrete production.
- Recycling wastewater in sand plants by recovering fine sand particles.

2.2 Spiral Classifiers

- Operation: Use inclined spirals to transport settled sand upwards while fines remain suspended in water.
- Benefits: Low energy consumption; suitable for continuous, large-scale operations (e.g., 100–500 TPH).

3. Air Classifiers: For Dry Separation

3.1 Dynamic Air Classifiers

- How They Work: Use centrifugal force and airflow to separate sand particles based on size and density. Coarse particles are thrown outward by rotating vanes, while fines are carried by air to a collector.
- Advantages:
- No water required, ideal for arid regions or water-scarce operations.
- Precise control over fine particle separation (e.g., 5–150 μm).
- Applications: Producing specialty sands for glassmaking, ceramics, or industrial abrasives.

4. Magnetic Separators: Removing Ferrous Contaminants

4.1 Permanent Magnetic Separators

- Function: Use powerful magnets to extract iron-based impurities (e.g., rust, metal fragments) from sand.
- Types:
- Overband Magnets: Suspended over conveyors to capture tramp metal.
- Magnetic Drums: Rotating cylinders that attract and remove ferrous particles from sand streams.
- Importance: Critical for producing high-purity sand for glass or electronics manufacturing.

4.2 Electromagnetic Separators

- Operation: Powered by electricity to generate adjustable magnetic fields, ideal for removing weakly magnetic materials (e.g., hematite).
- Applications: Purifying silica sand for solar panel production.

5. Dewatering Equipment: Reducing Moisture Content

5.1 Dewatering Screens

- Purpose: Remove excess water from sand after washing, producing saleable "dry" sand (moisture <10%).
- Technology: High-frequency vibrations (up to 3,600 RPM) force water through the screen while retaining sand particles.

5.2 Filter Presses

- Working Process: Use pressure to squeeze water from sand, resulting in cake-like material with moisture as low as 15–20%.
- Typical Use: Fine sand recovery in mining tailings or wastewater treatment plants.

5.3 Centrifuges

- Principle: Spin sand-water mixtures at high speeds to separate solids from liquids via centrifugal force.
- Efficiency: Ideal for ultrafine sand (<0.1 mm) dewatering in industrial applications.

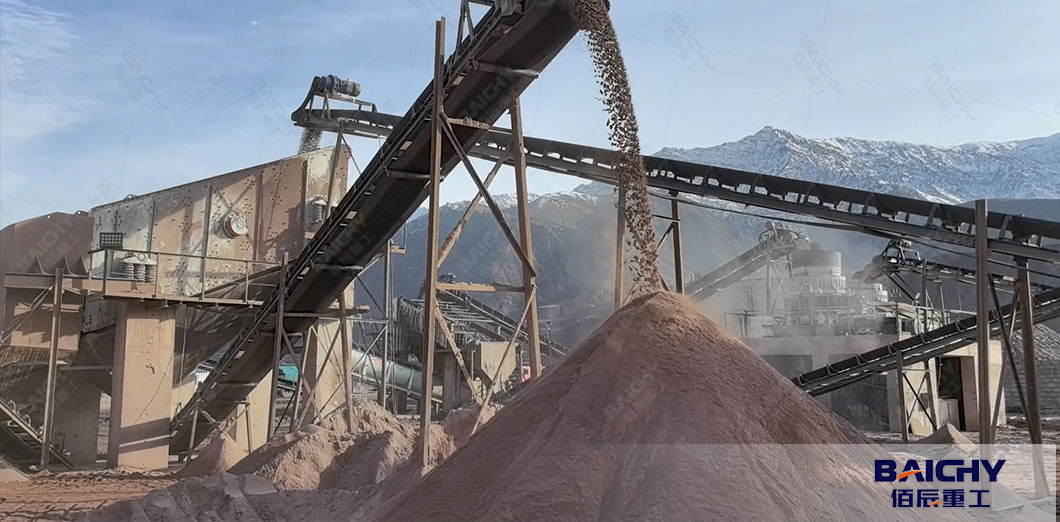

6. Integrated Systems for Complete Processing

Many modern sand plants combine multiple technologies into turnkey solutions. For example:
-Washing Plants: Integrate screens, classifiers, and dewatering units to produce construction-grade sand from raw deposits.
- Recycling Systems: Combine crushers, screens, and magnetic separators to process construction waste into recycled sand.

Efficient sand separation requires a strategic combination of screening, washing, classification, and dewatering equipment tailored to specific material properties and end-use requirements. Whether processing natural deposits, recycling construction waste, or producing specialty sands, selecting the right machinery ensures optimal productivity, quality, and cost-effectiveness. For complex projects, consulting with equipment manufacturers or process engineers can help design a customized solution that maximizes resource recovery and minimizes waste.
