Impact crusher- Baichy Machinery

Product Center / Crushing Equipment / Impact Crusher

Impact crushers use horizontal shafts with rotating blow bars to hurl materials against fixed impact plates or aprons. This impact-based crushing creates minimal fines and produces uniformly shaped, cubical particles.

10-400mmFeed Size
45-315KWMotor Power
10-400t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

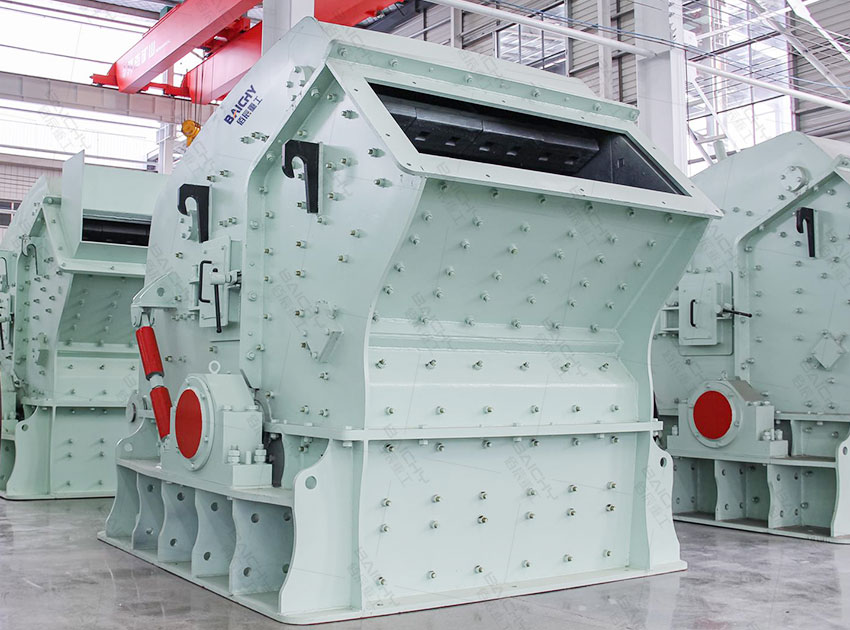

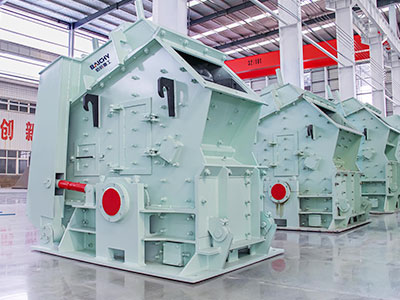

What is PF impact crusher?

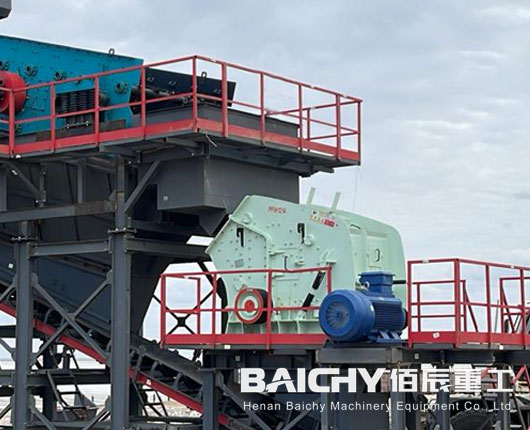

Impact crusher is a type of size reduction machine that uses high-speed impact to break down materials into smaller pieces. It uses horizontal shafts with rotating blow bars to hurl materials against fixed impact plates or aprons. This impact-based crushing creates minimal fines and produces uniformly shaped, cubical particles. It cooperates with jaw crusher in the stone production line. The discharge particle size can be adjusted and the crushing specifications are diversified. Impact crushers are widely used in various ore crushing, railway, highway and construction industry artificial sand and gravel production.

Why choose PF impact crusher?

1. Impact crusher is more effective in processing materials with a large amount of moisture. It can effectively prevent material clogging. The impact crusher does not need to be equipped with a bottom sieve plate to effectively prevent clogging.

2. Impact crusher is suitable for a wider range of material hardness. The blow bar of the impact crusher is firmly fixed on the rotor with a mechanical clamping structure. When it rotates with the rotor, it has greater momentum, which is suitable for crushing harder materials, and at the same time consumes less energy.

3. It is convenient and flexible to adjust the discharge granularity. The impact crusher can adjust the output particle size in various ways, such as adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber, etc. Gap adjustment can be adjusted mechanically or hydraulically.

4. The triple impact plate structure is adopted to increase the number of strikes on the material, hard extrusion, reduce friction, reduce hammer head loss, and prolong the service life of wear-resistant parts.

Get Price List

High Quality

Adopts high chromium plate so that it has shock resistance, abrasion resistance, and big impacting force.The unique crushing mechanism allows for rapid reduction of material size with minimal energy consumption.
Customized Design

Adjustable Particle Size Control. This is typically done by changing the distance between the impact plate and the rotor, allowing operators to produce different grades of aggregate as needed.
Good Performance

High-Quality Cubical Aggregates, big crushing ratio, high-efficiency crushing. Impact crusher is ideal for applications requiring high-quality aggregates such as road construction and concrete production.

Product features

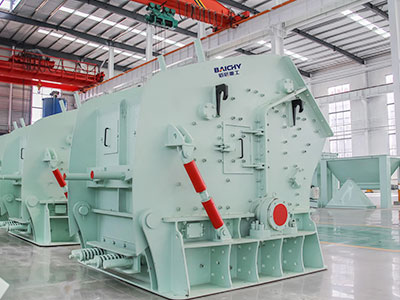

Versatility for Diverse Materials. Impact crusher can handle a wide range of materials, including abrasive and non-abrasive types, soft and medium-hard materials like limestone, gypsum, and coal.

Working principle

Impact crusher is a kind of stone crusher using impact force.

When impact crushing machine works, the motor drives the rotor rotate at a high speed. When the material gets into the blow bar working area, they will be stroke by the blow bar and thrown to the impact devices around the rotor. The material will come out from the discharge hole until they are crushed to the required size.

The materials from large to small all to be crushed at the impact chamber repeatedly. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Specification

Model	Rotor size D*L(mm)	Feeder opening size(mm)	Max feeding size(mm)	Capacity (t/h)	Power (kw)
PF-1007	Φ1000X700	450X730	250	10-60	45
PF-1010	Φ1000X1050	400X1080	300	50-90	55
PF-1210	Φ1250X1050	450X1150	400	70-130	90
PFW-1210	Φ1250×1050	450x1150	400	75-140	90
PFW-1214	Φ1250X1400	480X1500	430	100-180	132

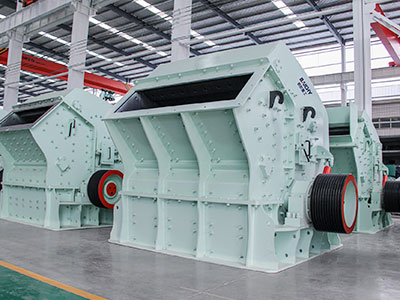

PFW-1315	Φ1320X1500	860X1520	500	130-220	200
PFW-1320	Φ1320X2000	900X2000	500	160-350	250
PFW-1515	Φ1500×1500	930x1550	600	200-400	280
PFW-1520	Φ1512X2000	930X2040	700	300-450	355
PFW-1820	Φ1800X2000	1620X2040	700	500-800	2X315
