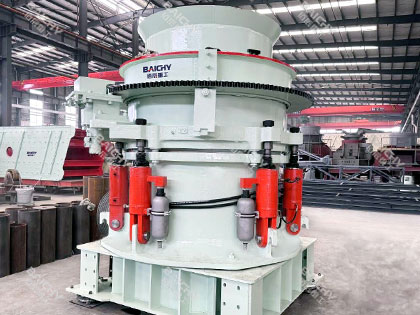

HPC Hydraulic cone crusher- Baichy Machinery

Product Center / Crushing Equipment / HPC Cone Crusher

Multi-cylinder hydraulic cone crusher are characterized by robust design and high performance with integrated crushing speed, stroke and crushing chamber perfectly. It is ideal stone crusher in aggregates production to meet coarse and fine crushing requir

≤240mmFeed Size
75-375KWMotor Power
45-600t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is HP cone crusher?

Hydraulic cone crusher is a medium and fine crushing machine. It adopts hydraulic system to adjust the discharge opening and is used to protect the cone crusher from overload. The shape design of cone crushing chamber is more scientific, and the hydraulic and lubrication systems are double-safety controlled. HP cone crusher can be widely used in mines and gravel aggregate industries, suitable for crushing various materials with medium hardness or above. Such as iron ore, non-ferrous metals, granite, limestone, quartz, sandstone, river pebbles and other ores and rocks.

Why choose HP cone crusher?

1. The multi-cylinder hydraulic cone crusher is equipped with a hydraulic motor, which can automatically adjust the mine opening, and automatically remove the fixed cone and the movable cone.

2. If the multi-cylinder hydraulic cone crusher stops under load, the hydraulic cavity cleaning system can quickly clean the crushing cavity, greatly reducing the downtime.

3. The special thin oil lubrication system design of the multi-cylinder hydraulic cone crusher improves the lubrication performance of the equipment and prolongs the service life of the equipment.

4. The special crushing chamber designed by the principle of intergranular lamination and the matching speed can realize selective crushing of materials, and the crushing particle size is uniform.

Get Price List

High Quality

Laminated crushing brings good product shape. It improves the quality of finished product and decreases the cost of equipment and whole system.
Customized Design

Higher crushing efficiency with optimized crushing chamber. Several standard crushing chambers are available for each model.
Good Performance

The cylinder with hydraulic system provides overload and non-broken material protection. It saves the time of maintenance and decreases the operation cost.

Product features

Integrated hydraulic lubricating system with compact structure, small volume, saving installation space, reducing fuel consumption.

Working principle

Cone crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner.

The whole working process of HPC multi-cylinder hydraulic cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, squeezing or compressing the materials continuously. The material is crushed from all directions, crushed and grinded according to their own grain, which formed the high compressive strength building aggregates. The materials are small enough to fall through the narrow opening at the bottom of the crusher.

Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point

Specification

Model	Cavity Type	Feed Openning Size(mm)	Max Feeding Size (mm)	Min Discharge Opening (mm)	Capacity (t/h)	Power (kw)
HP100	Extra Coarse - EC	140	110	19	65-140	90
	Coarse - C	100	75	13	50-110
	Medium - M	70	50	9	45-100
	Fine - F	50	35	9	40-95
	Extra Fine - EF	20	10	6	35-90

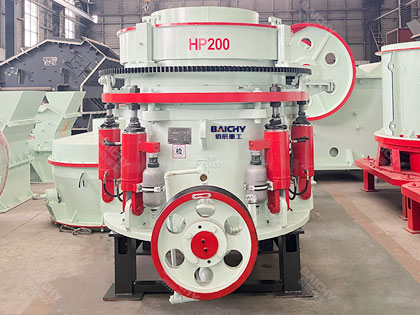

HP200	Extra Coarse - EC	185	145	19	145-250	160
	Coarse - C	125	100	16	135-235
	Medium - M	95	75	13	115-220
	Fine - F	75	60	10	90-190
	Extra Fine - EF	54	45	12	81-190
HP300	Extra Coarse - EC	234	190	25	220-445	220
	Coarse - C	211	170	20	190-380
	Medium - M	150	120	16	175-320
	Fine - F	107	85	14	145-280
	Extra Fine - EF	53	40	12	110-240
HP400	Extra Coarse - EC	295	240	30	300-630	315
	Coarse - C	251	200	25	285-560
	Medium Coarse - MC	196	160	20	250-490
	Fine - F	110	90	13	180-345
	Extra Fine - EF	90	75	10	135-320
HP500	Extra Coarse - EC	330	270	38	425-795	400
	Coarse - C	290	230	30	370-700
	Medium Coarse - MC	210	165	22	330-605
	Fine - F	135	105	16	270-535
	Extra Fine - EF	95	75	13	220-430
HP800	Extra Coarse - EC	350	280	38	570-1200	630
	Coarse - C	299	240	32	520-1050
	Medium Coarse - MC	265	214	25	475-950
	Fine - F	220	175	16	370-800
	Extra Fine - EF	150	125	13	310-600
